Cade Reef S3 2200

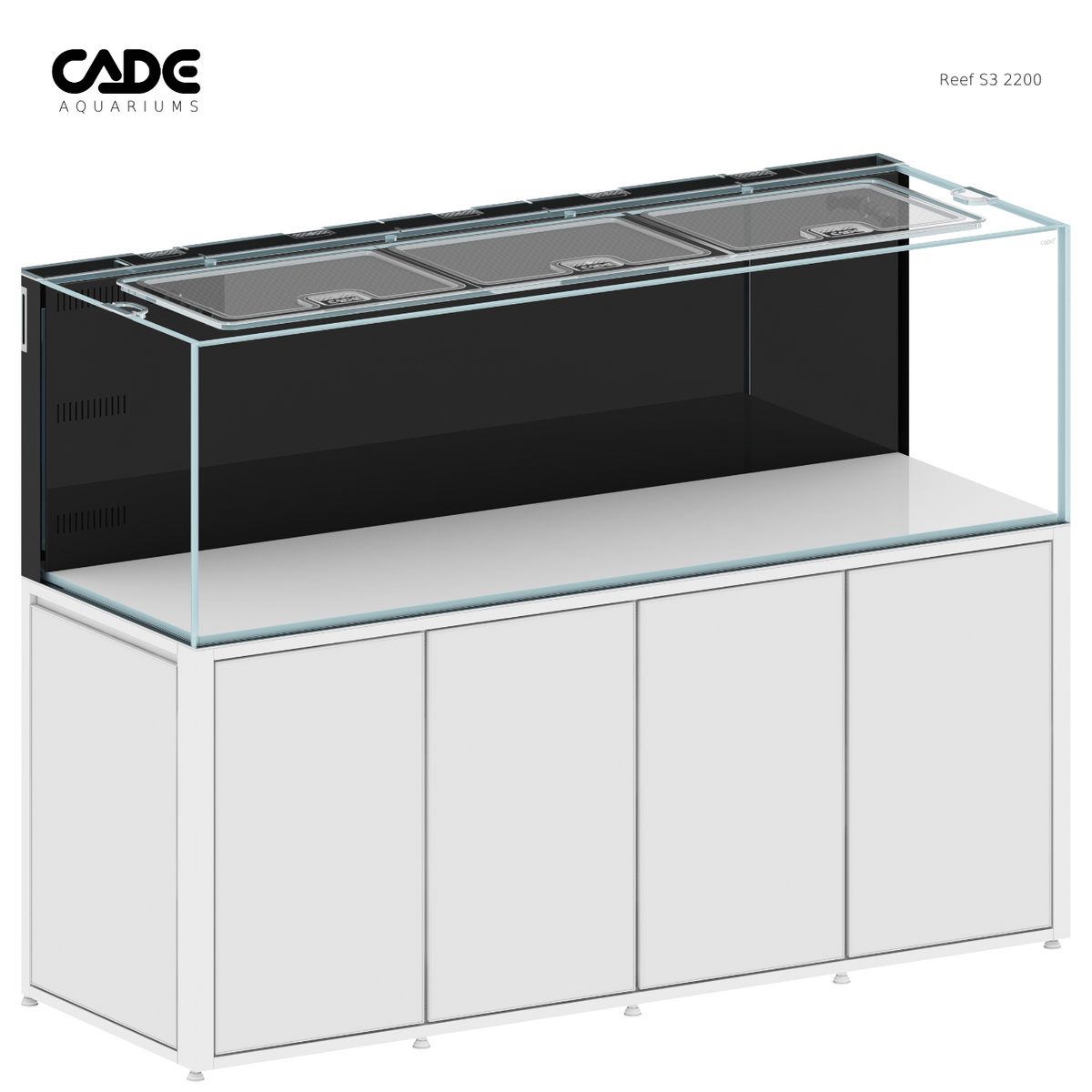

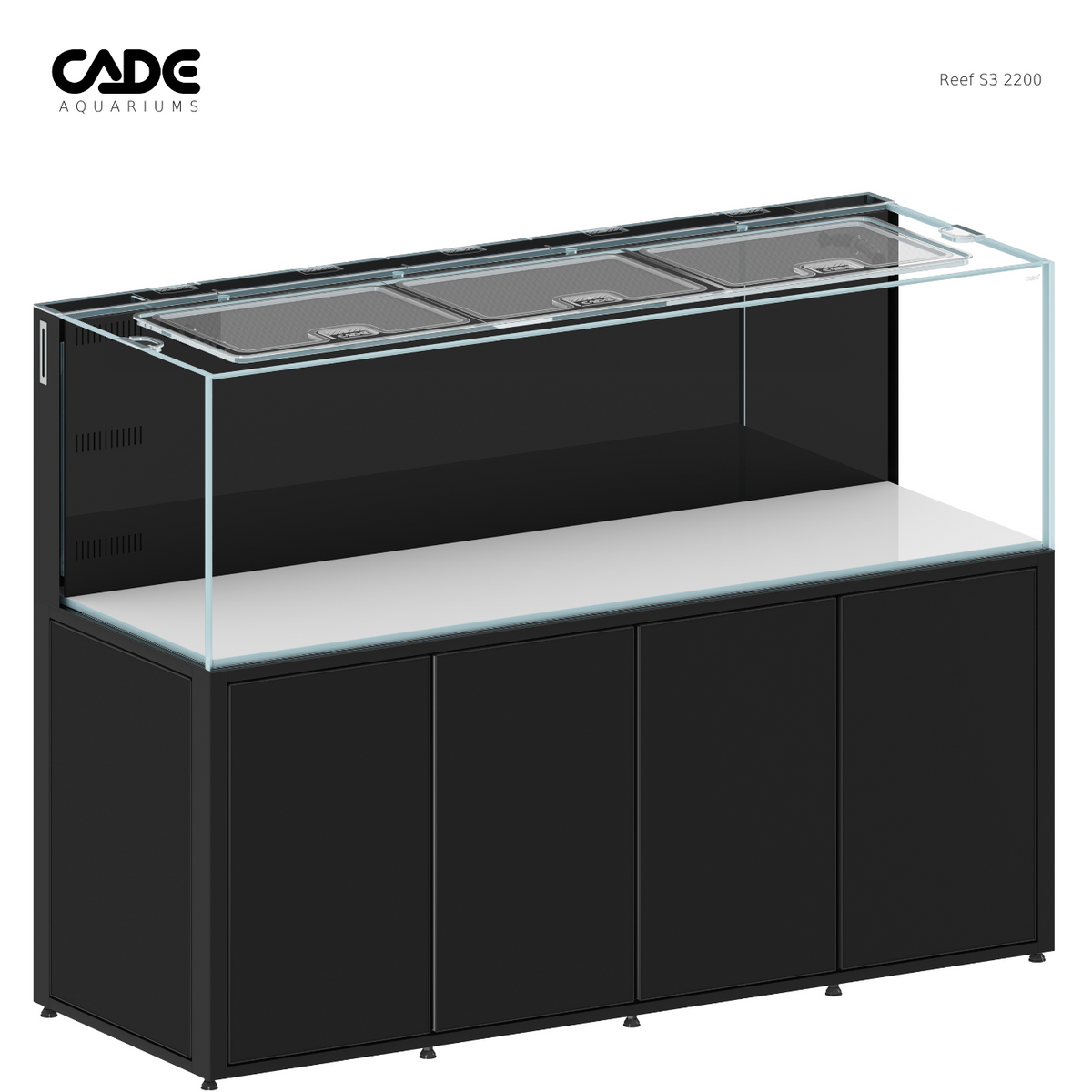

The CADE Reef S3 2200 is the 2200 mm model of CADE's third-generation classic rimless reef system: an Opti-Clear low-iron display of 950 L on a full aluminium cabinet, delivered with the tinted-glass sump installed and the plumbing already fitted. 1,225 L of water in the whole system.

Tank

• Opti-Clear low-iron glass, rimless, bonded with German Wacker silicone applied by robot
• Concealed slimline weir with three inlets (surface, mid and low) so a blocked inlet never stops the flow
• Polycarbonate jump guards over the display, weir and ATO reservoir
• 19 mm glass, tank 2200 × 800 × 660 mm external
• Gravity-fed 125 L ATO reservoir built into the weir compartment (ATO device not supplied)
• Euro-braced with a single water-jet-cut brace

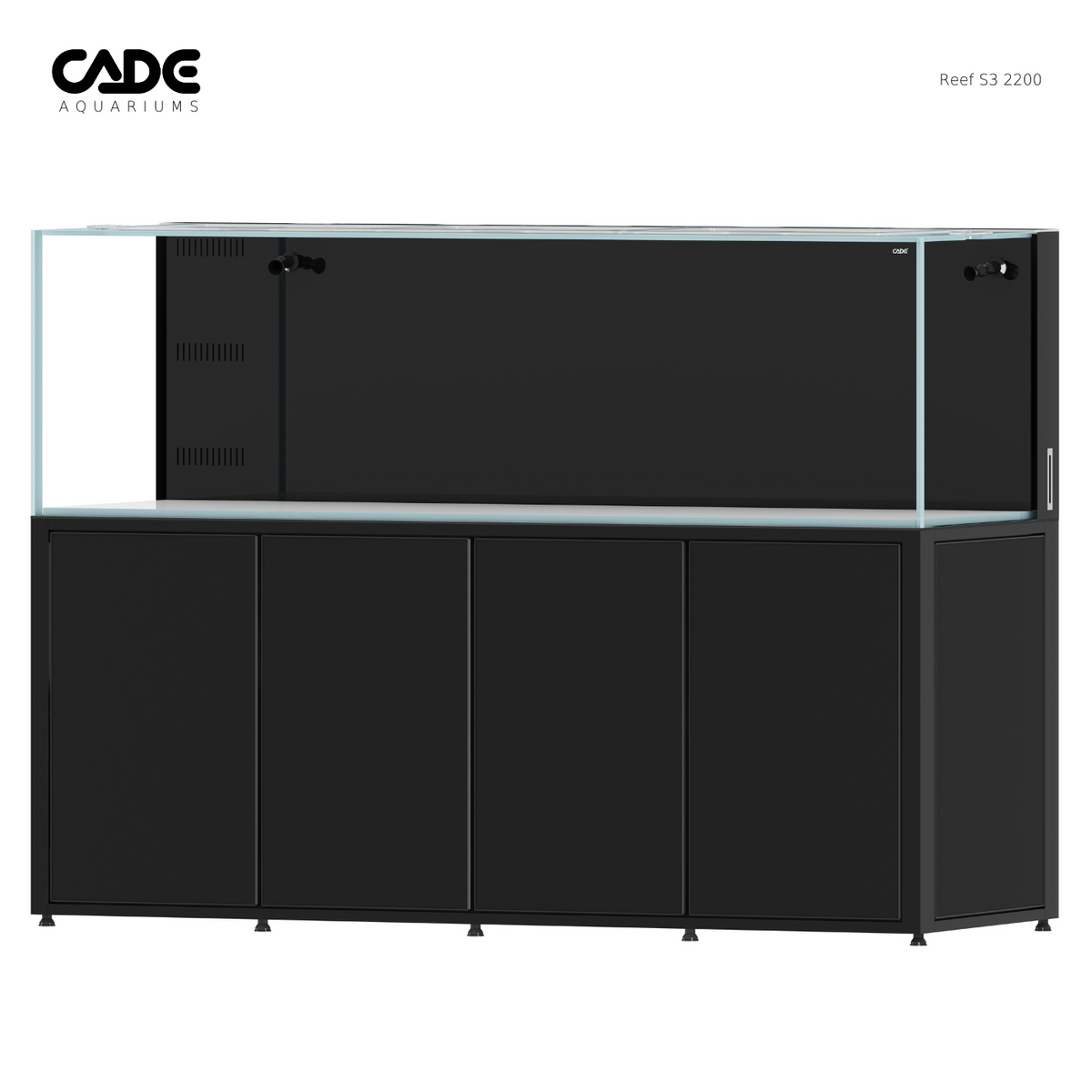

• Rear and side light-mount provisions, and cable feed vents for rear-mounted wave makers

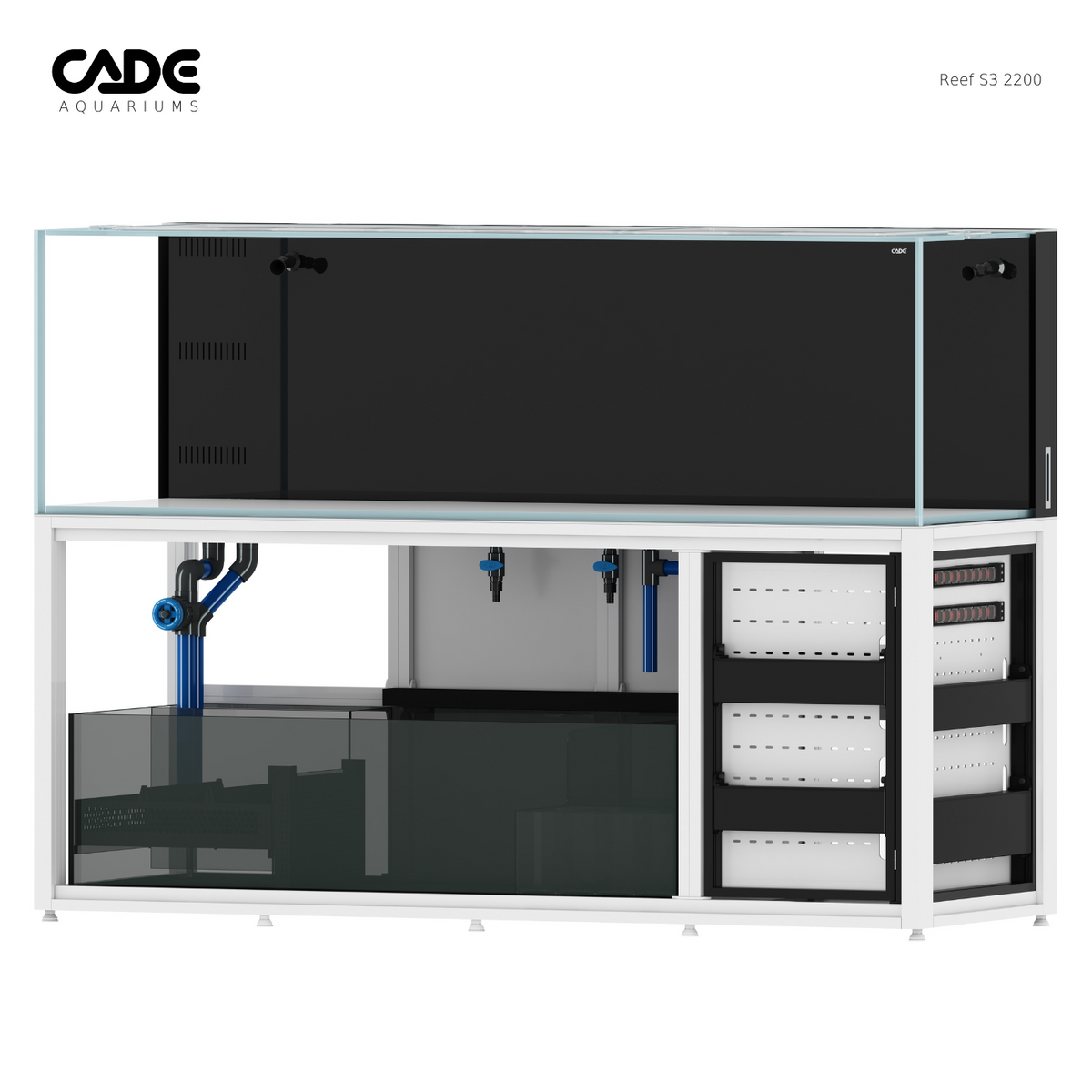

Cabinet

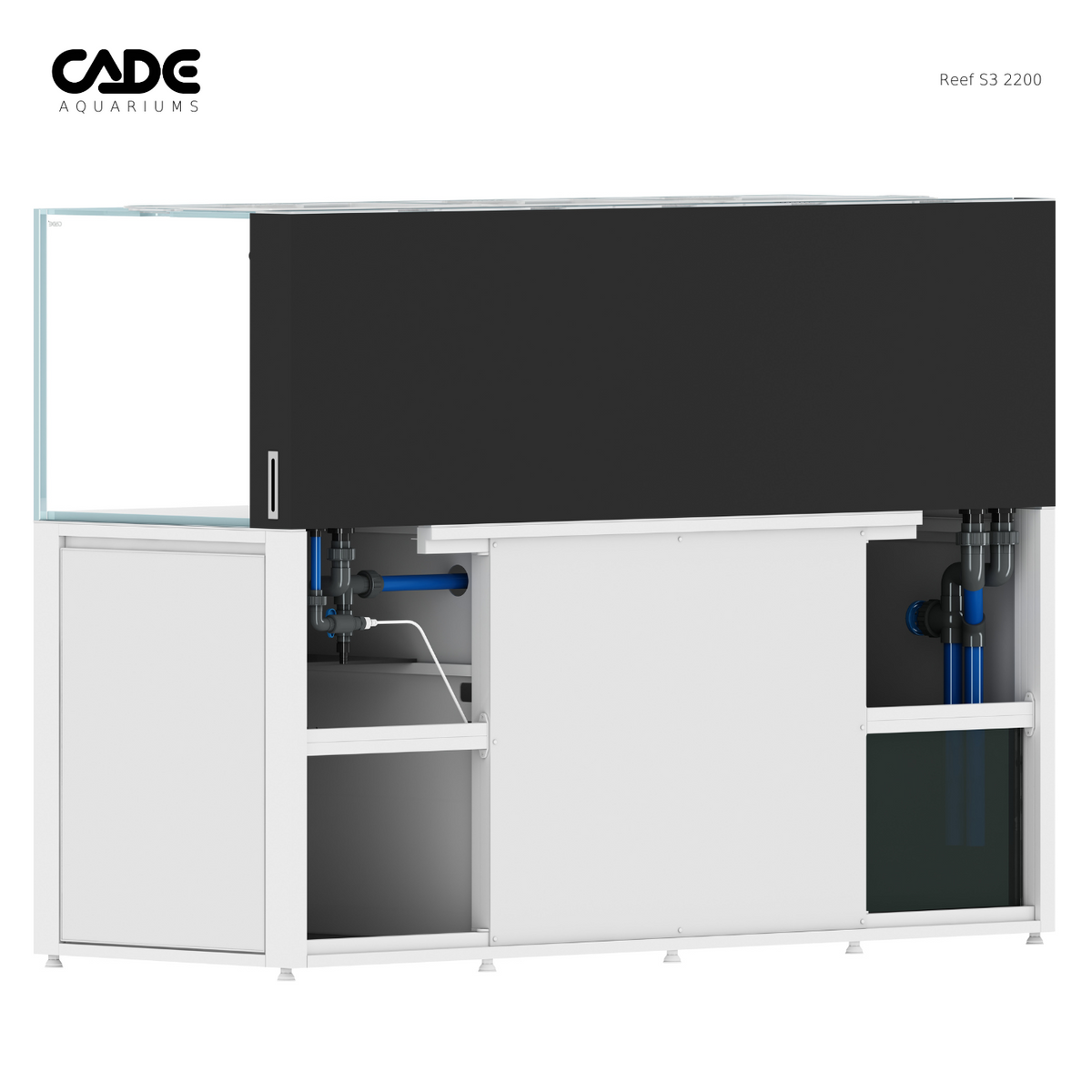

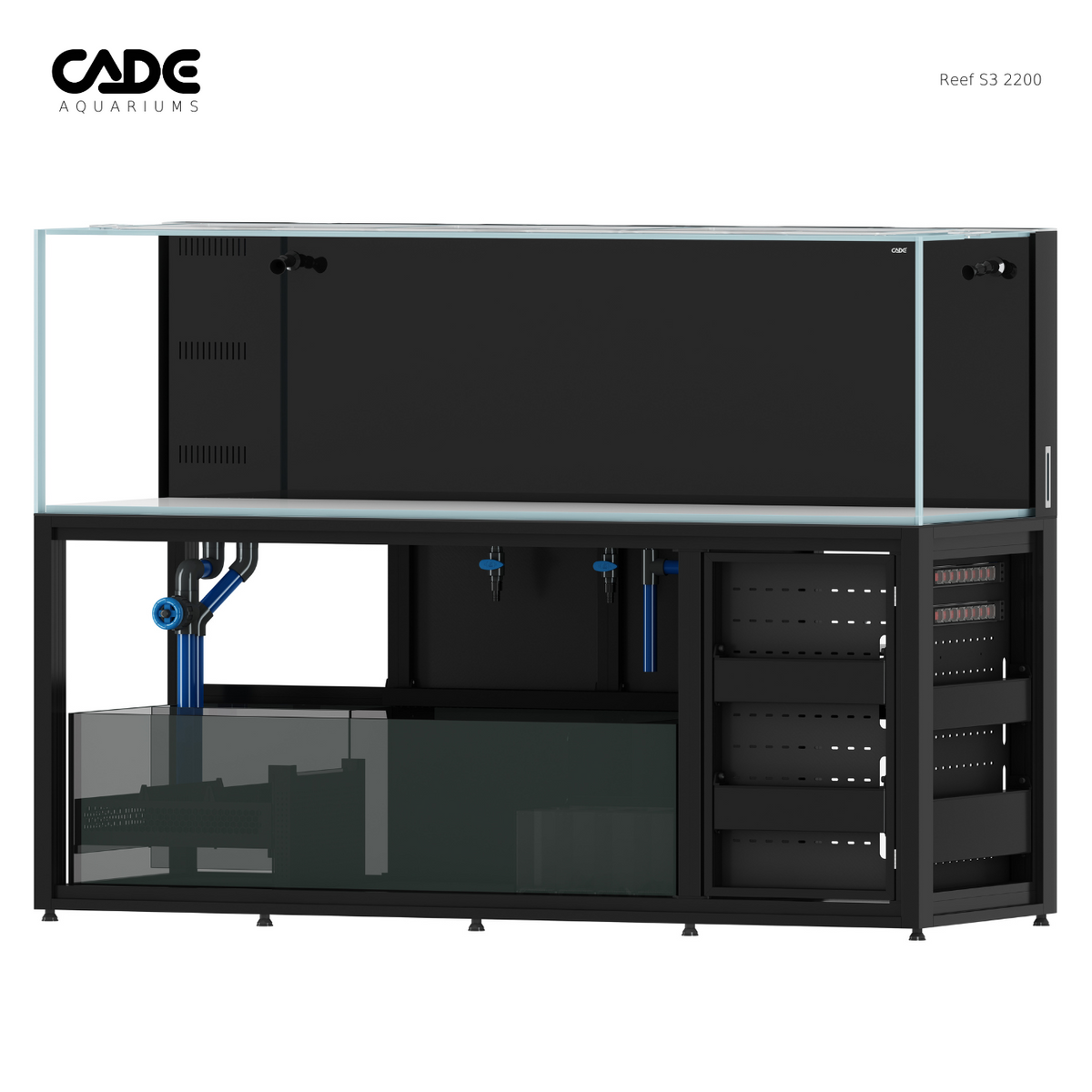

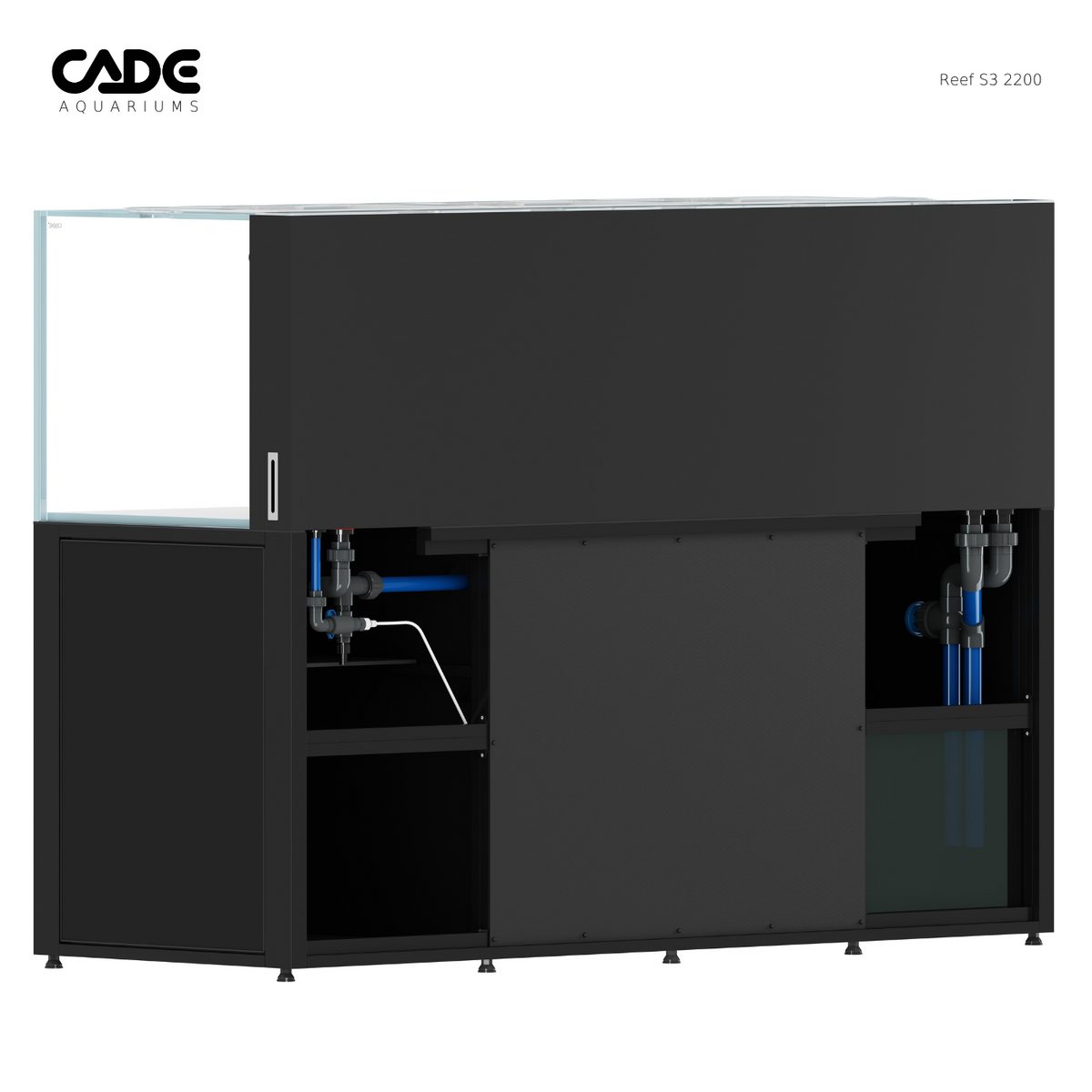

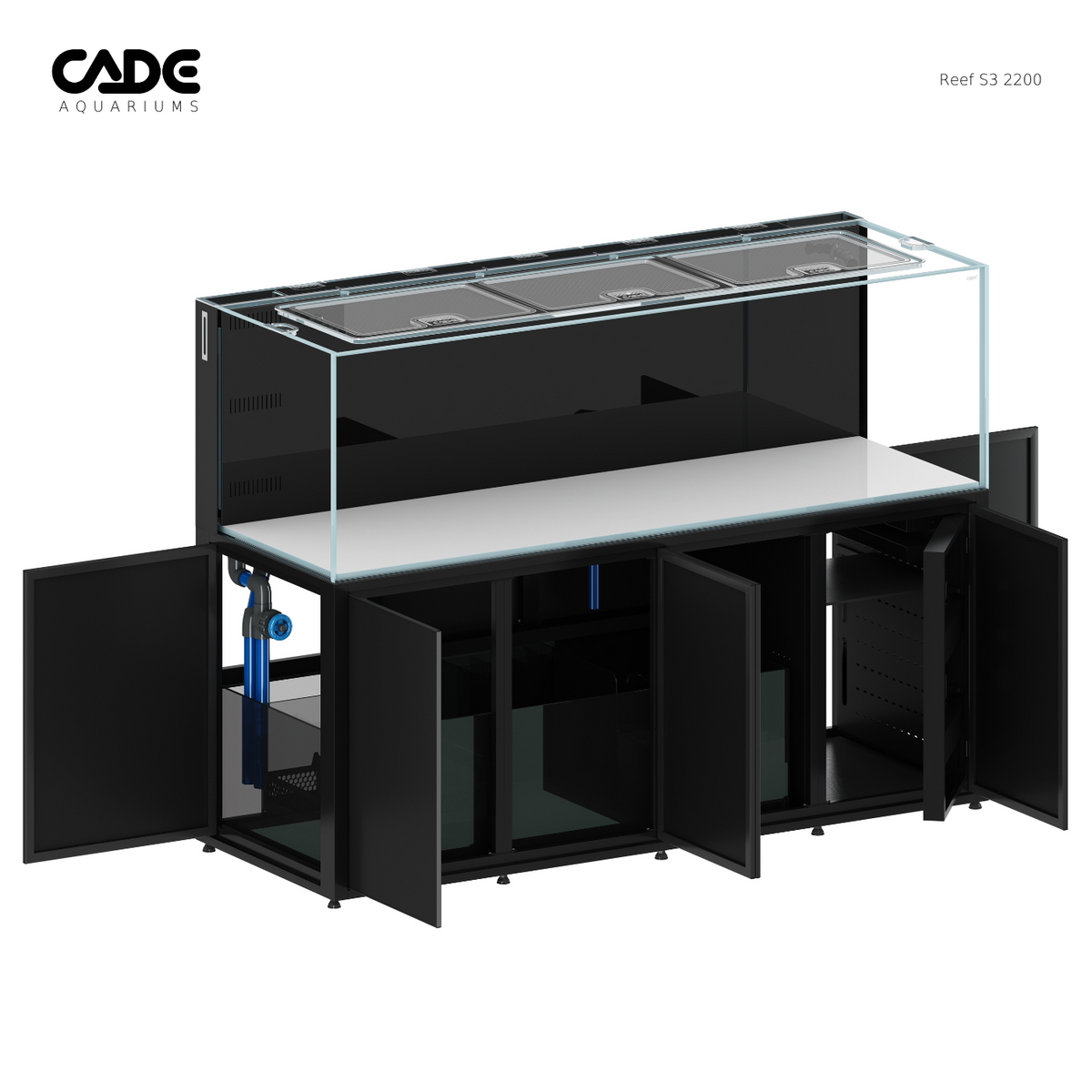

• Powder-coated aluminium cabinet, 100% waterproof and corrosion-proof, delivered assembled with the sump already inside

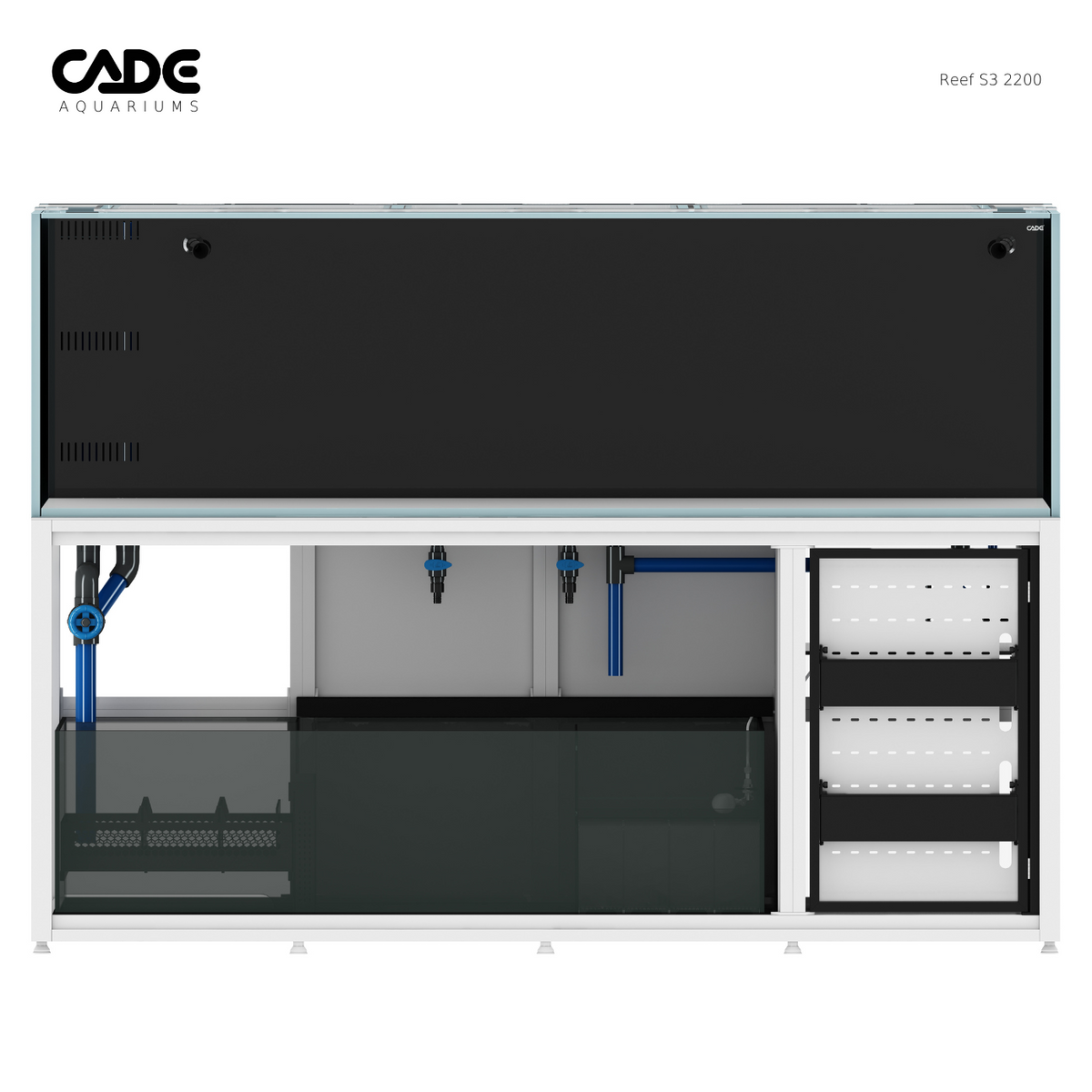

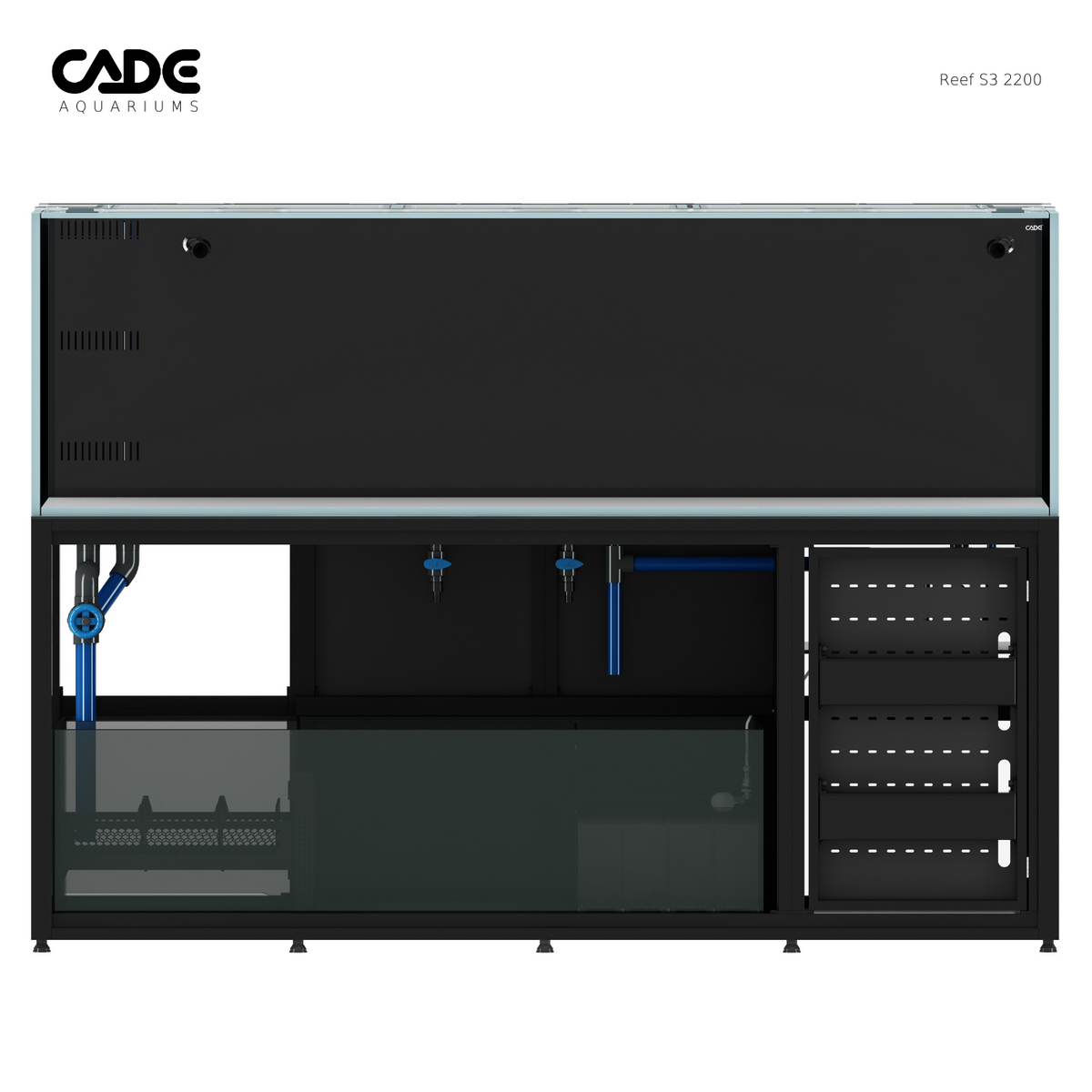

• Device display panel and 16-socket switched power board behind the doors
• Cable management, accessories shelf and dry space for a chiller or dosing gear
• Foam tank mat and adjustable levelling feet

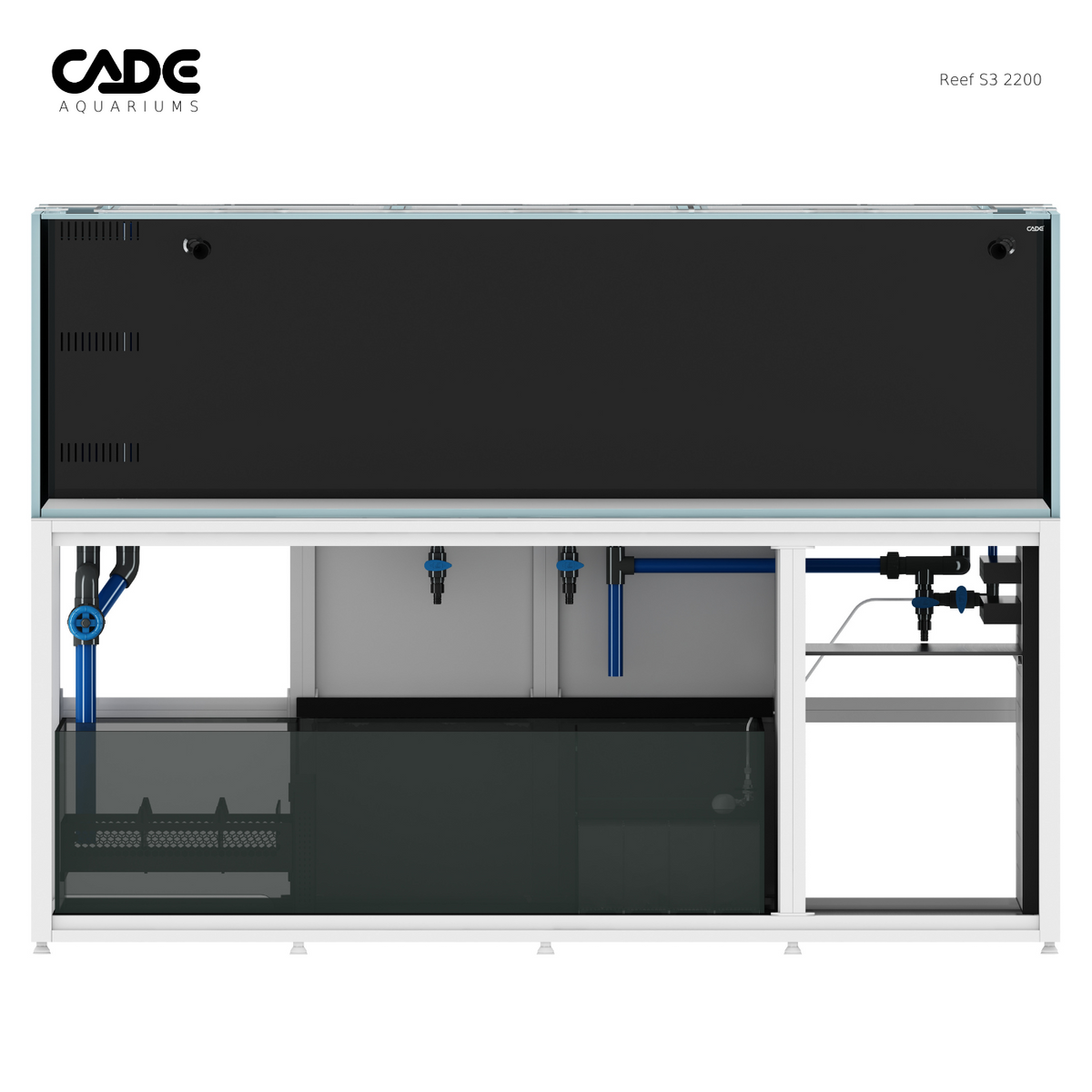

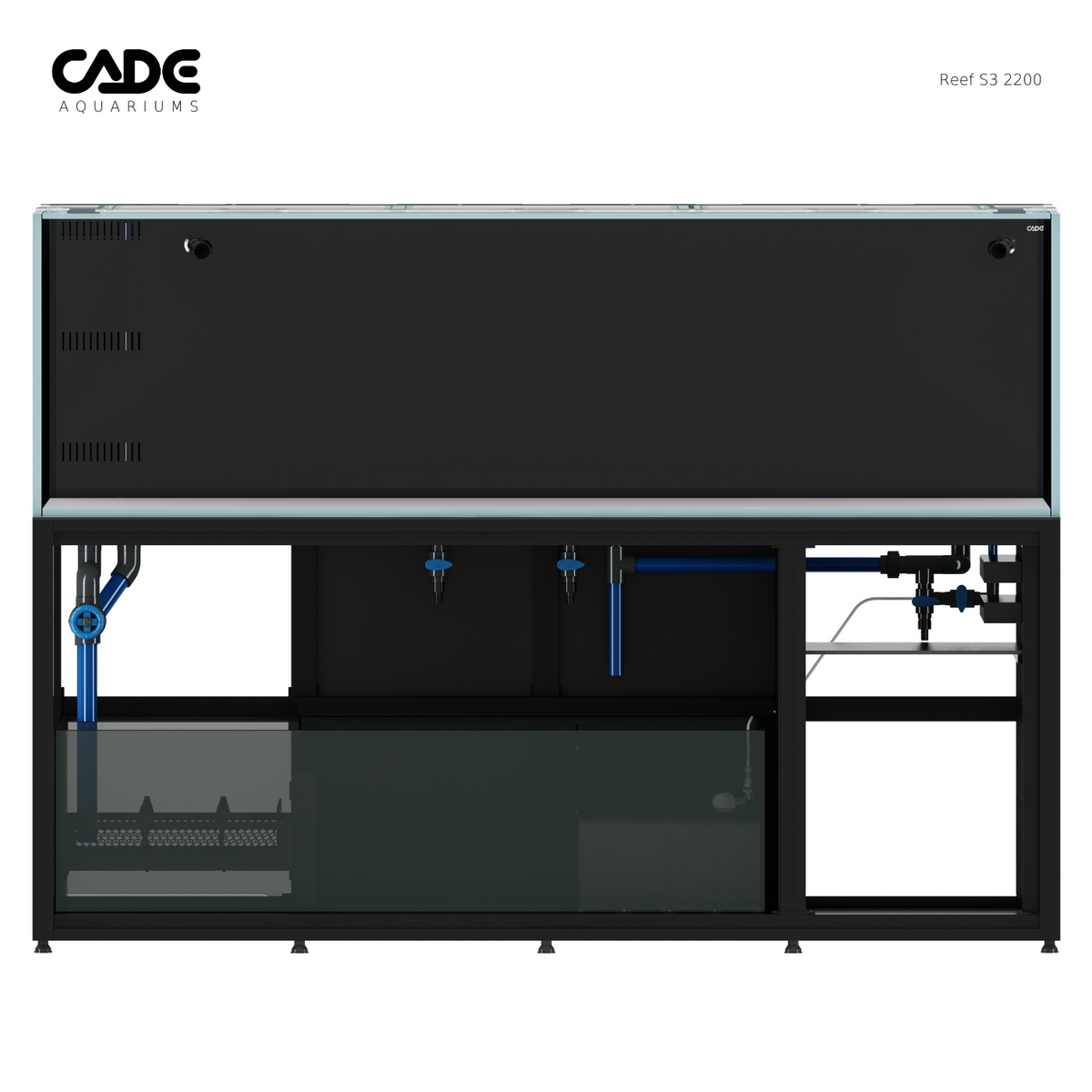

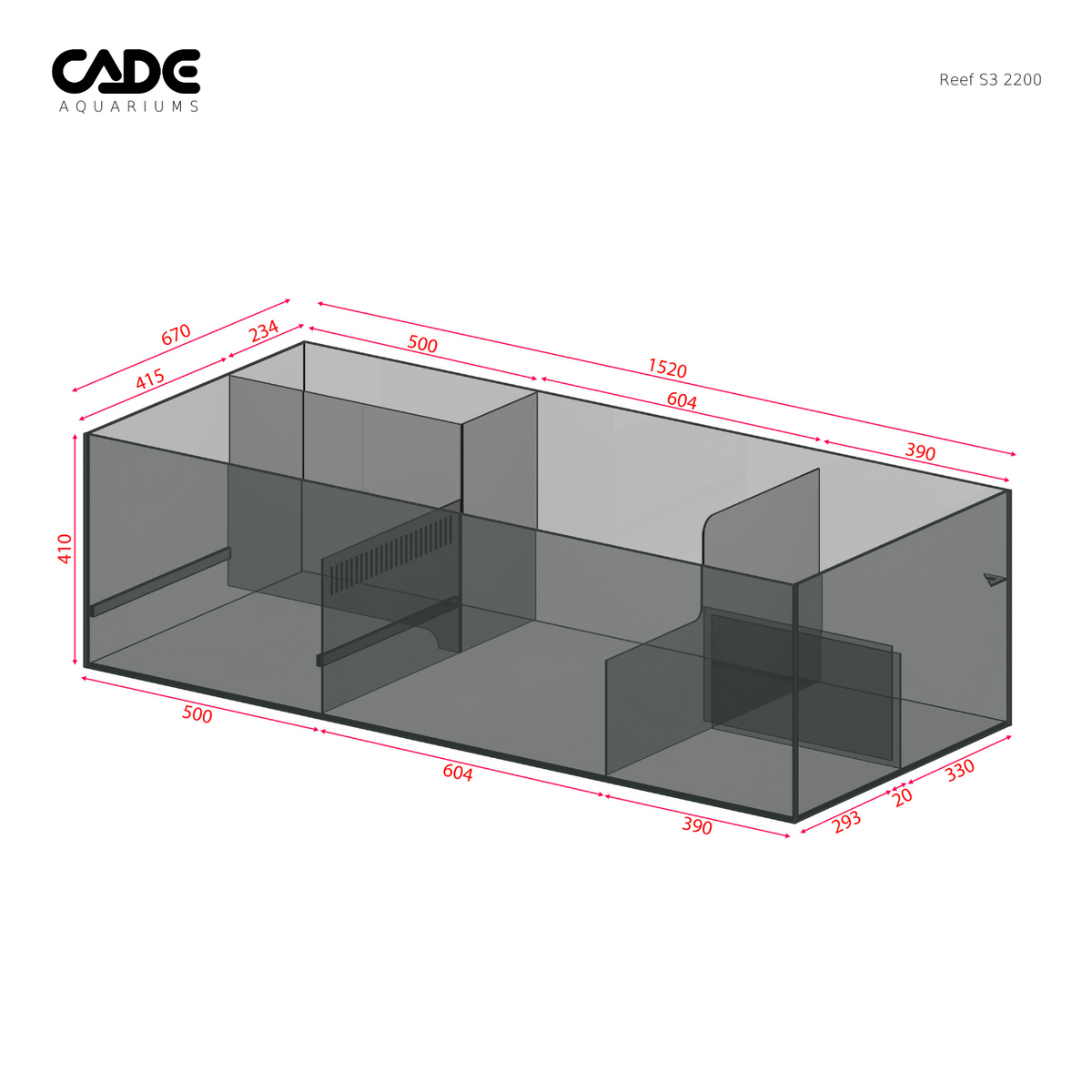

Sump and filtration

• Tinted-glass sump, roller-mat ready (no filter socks)
• Triton tray that doubles as a frag rack
• Protein skimmer and reactor chamber, biological and chemical media chamber with removable baskets, and a return pump chamber with the ATO float valve

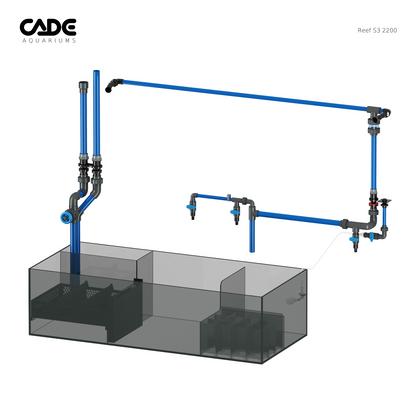

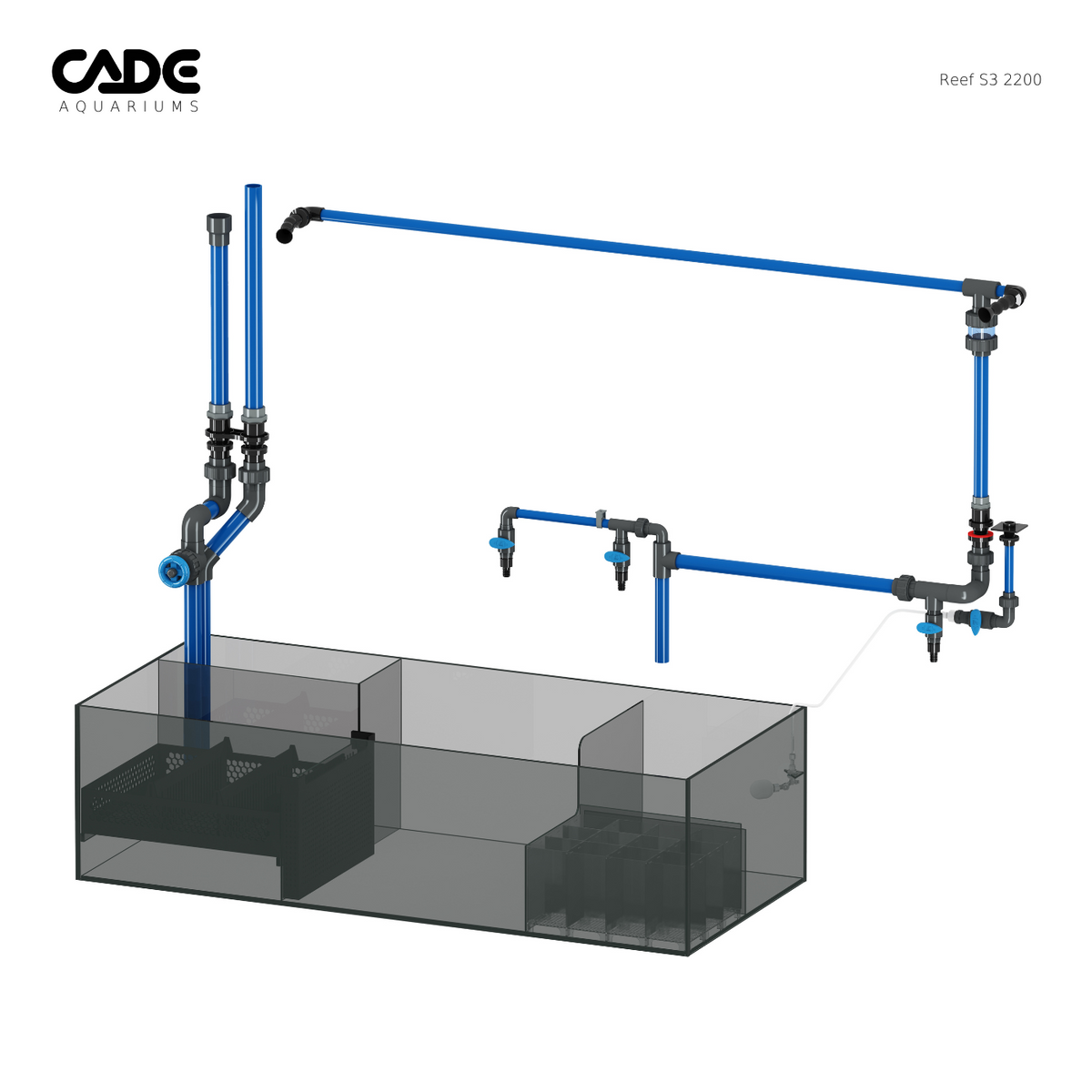

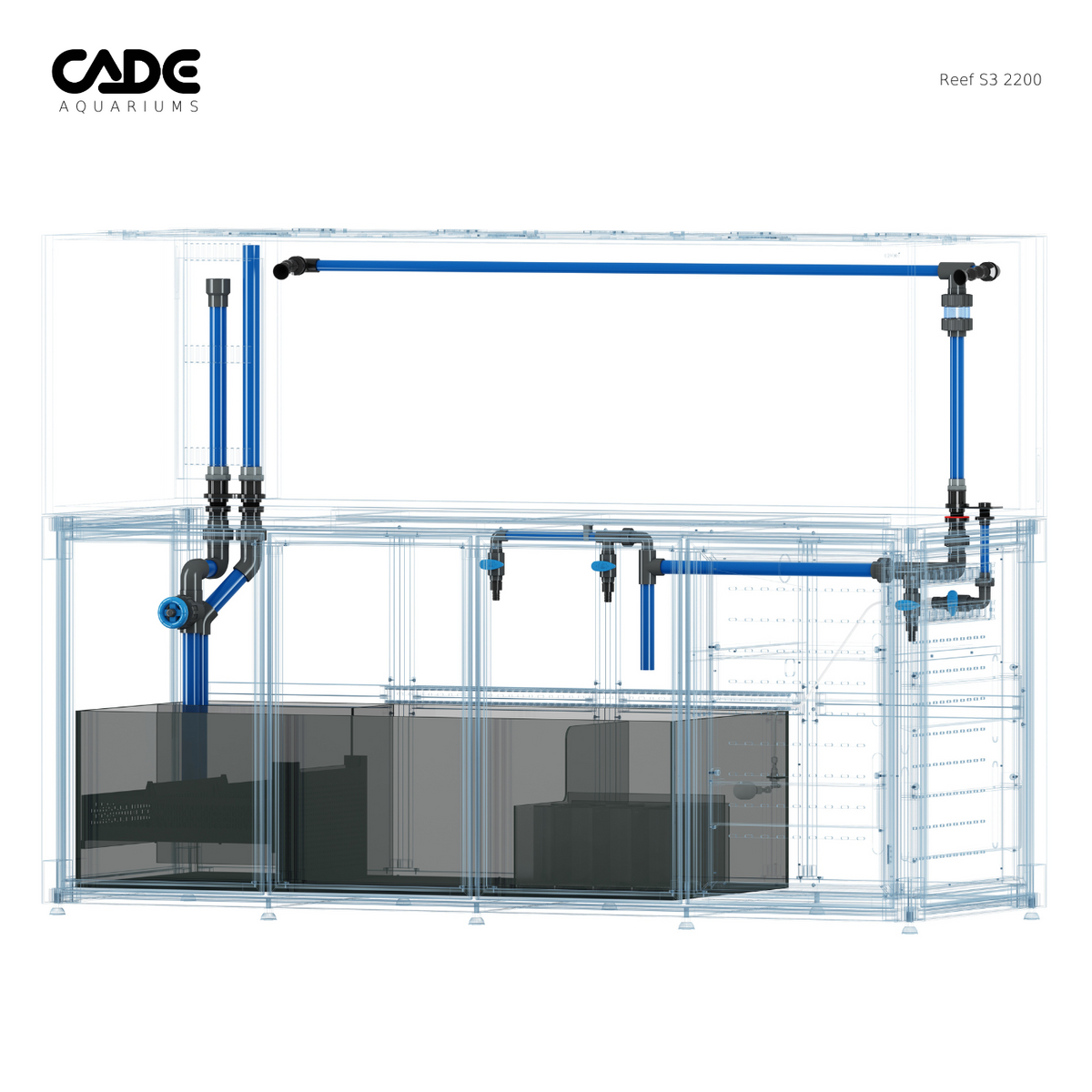

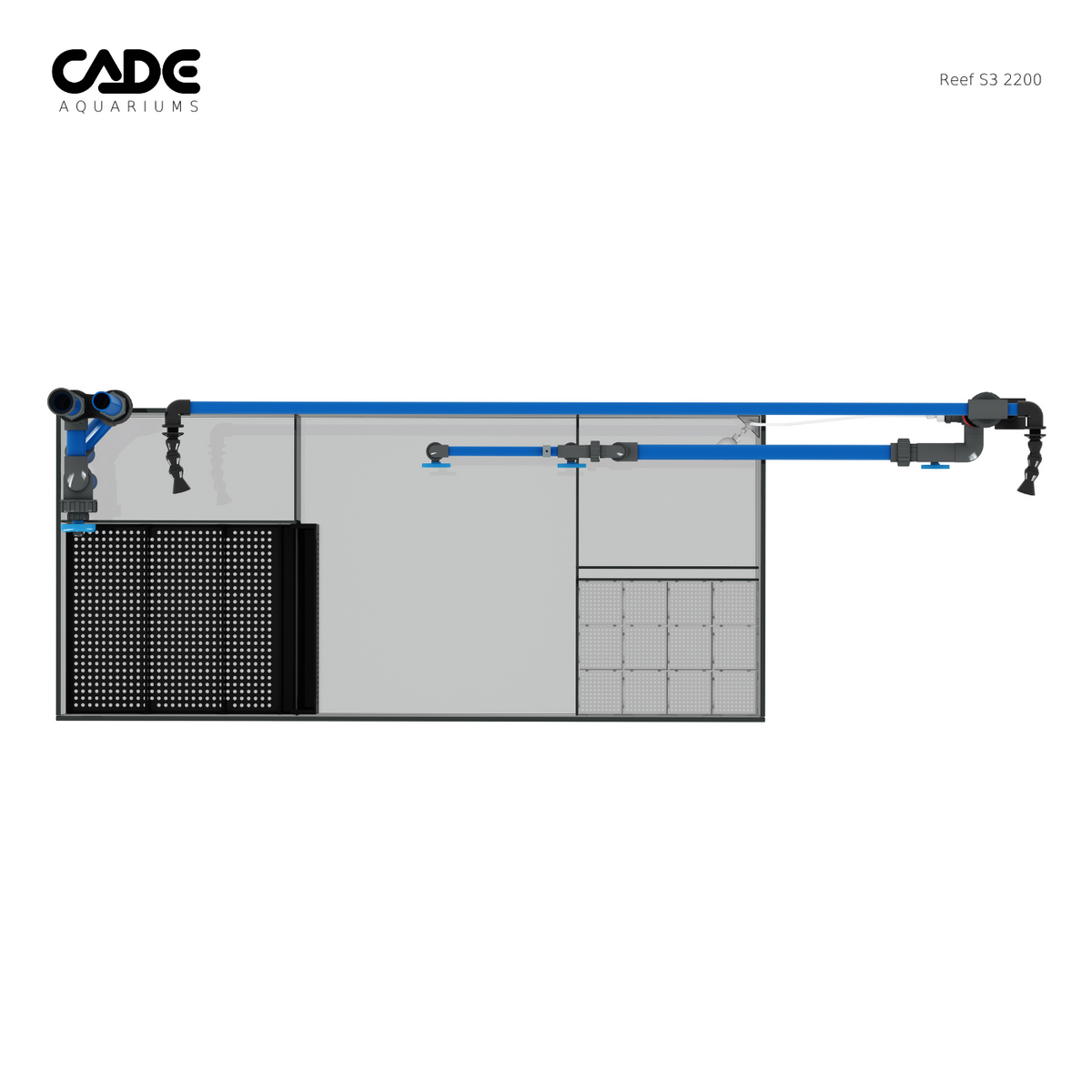

Plumbing

• Pre-installed quick-fit Flowcolour plumbing
• Dual down-flow pipes (main and emergency) with fine-tune gate valve
• Return line with non-return valve and directional nozzles
• Three 17 mm reactor and chiller feed outlets

Specifications

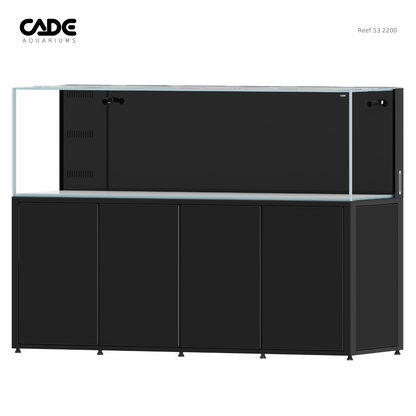

Colours and what is not included

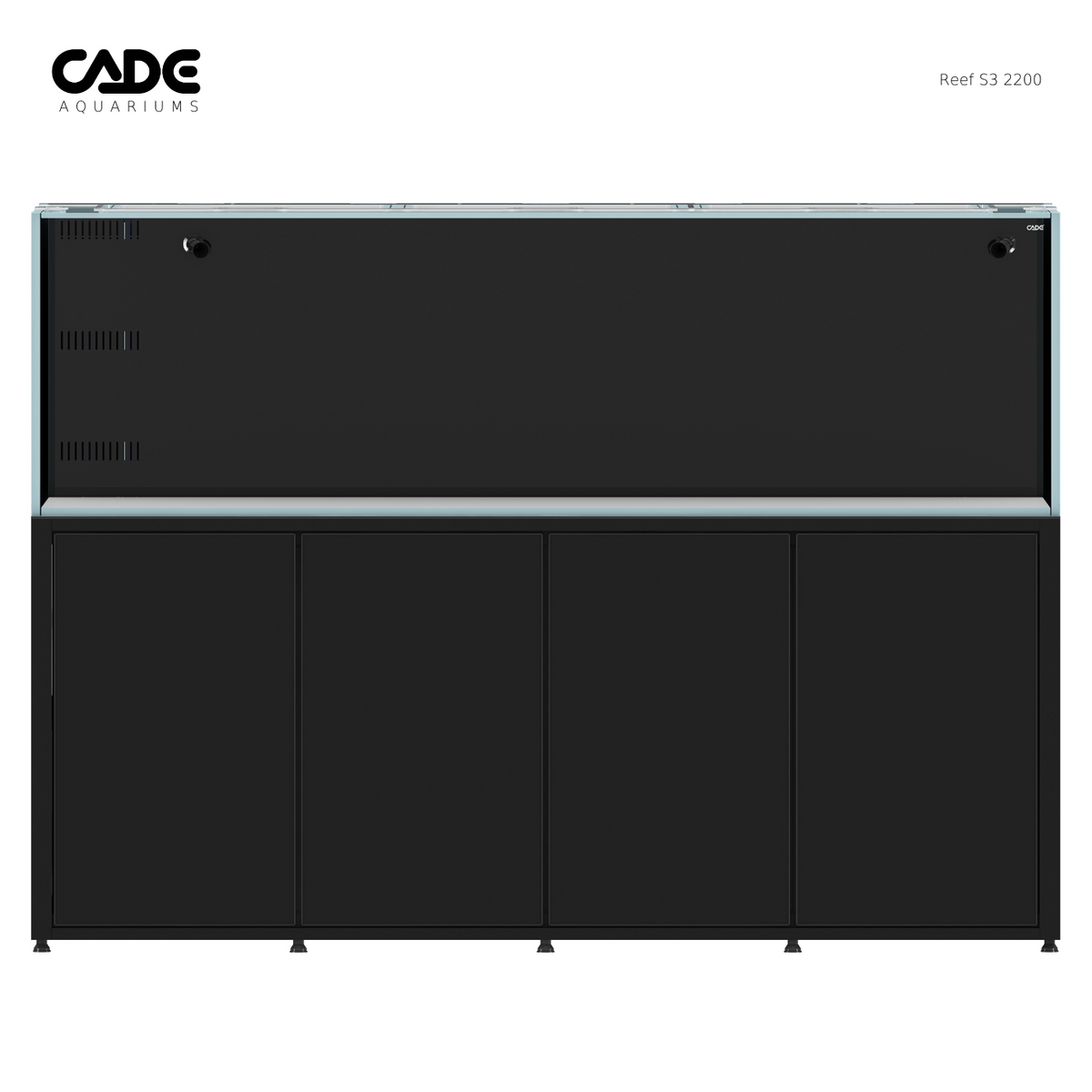

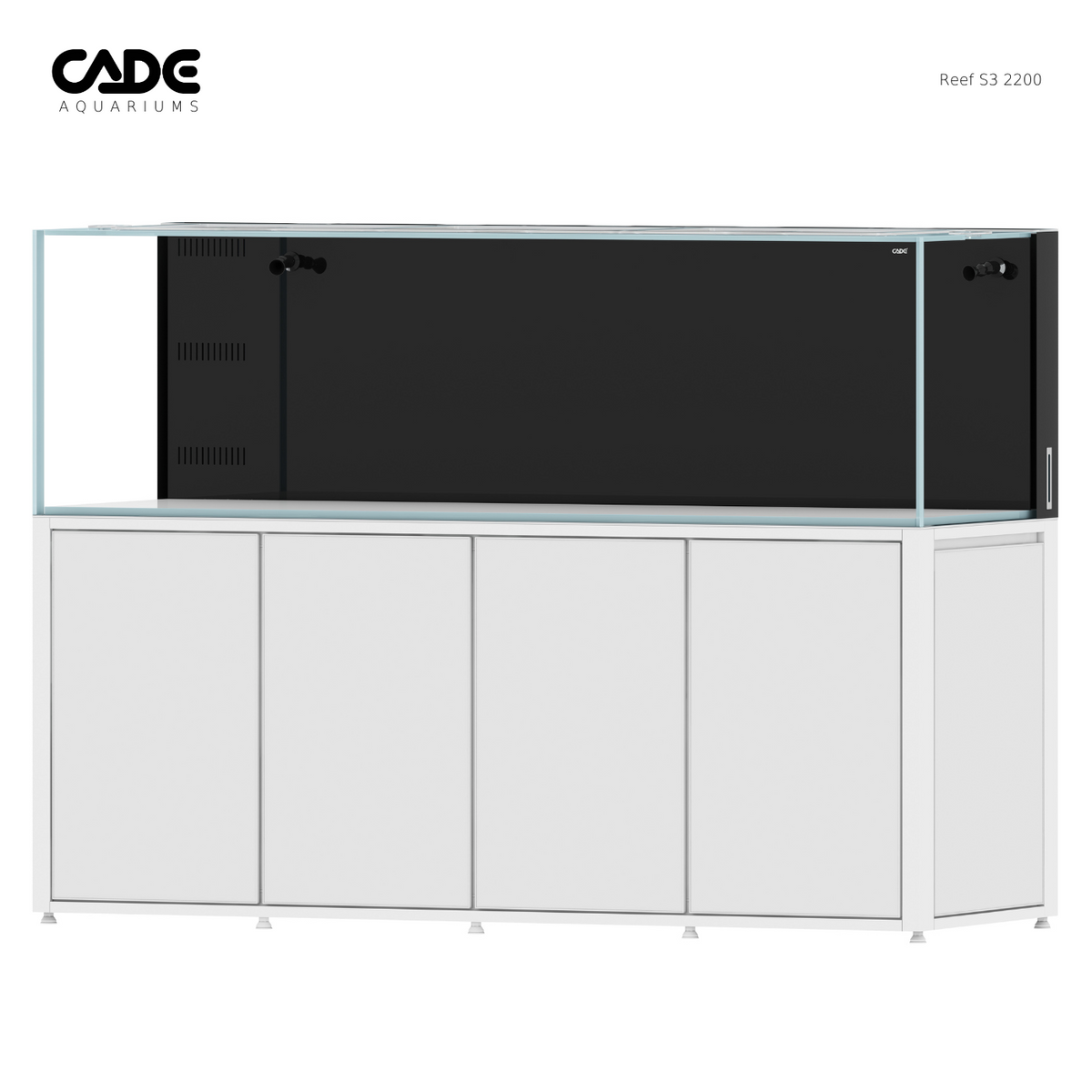

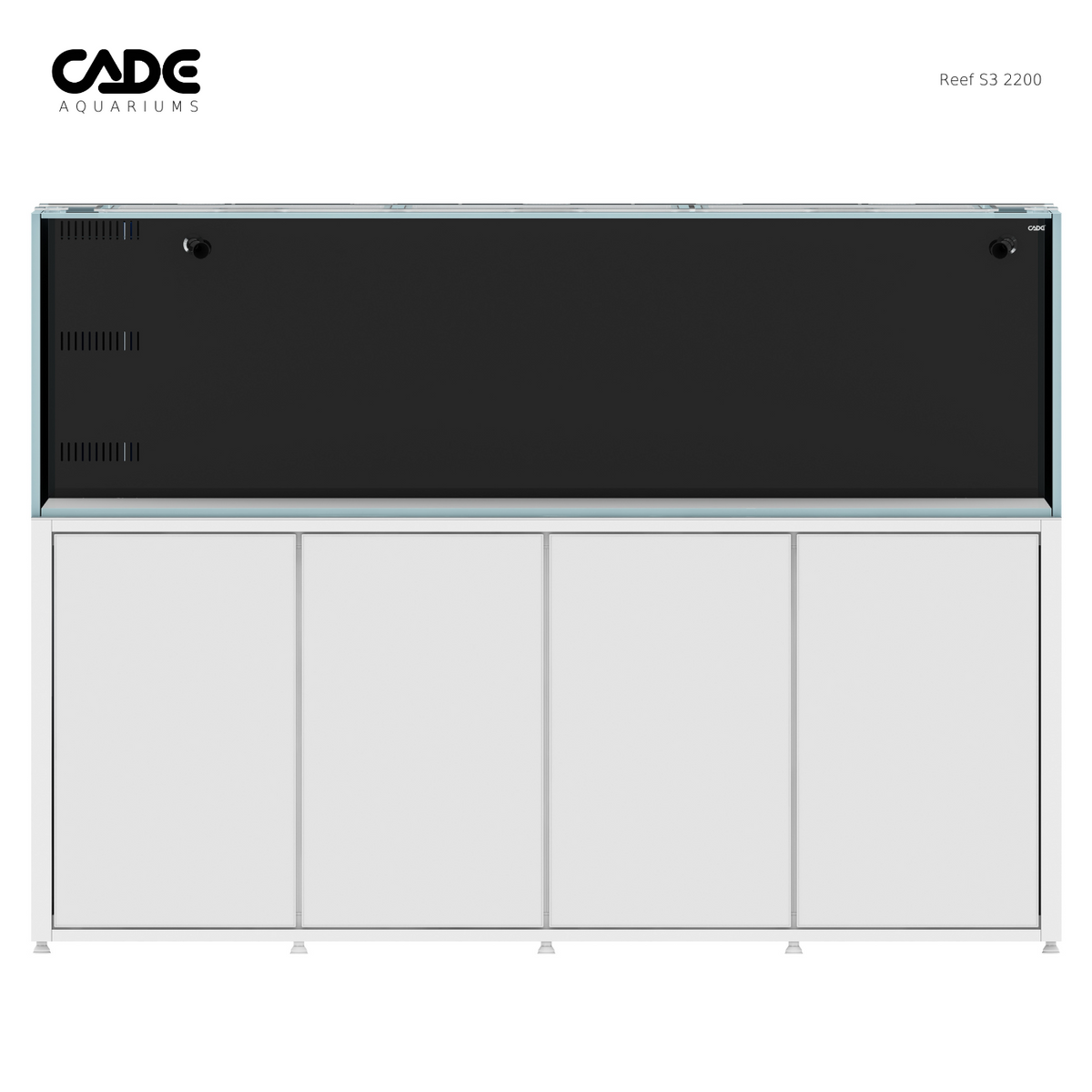

Available in black or white — choose the colour above. Return pump, protein skimmer, lighting and ATO device are not supplied.
