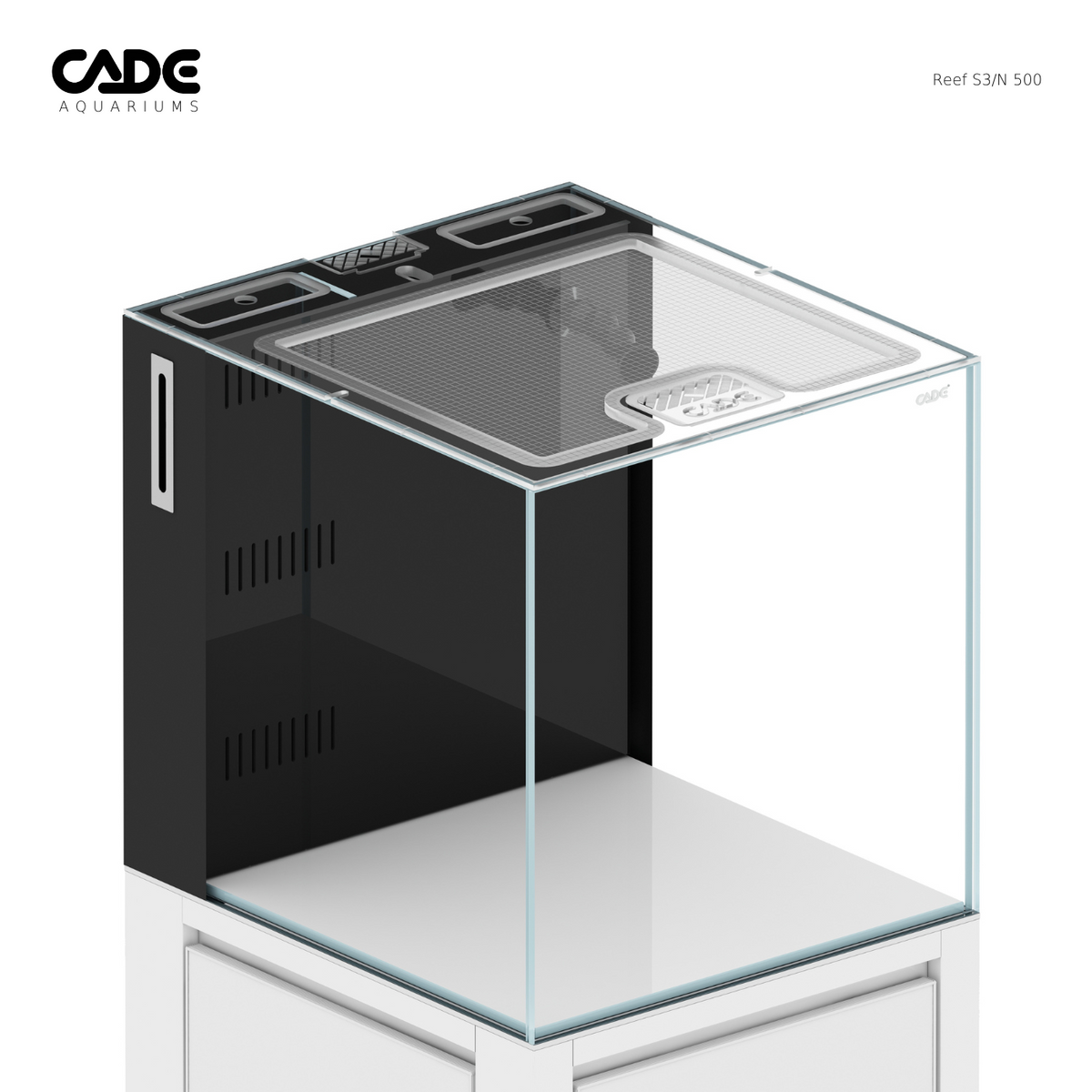

Cade Reef S3/N 500 Nano

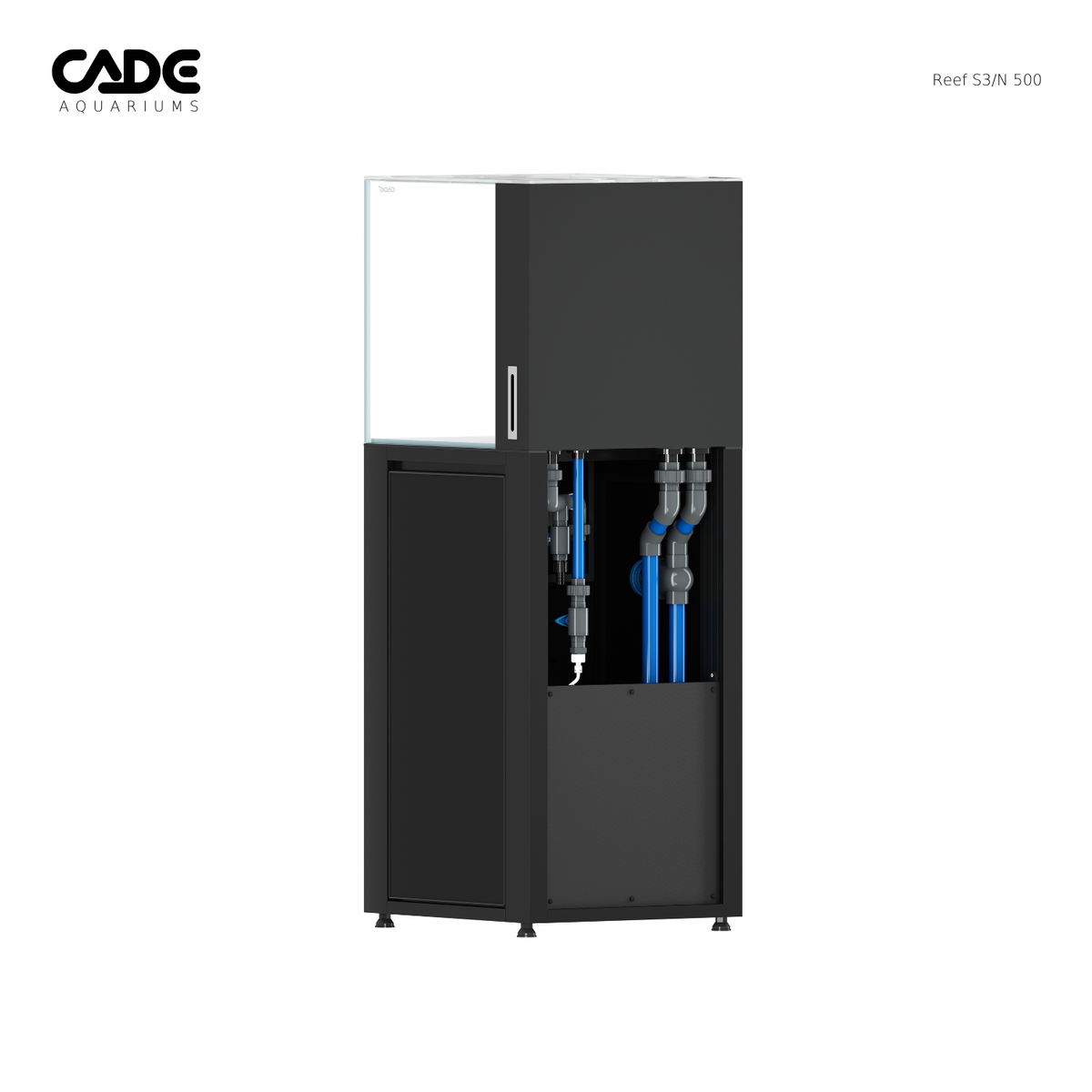

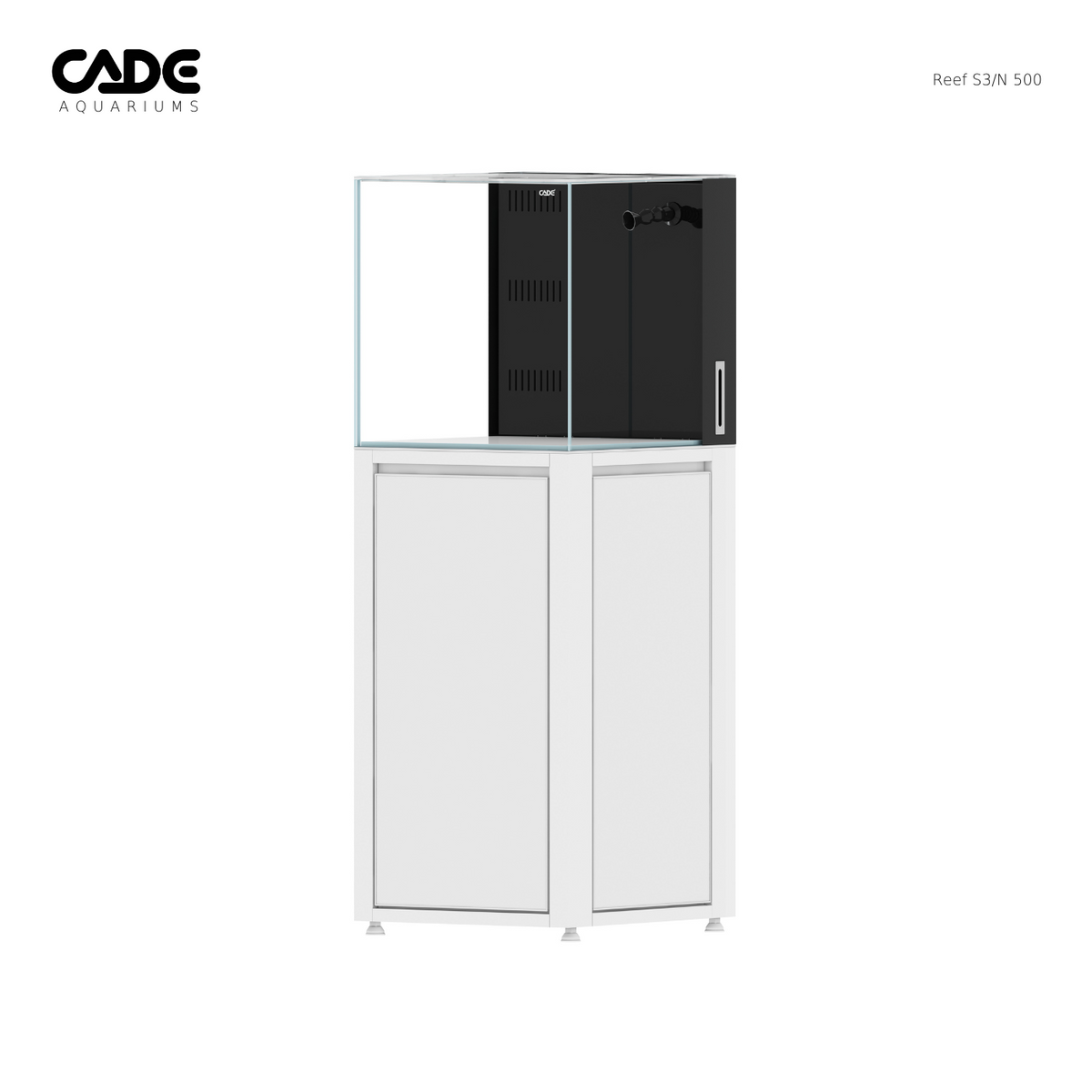

The CADE Reef S3/N 500 Professional Nano is the smallest S3: a 500 mm rimless Opti-Clear display of 115 L with the same concealed weir, tinted-glass sump and quick-fit plumbing as the big S3 tanks, on a 900 mm aluminium cabinet delivered assembled with the sump installed. 146 L of water in the whole system.

Tank

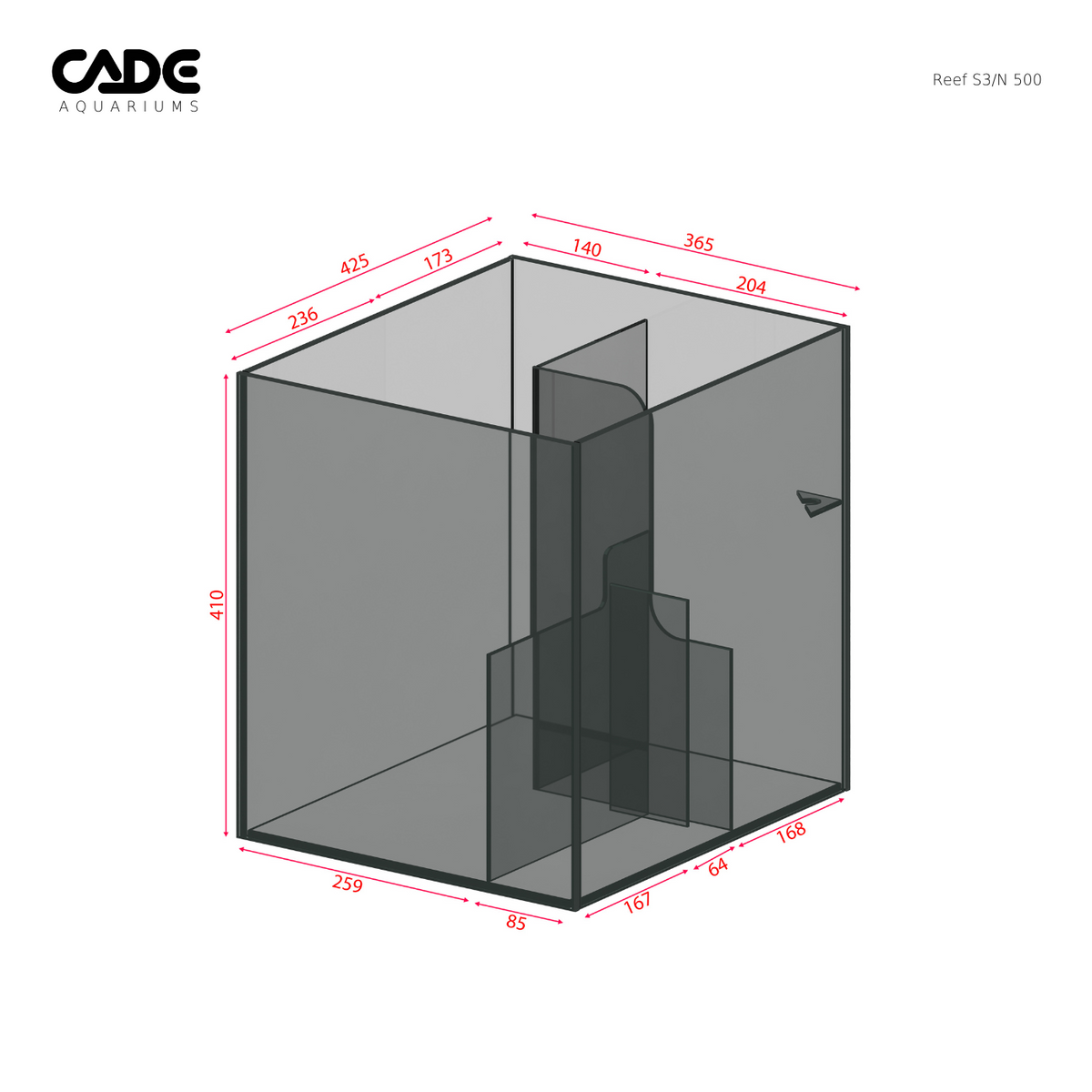

• Tank 500 × 560 × 500 mm external (500 × 470 × 500 mm internal), 8 mm Opti-Clear low-iron glass, rimless
• Concealed slimline weir with three inlets (surface, mid and low) so a blocked inlet never stops the flow
• Gravity-fed 10 L ATO reservoir in the weir compartment (ATO device not supplied)

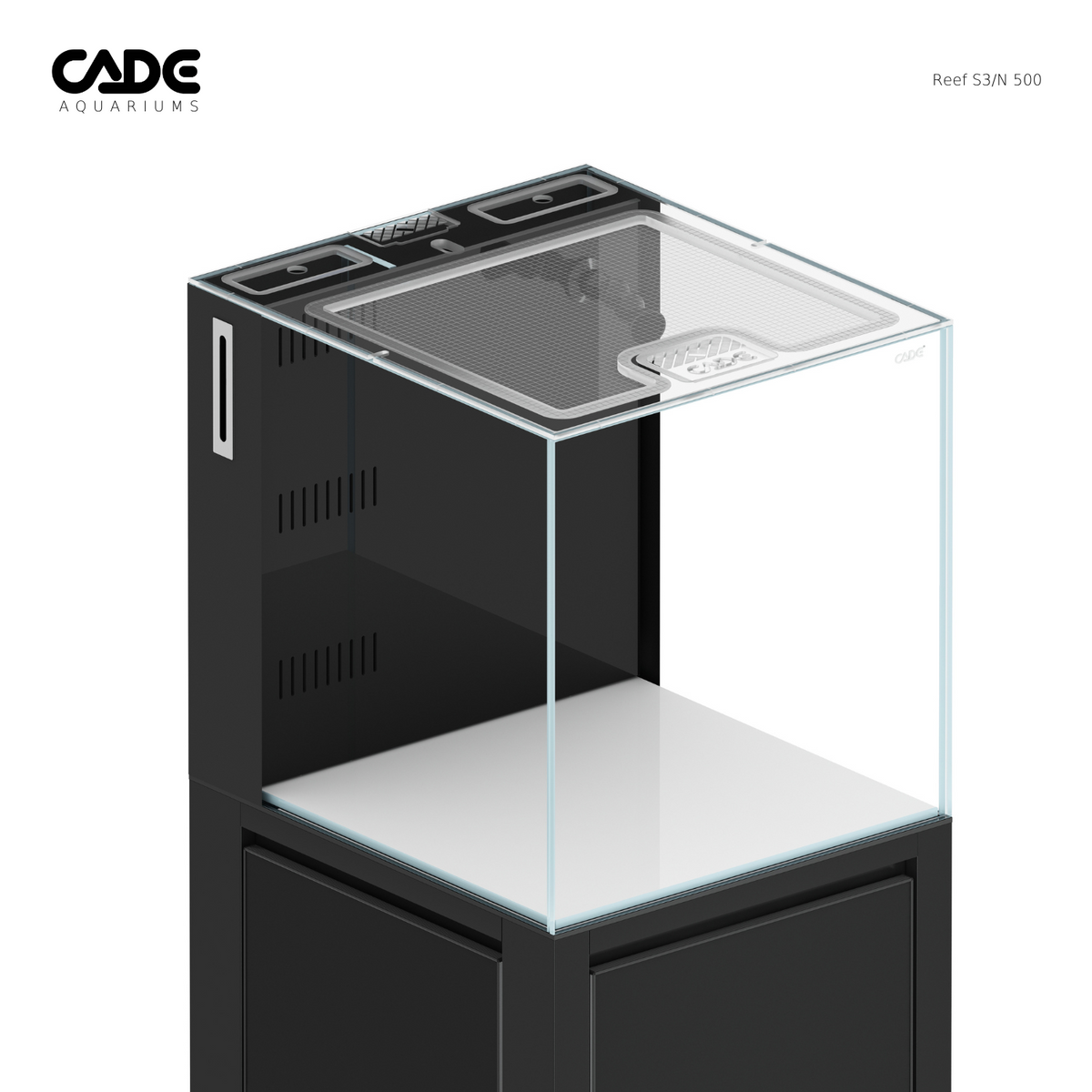

• Polycarbonate jump lid over the display, weir and ATO reservoir

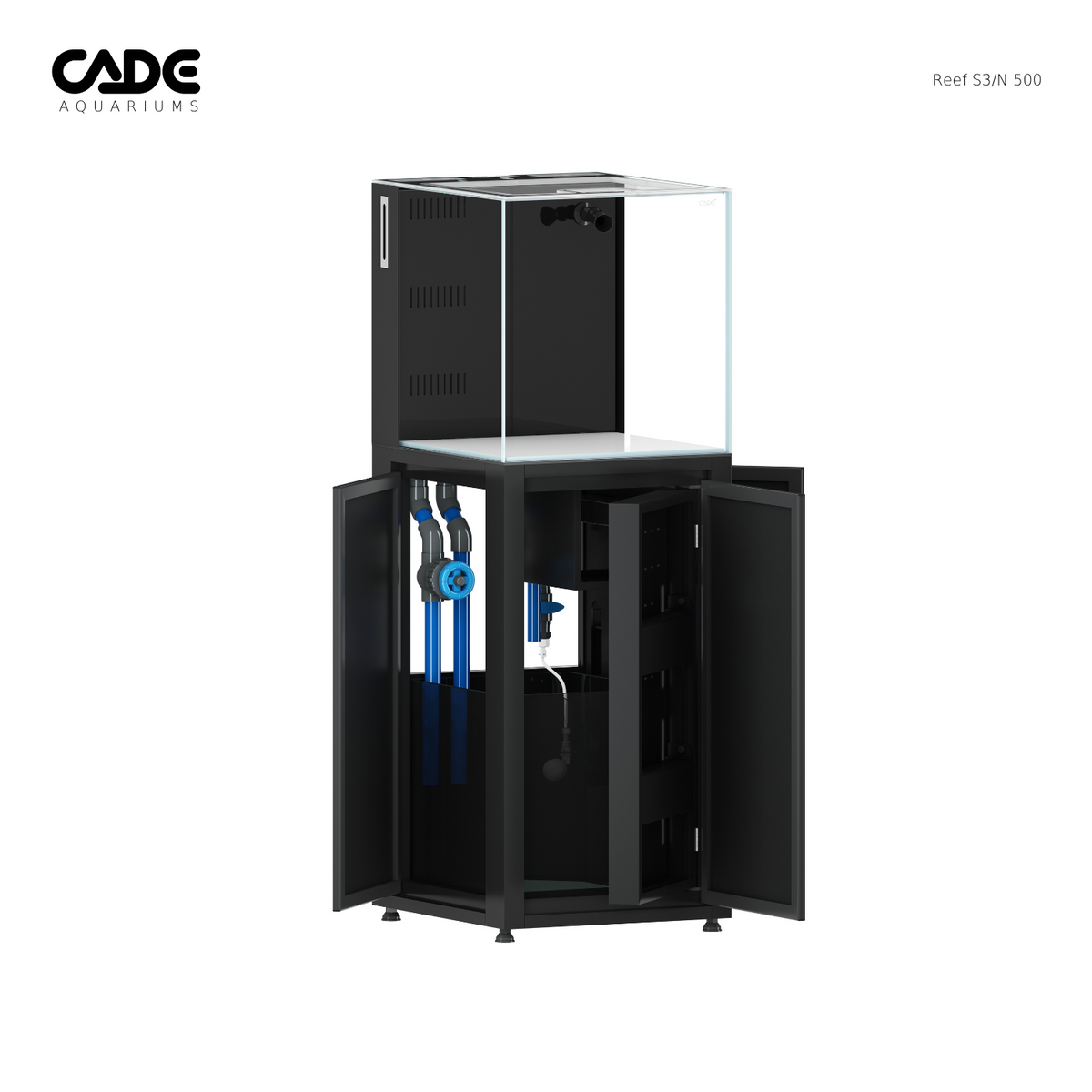

Cabinet

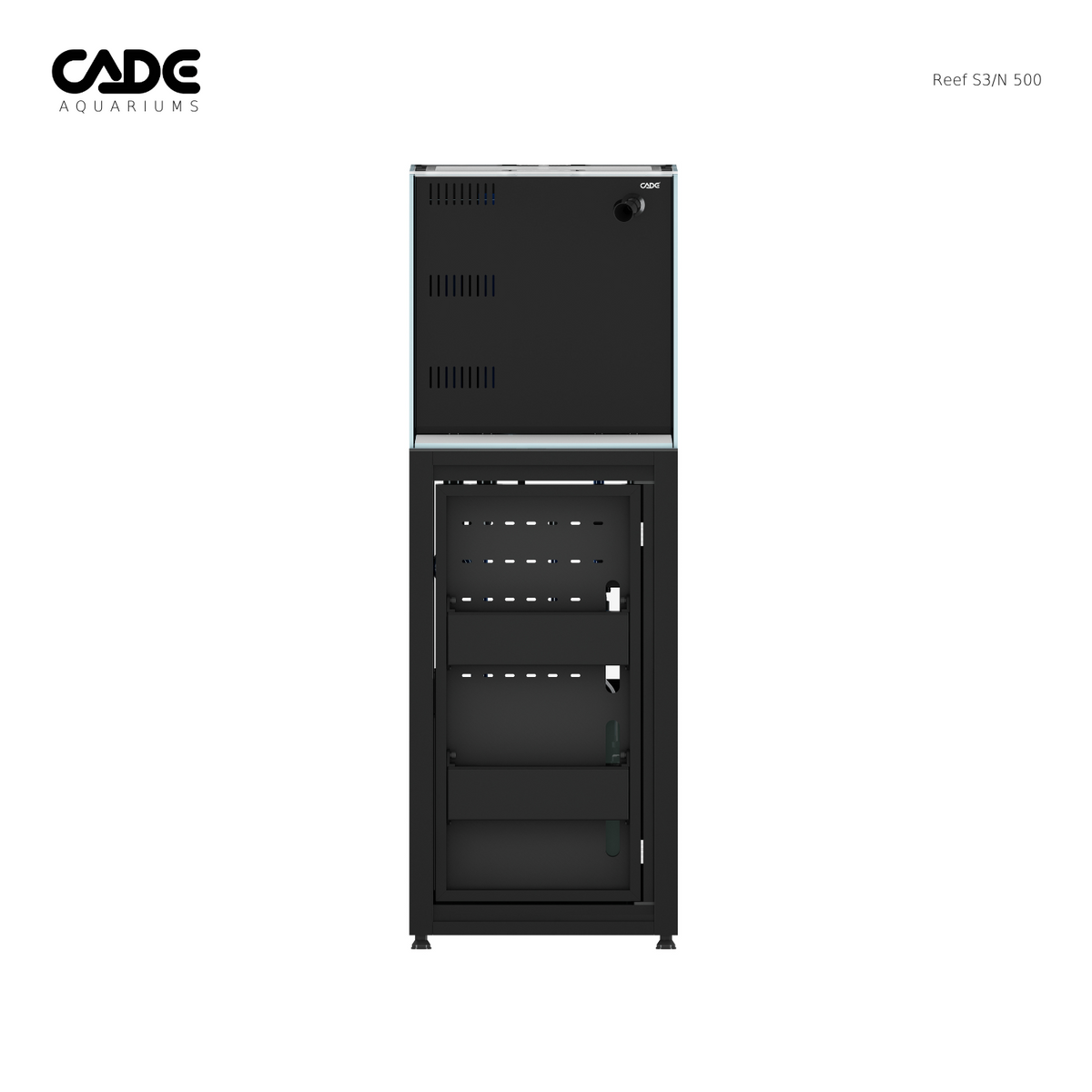

• Cabinet 500 × 560 × 900 mm, powder-coated aluminium frame and doors, 100% waterproof and corrosion-proof, delivered assembled with the sump inside

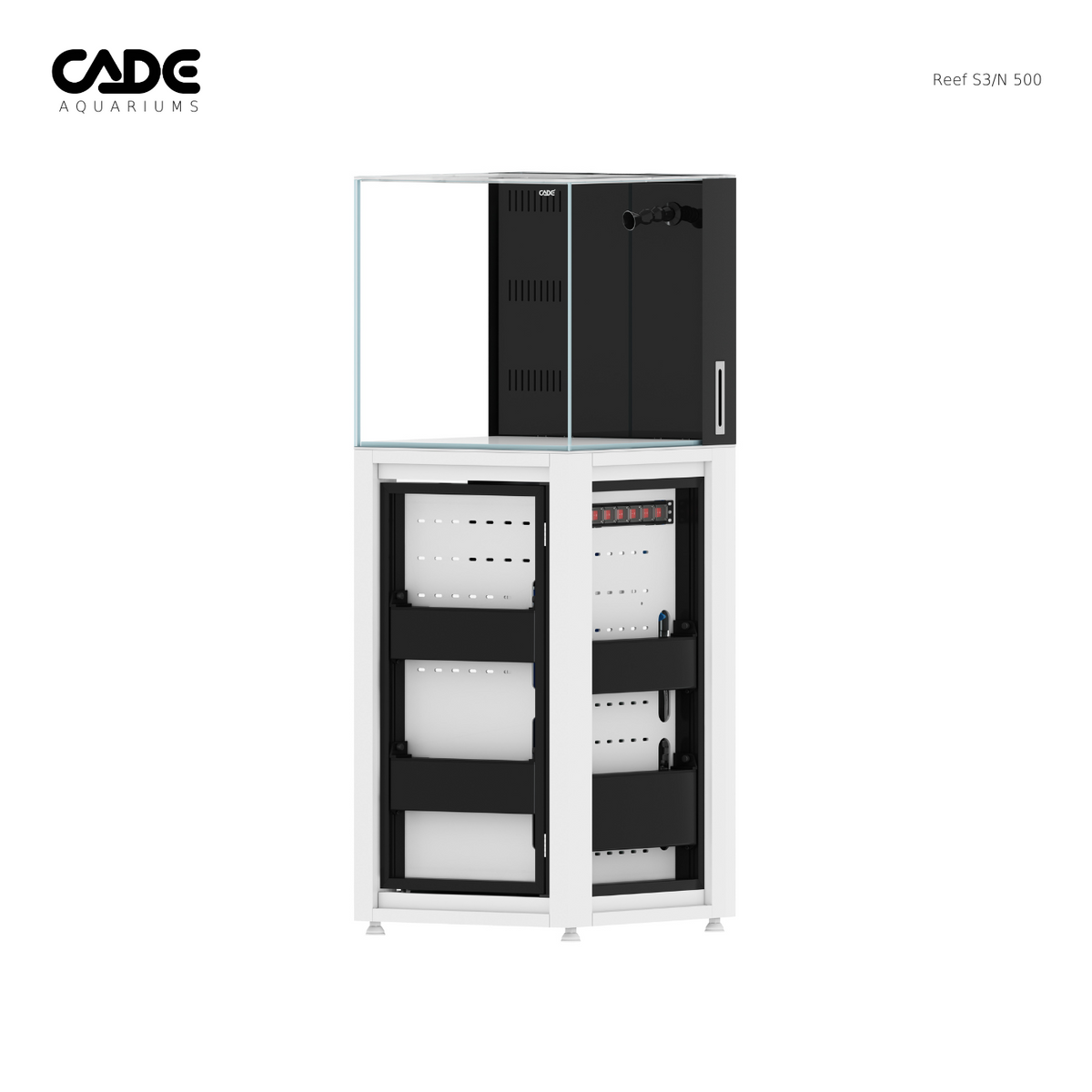

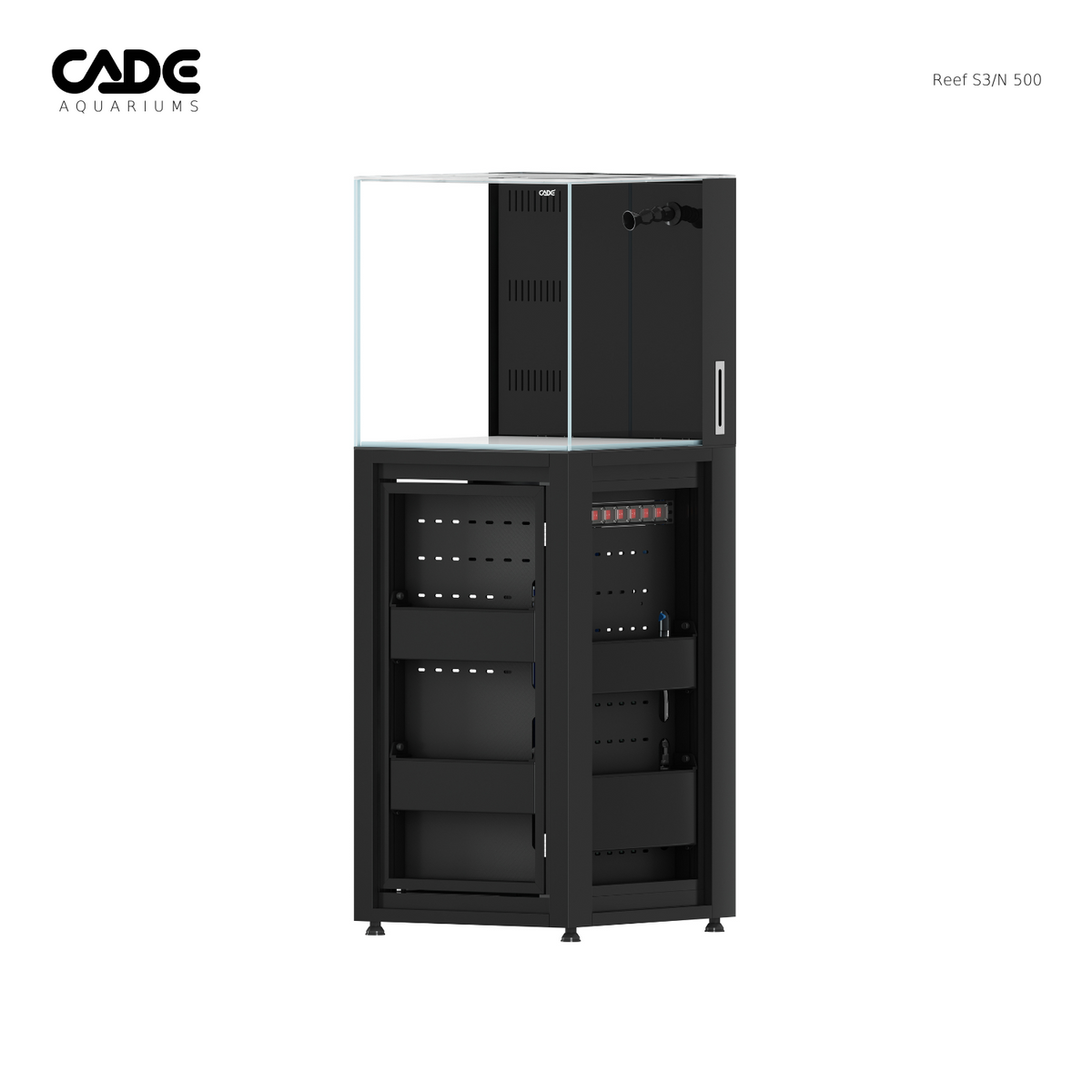

• Six-socket switched power board and device display panel behind the doors
• Cable management, accessories shelf, foam tank mat and adjustable levelling feet

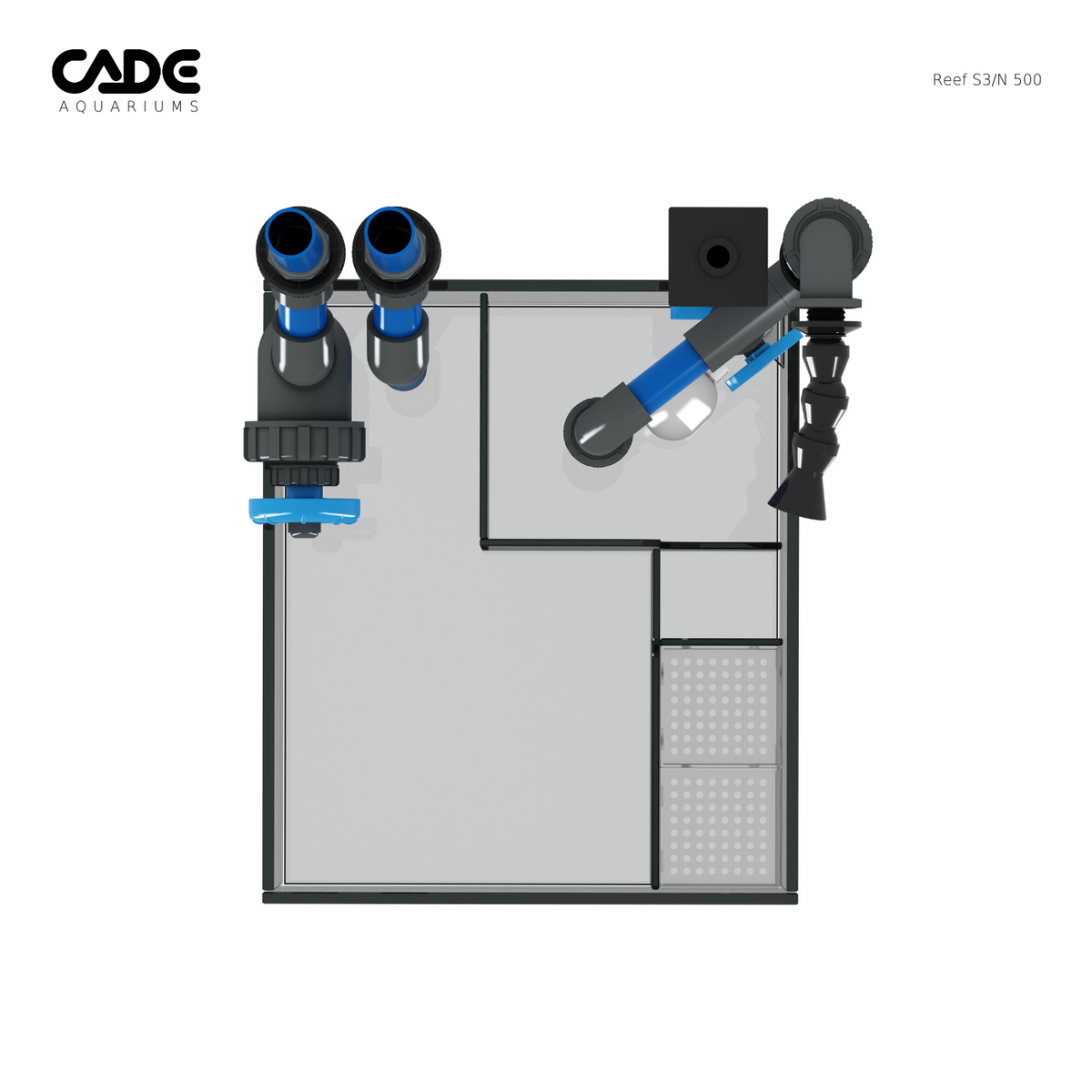

Sump and filtration

• Tinted-glass sump, roller-mat ready (no filter socks)
• Triton tray that doubles as a frag rack
• Protein skimmer and reactor chamber, biological and chemical media chamber with removable baskets, and a return pump chamber with the ATO float valve

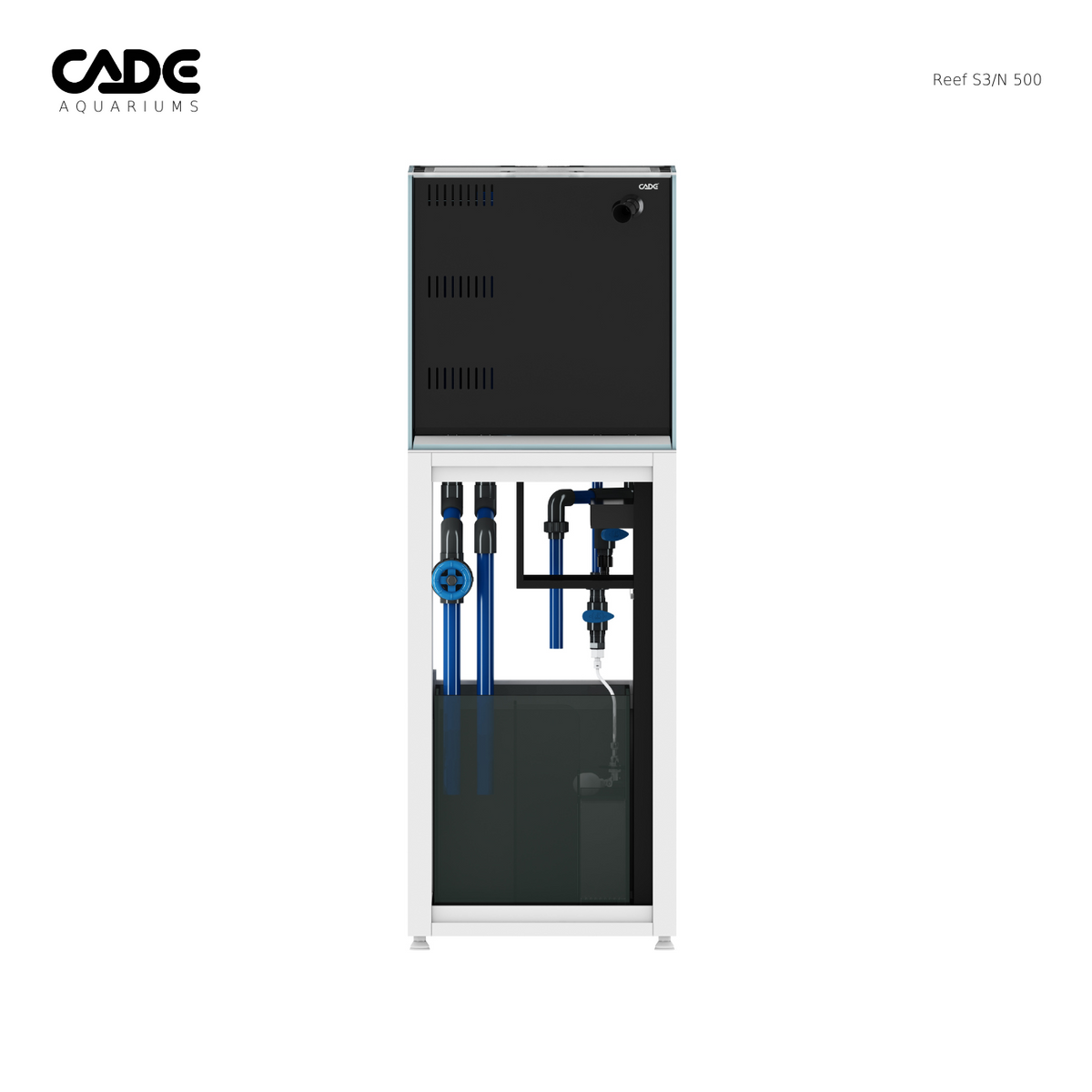

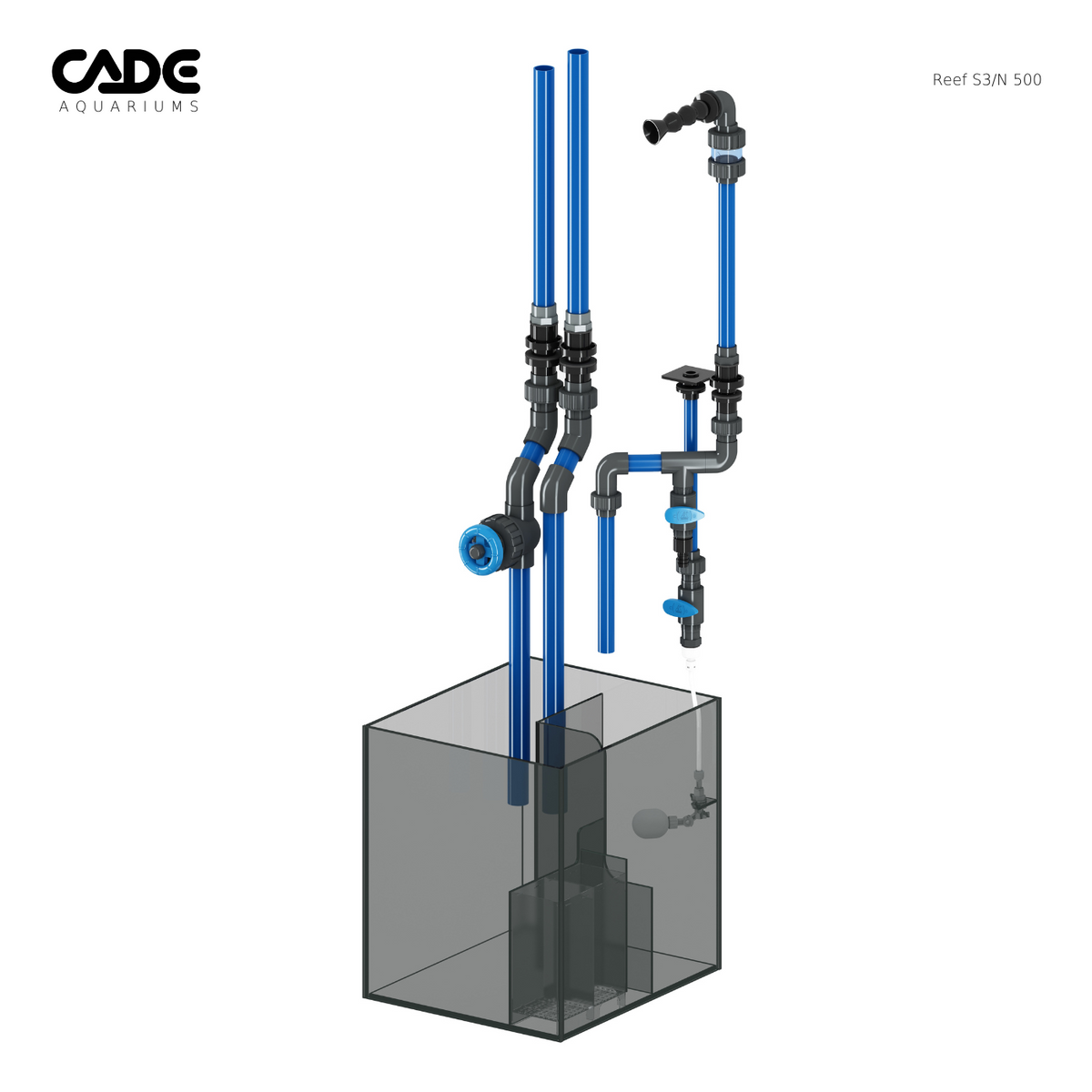

Plumbing

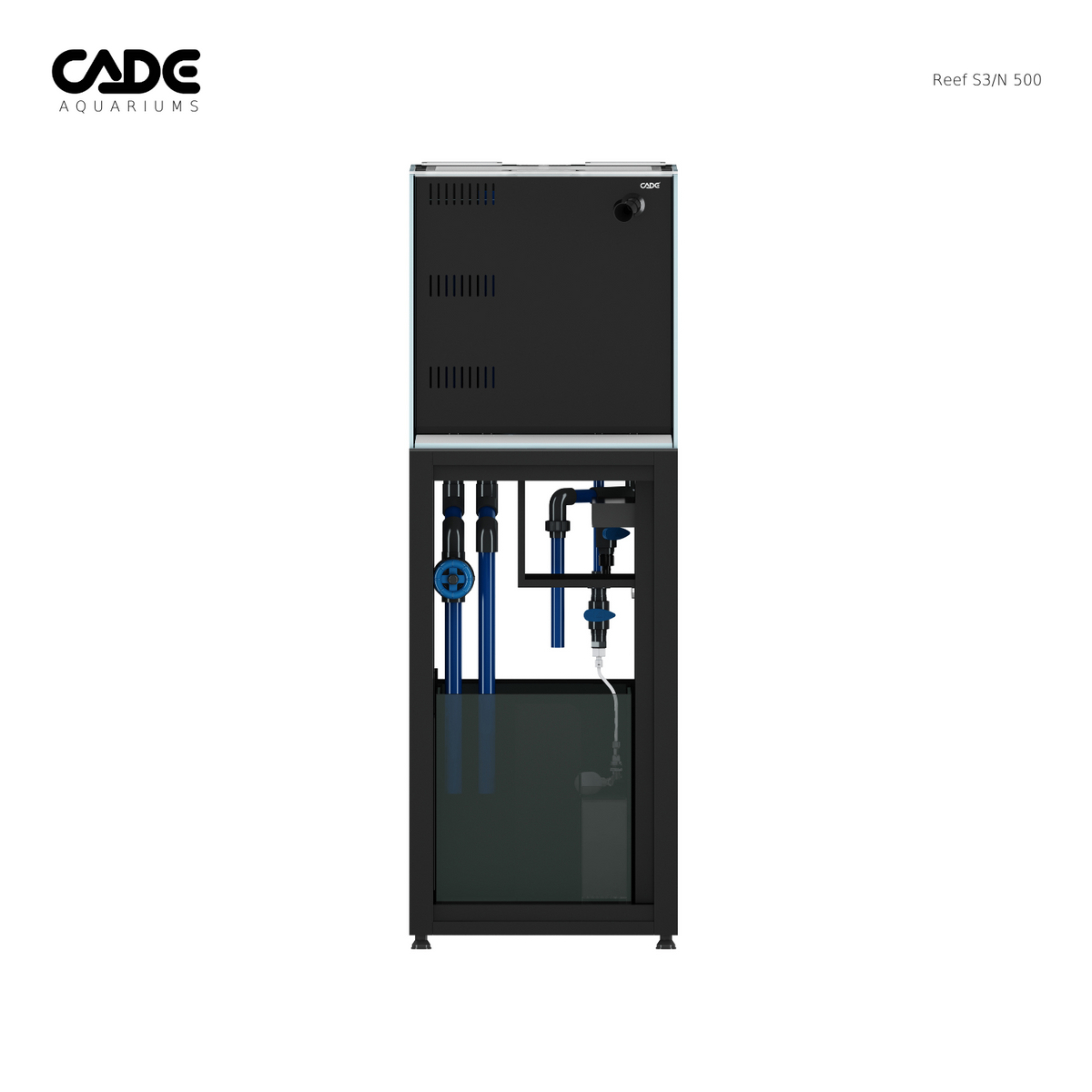

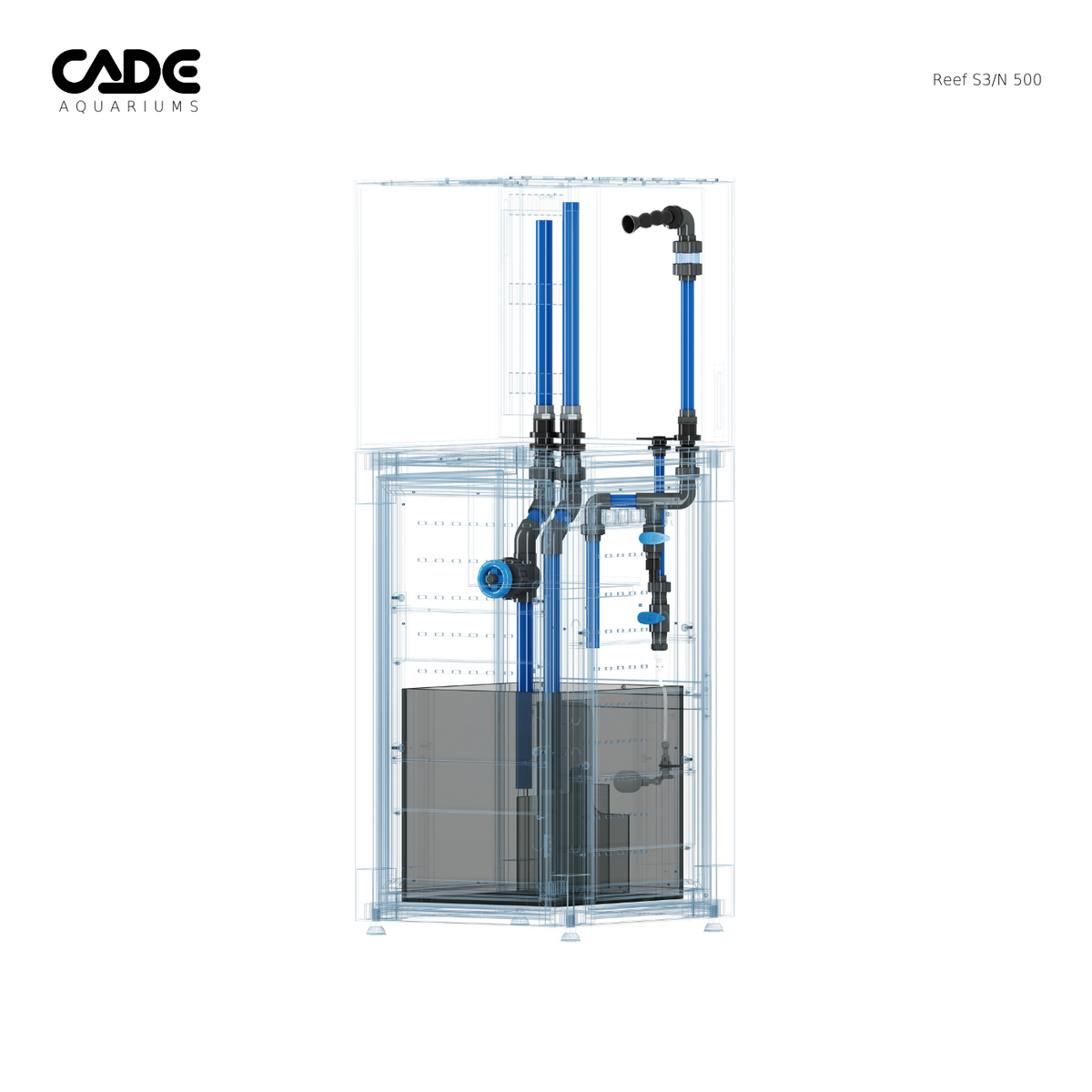

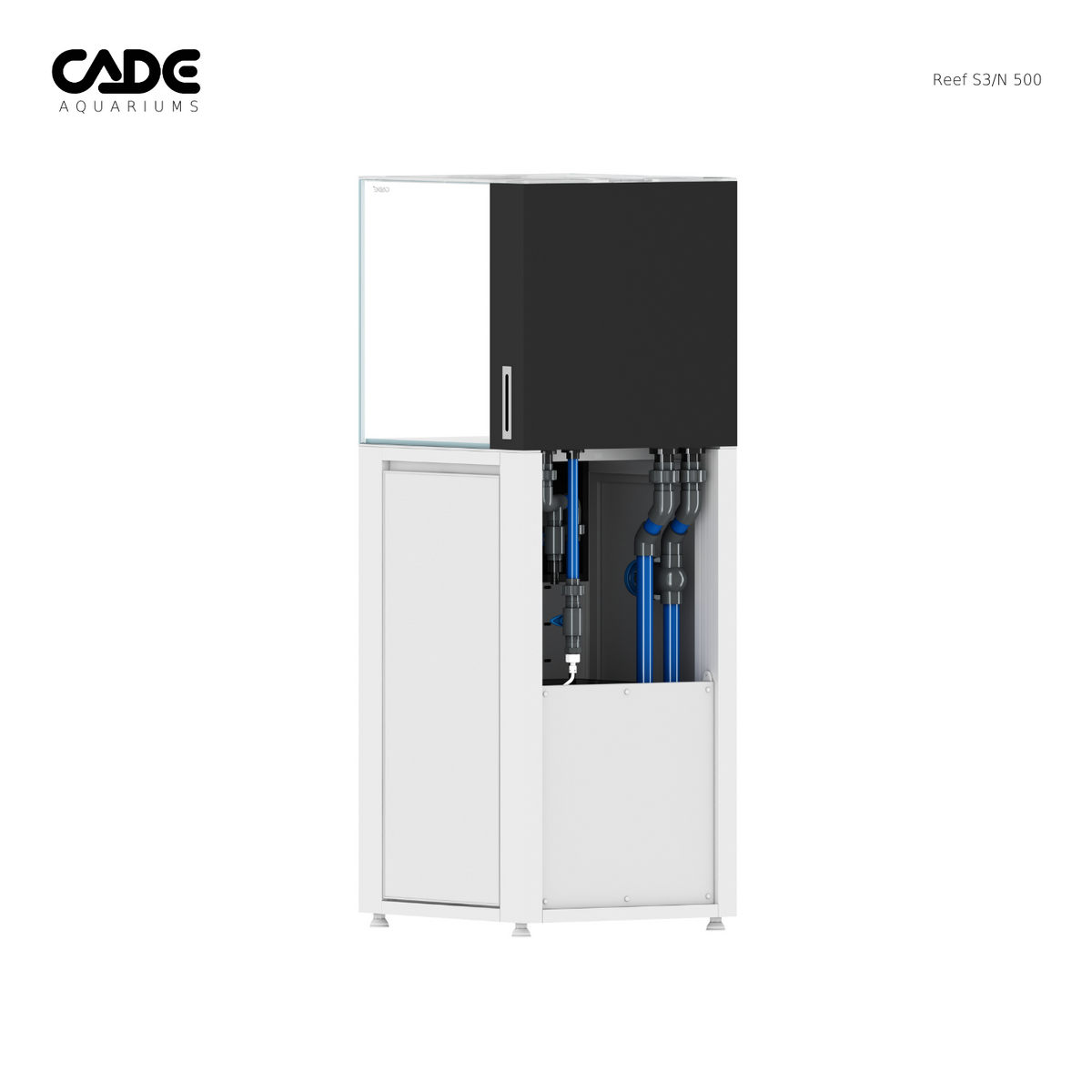

• Pre-installed quick-fit Flowcolour plumbing
• Dual down-flow pipes (main and emergency) with fine-tune gate valve
• Return line with non-return valve and directional nozzle

Specifications

Colours and what is not included

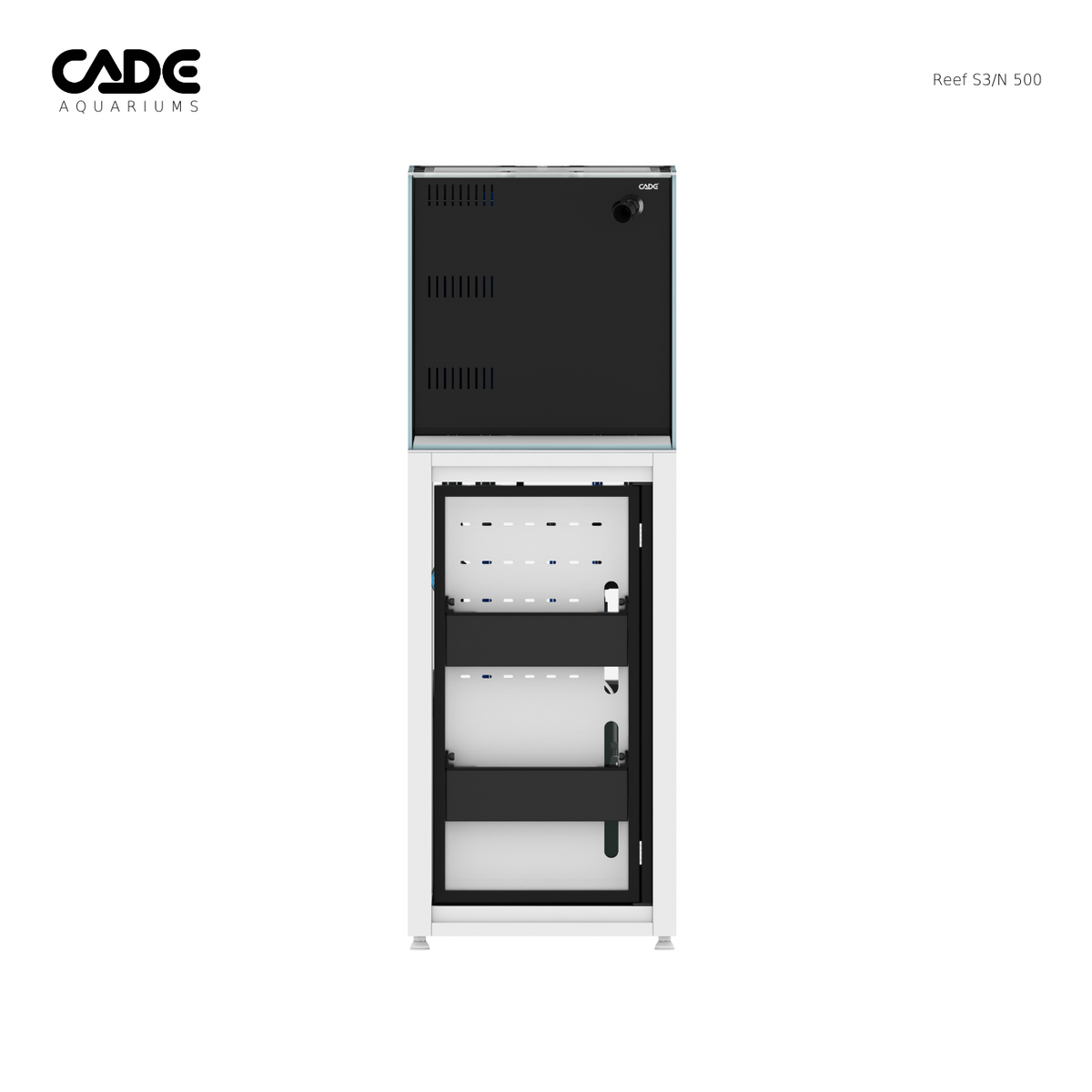

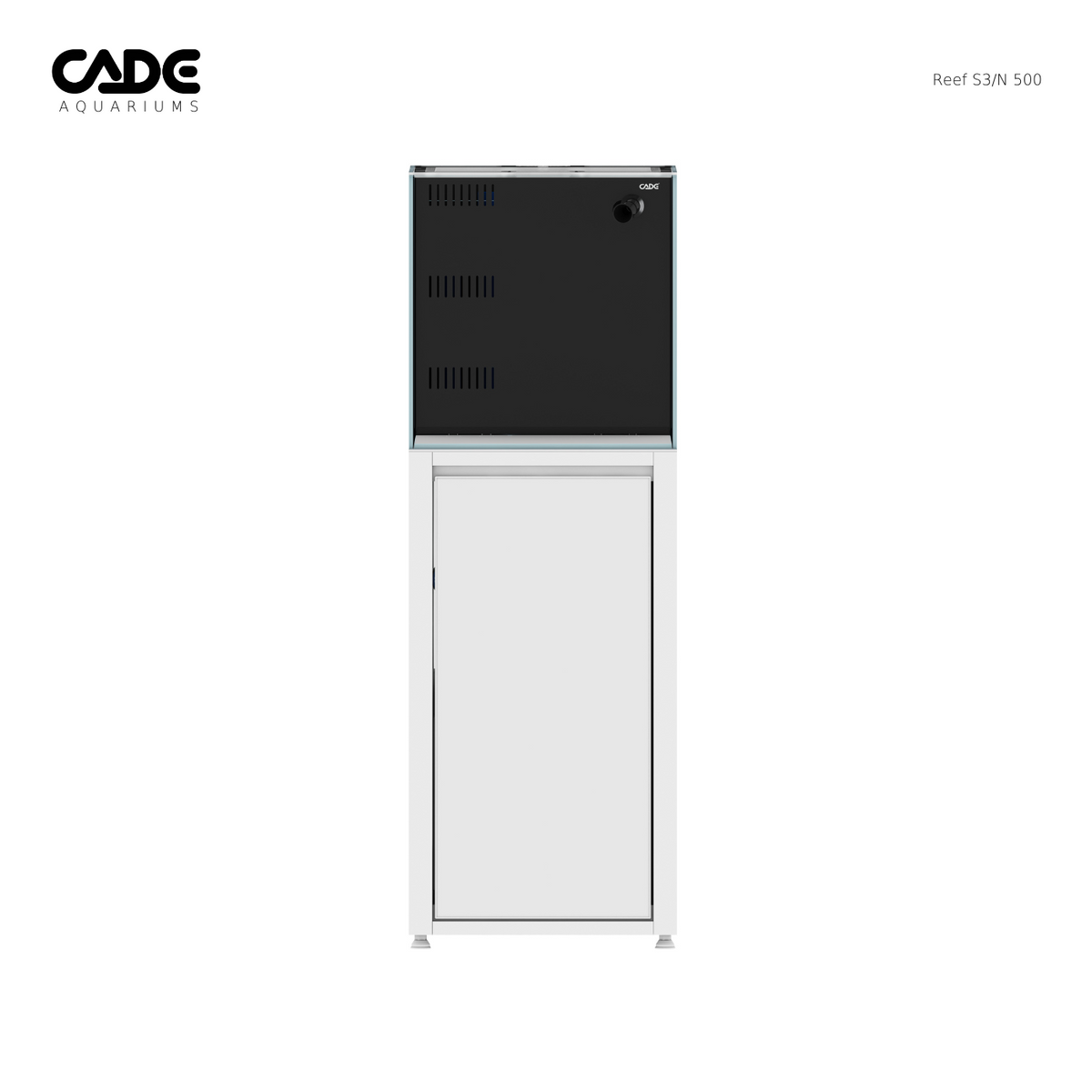

Available in black or white — choose the colour above. Return pump, protein skimmer, lighting and ATO device are not supplied.
