Cade Reef S3/P 2200 Peninsula

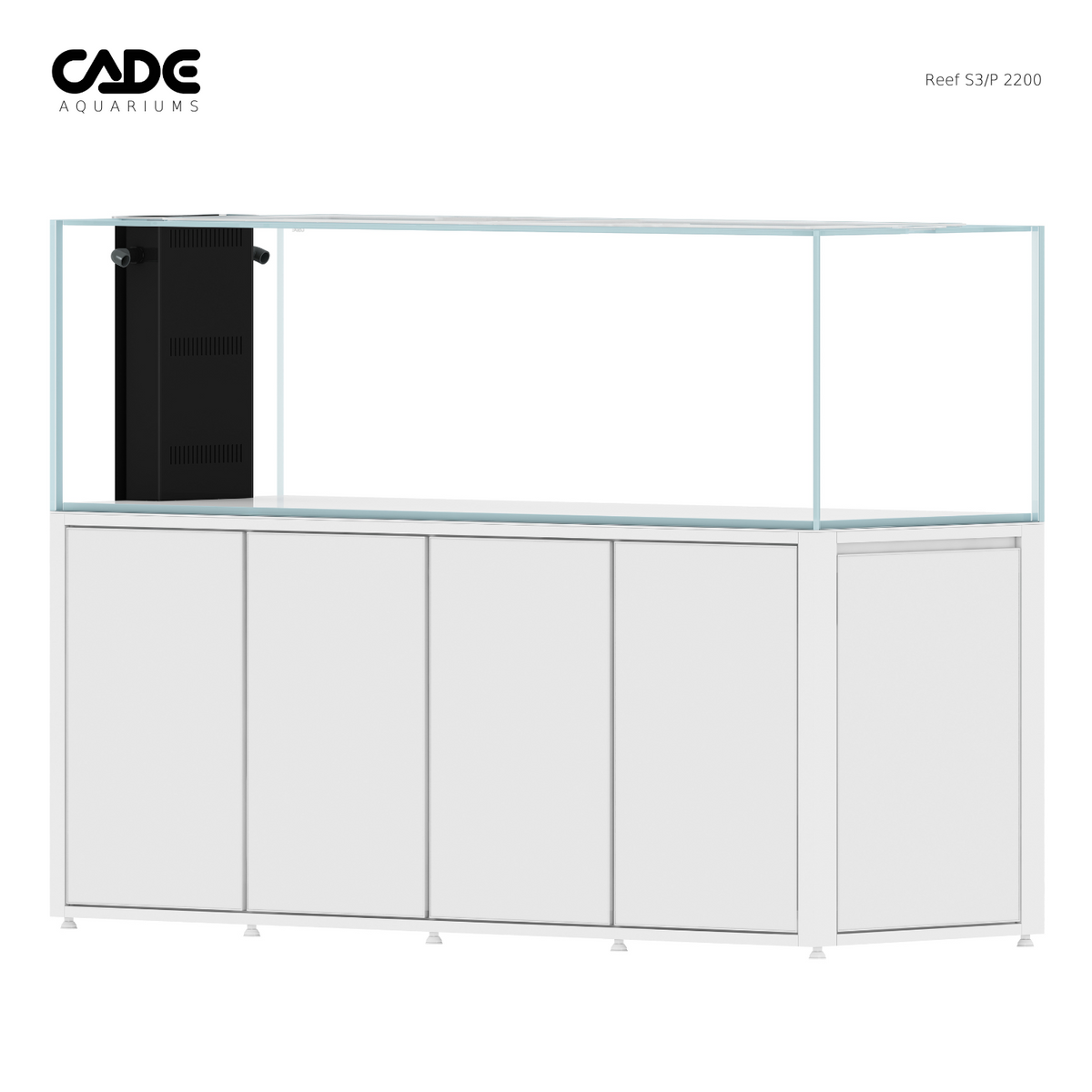

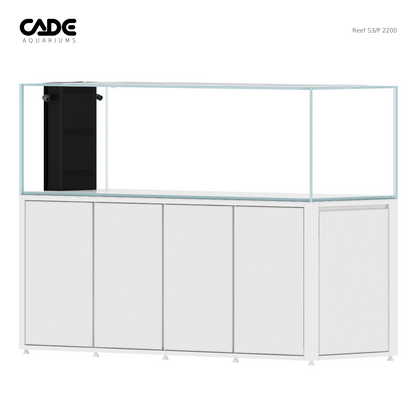

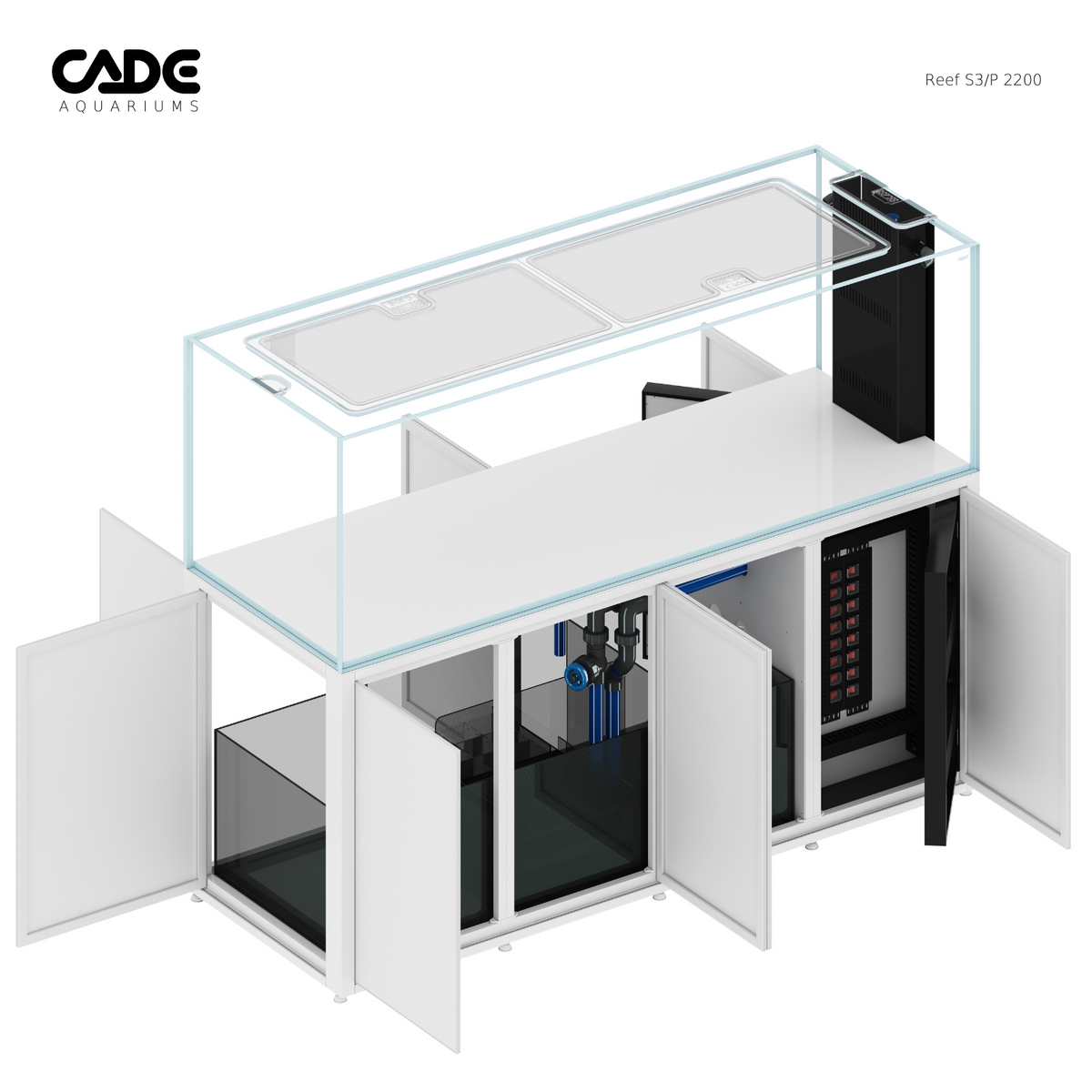

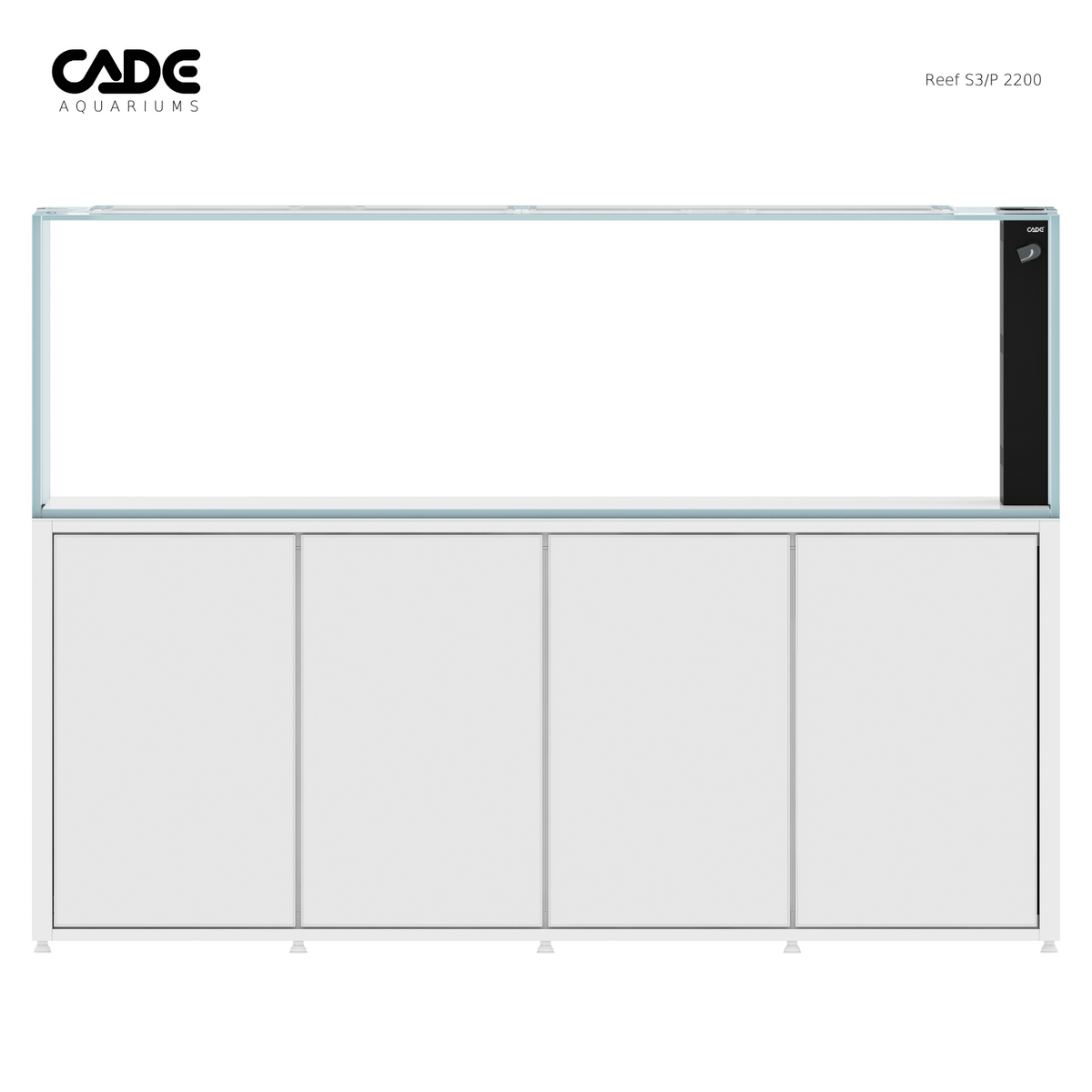

The CADE Reef S3/P 2200 is the 2200 mm peninsula model of the S3 range: an extra-wide, euro-braced rimless tank of 1,144 L designed to be viewed from three sides, with the weir and plumbing at one end and the same aluminium cabinet, tinted-glass sump and quick-fit plumbing as the rest of the S3 range. 1,325 L of water in the whole system.

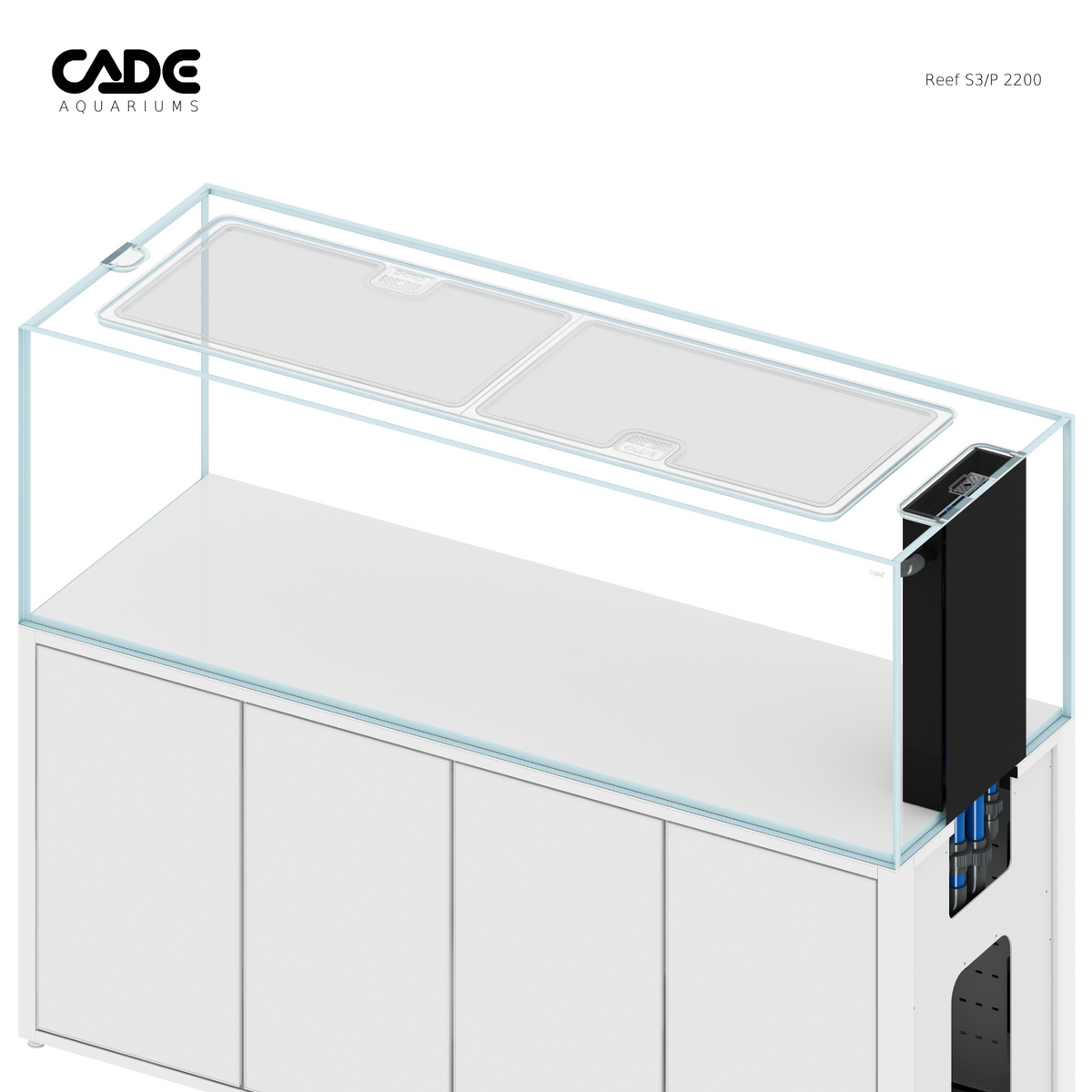

Tank

• Opti-Clear low-iron glass, rimless, bonded with German Wacker silicone applied by robot

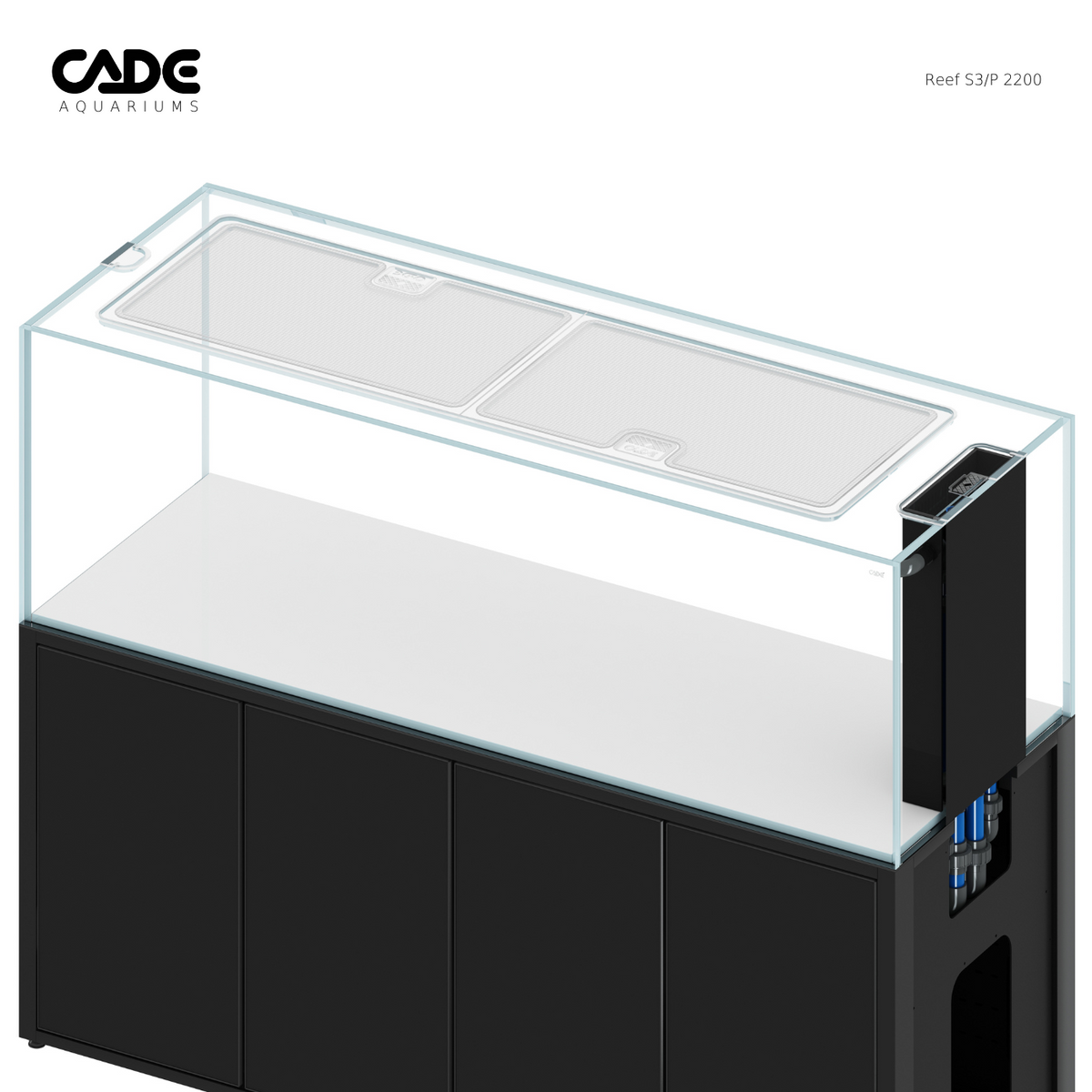

• Concealed slimline weir with three inlets (surface, mid and low) so a blocked inlet never stops the flow
• Polycarbonate jump guards over the display, weir and ATO reservoir
• 19 mm glass, tank 2200 × 800 × 650 mm external, 10 mm euro-brace
• Gravity-fed 82.9 L ATO reservoir in the weir compartment (ATO device not supplied)
• Two concealed return outlets in the weir
• White laminated base for bare-bottom set-ups

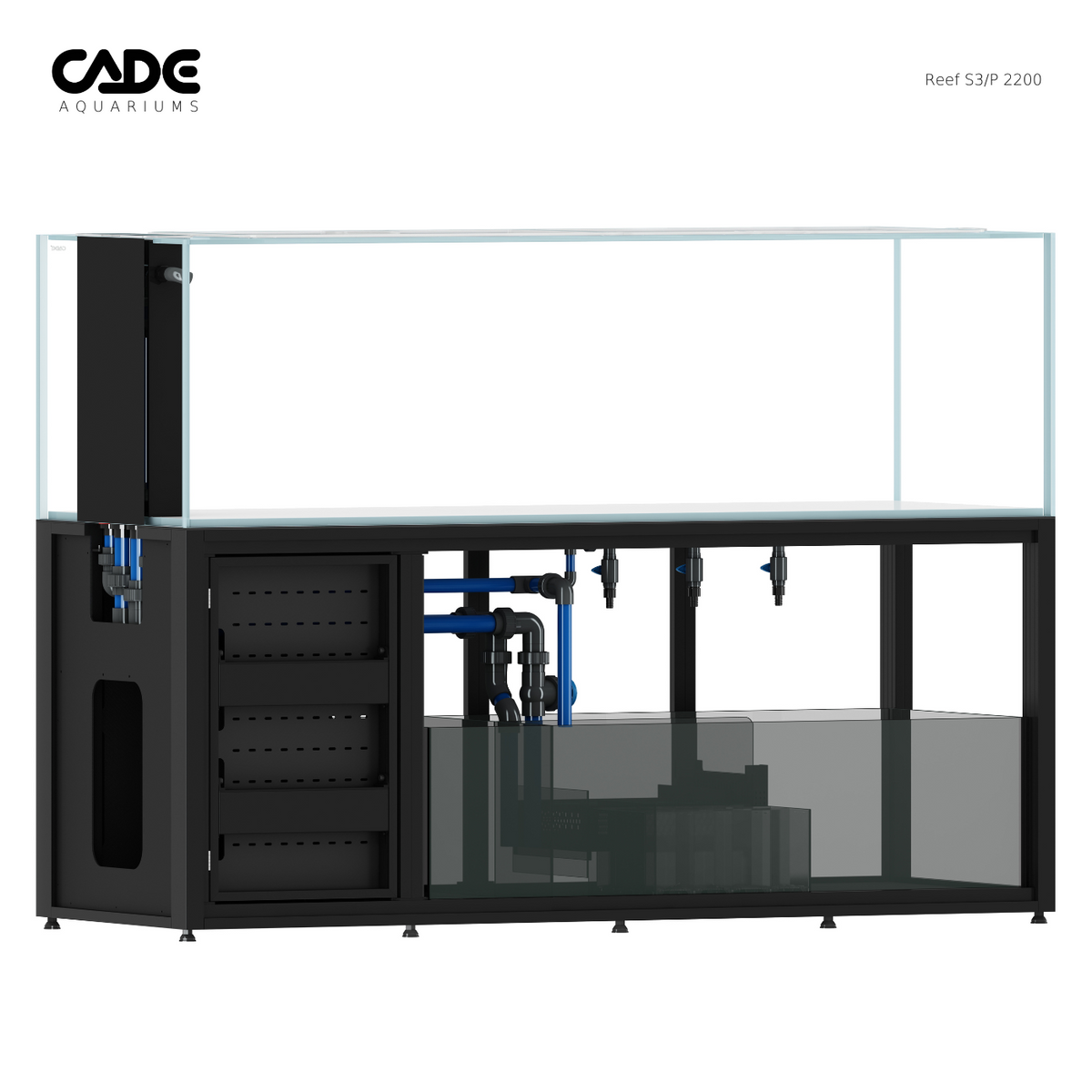

Cabinet

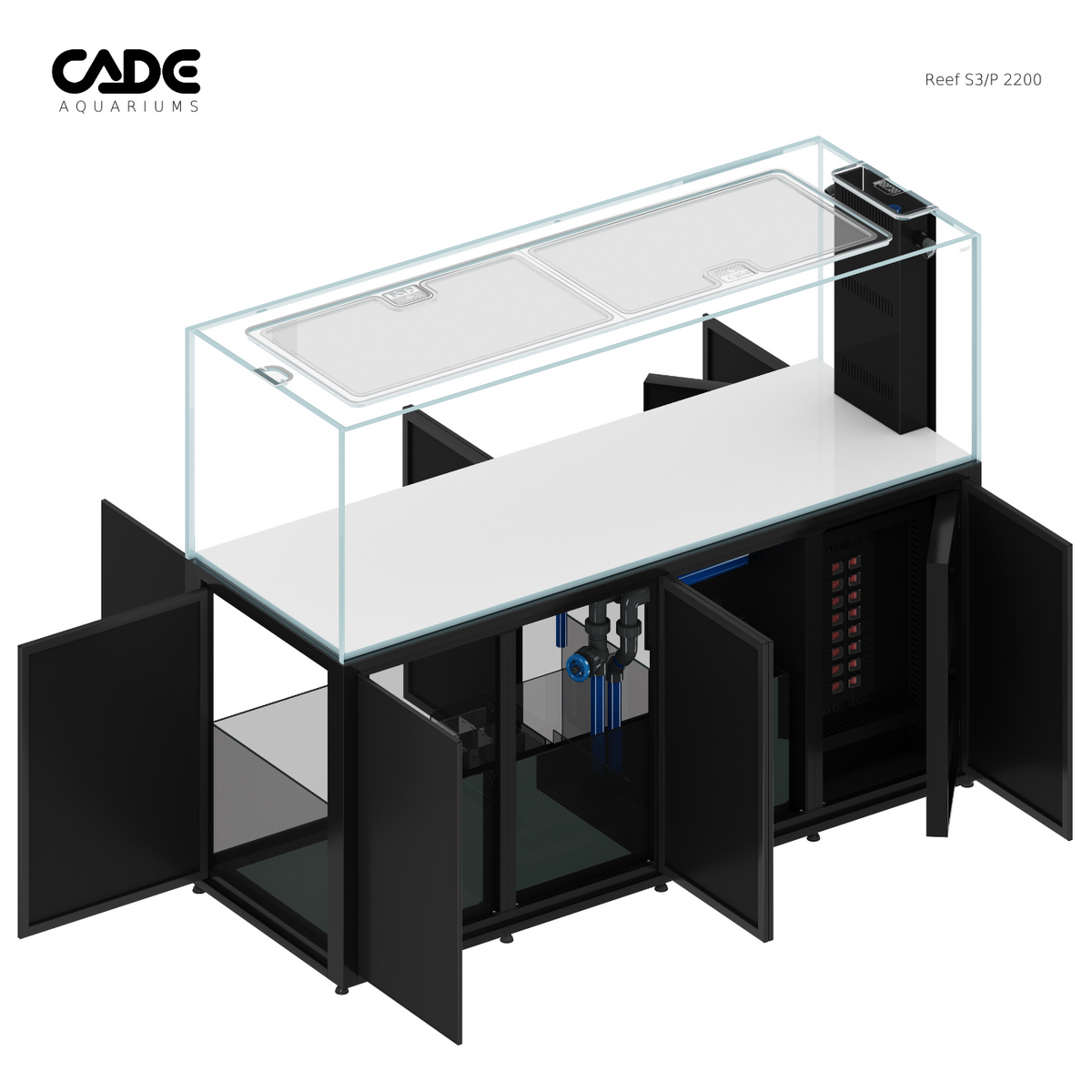

• Powder-coated aluminium cabinet, 100% waterproof and corrosion-proof, delivered assembled with the sump already inside

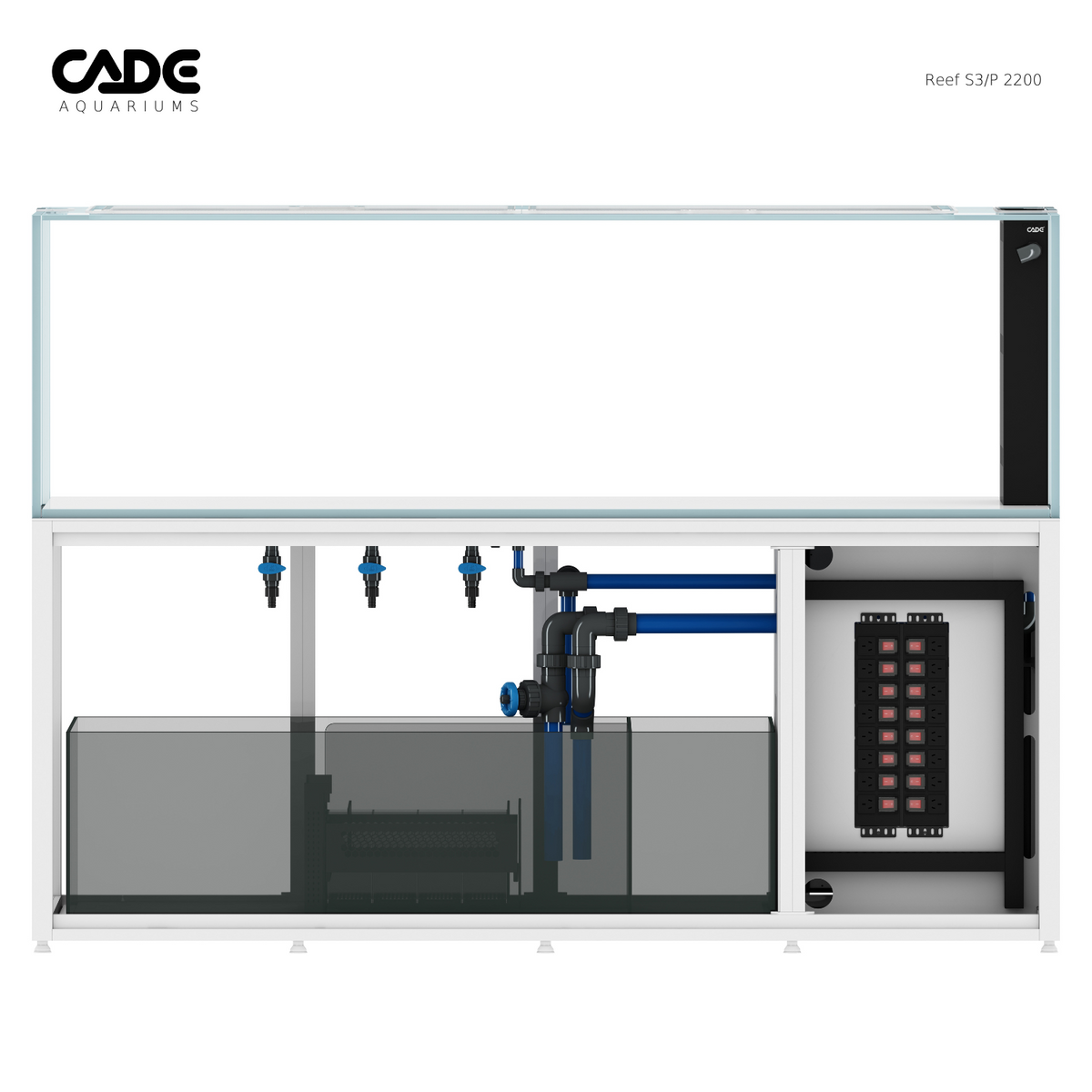

• Device display panels and 16-socket switched power board behind the device door
• Cable management, accessories and dosing shelf, dry space for a chiller or dosing gear
• Foam tank mat and adjustable levelling feet

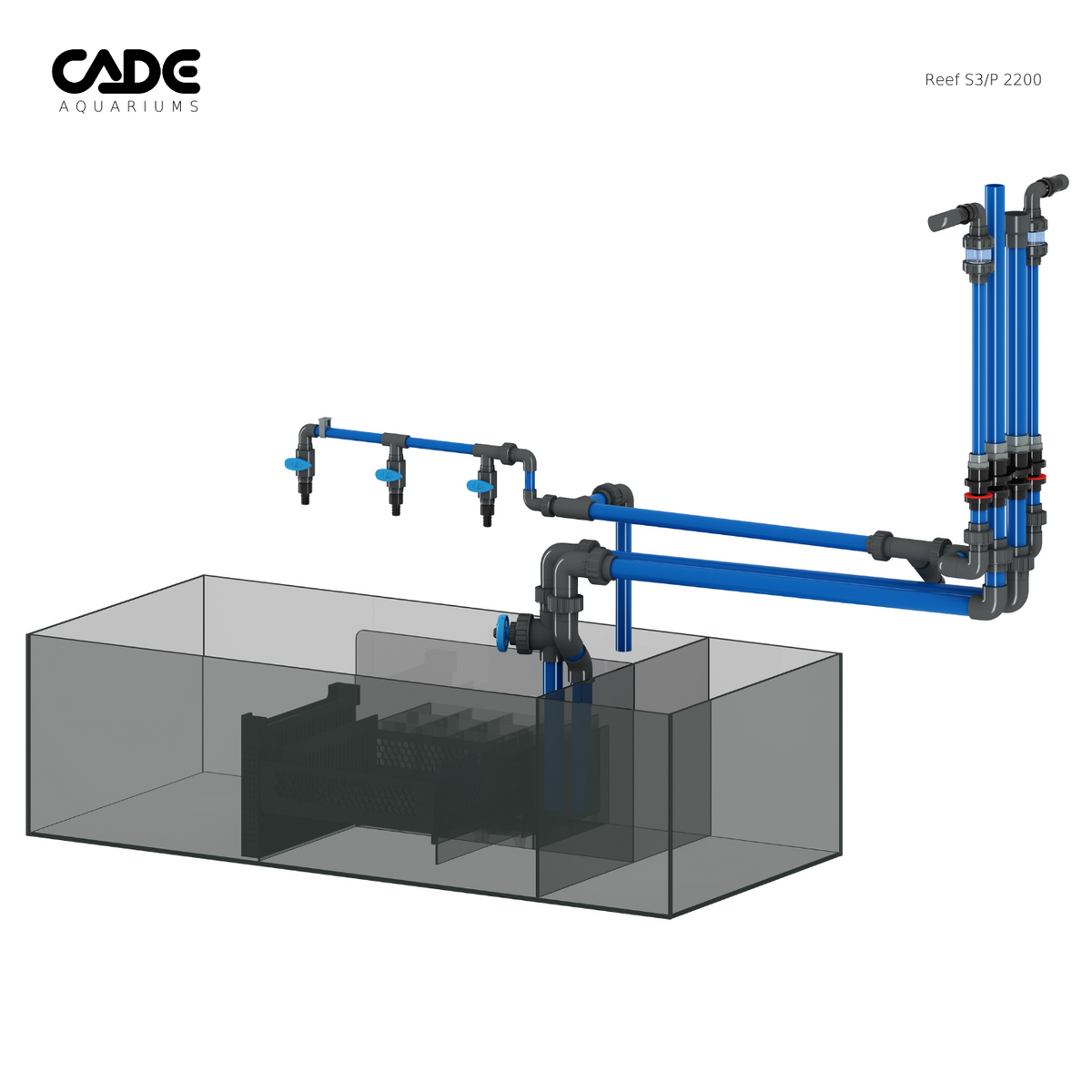

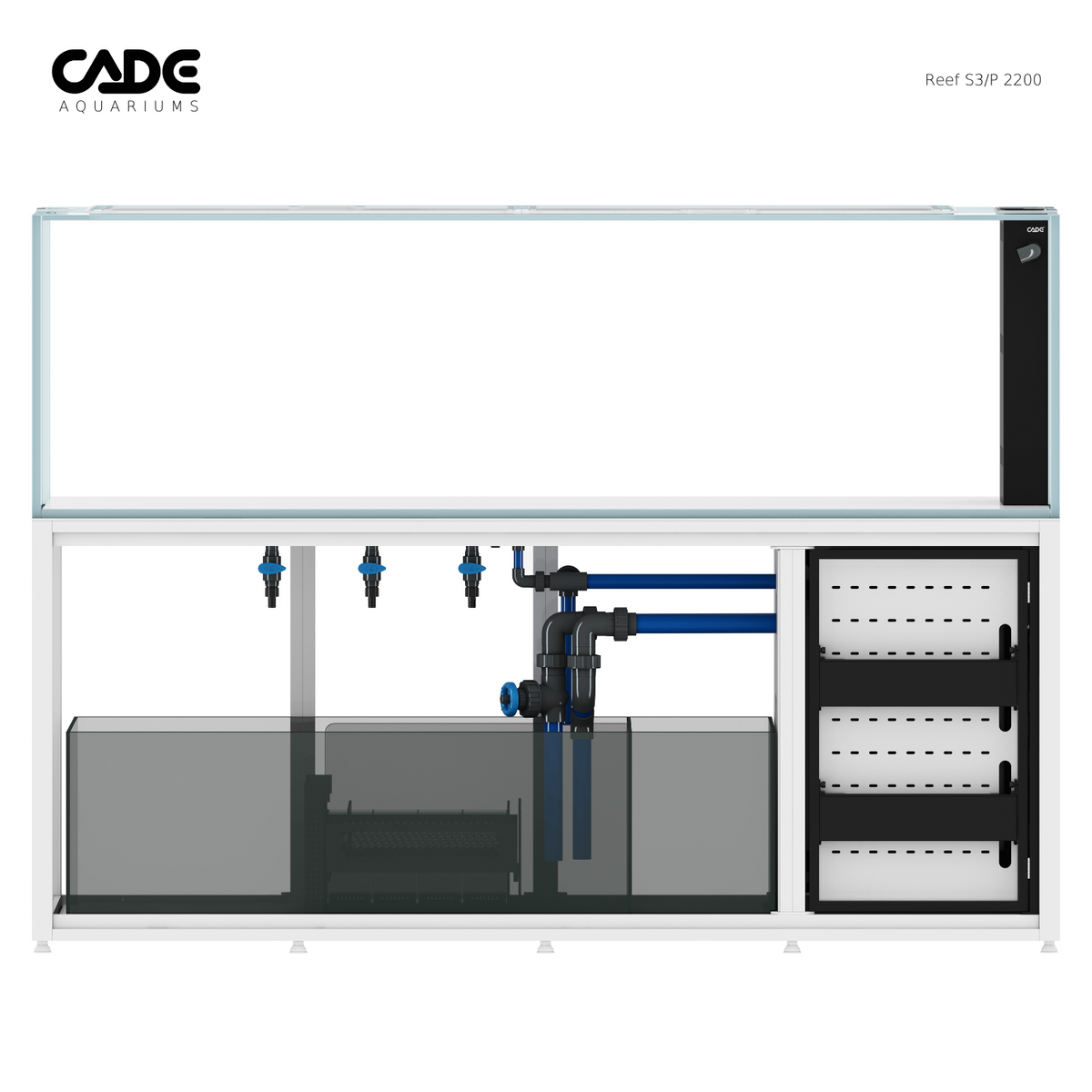

Sump and filtration

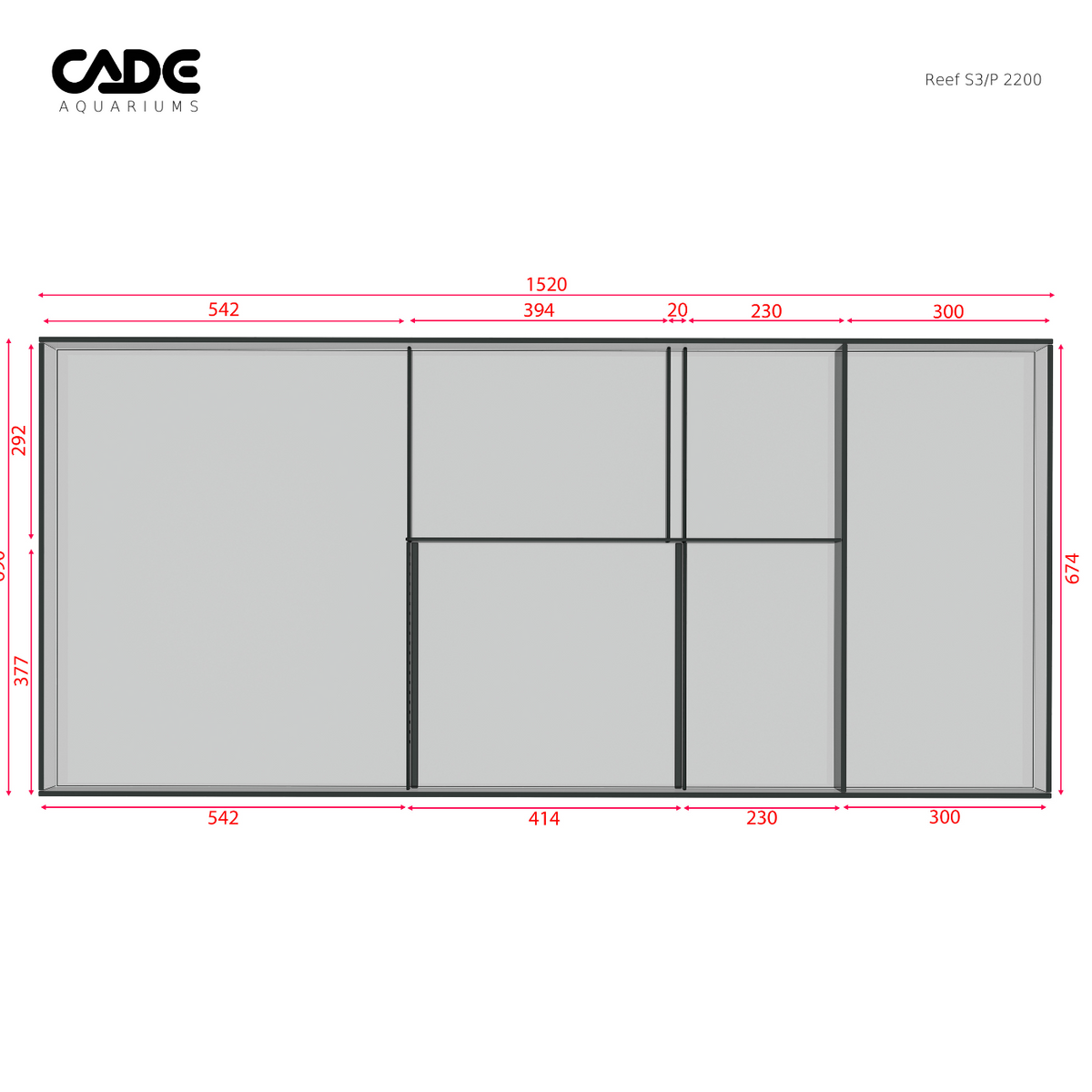

• Tinted-glass sump, roller-mat ready (no filter socks)
• Triton tray that doubles as a frag rack
• Protein skimmer and reactor chamber, biological and chemical media chamber with removable baskets, and a return pump chamber with the ATO float valve

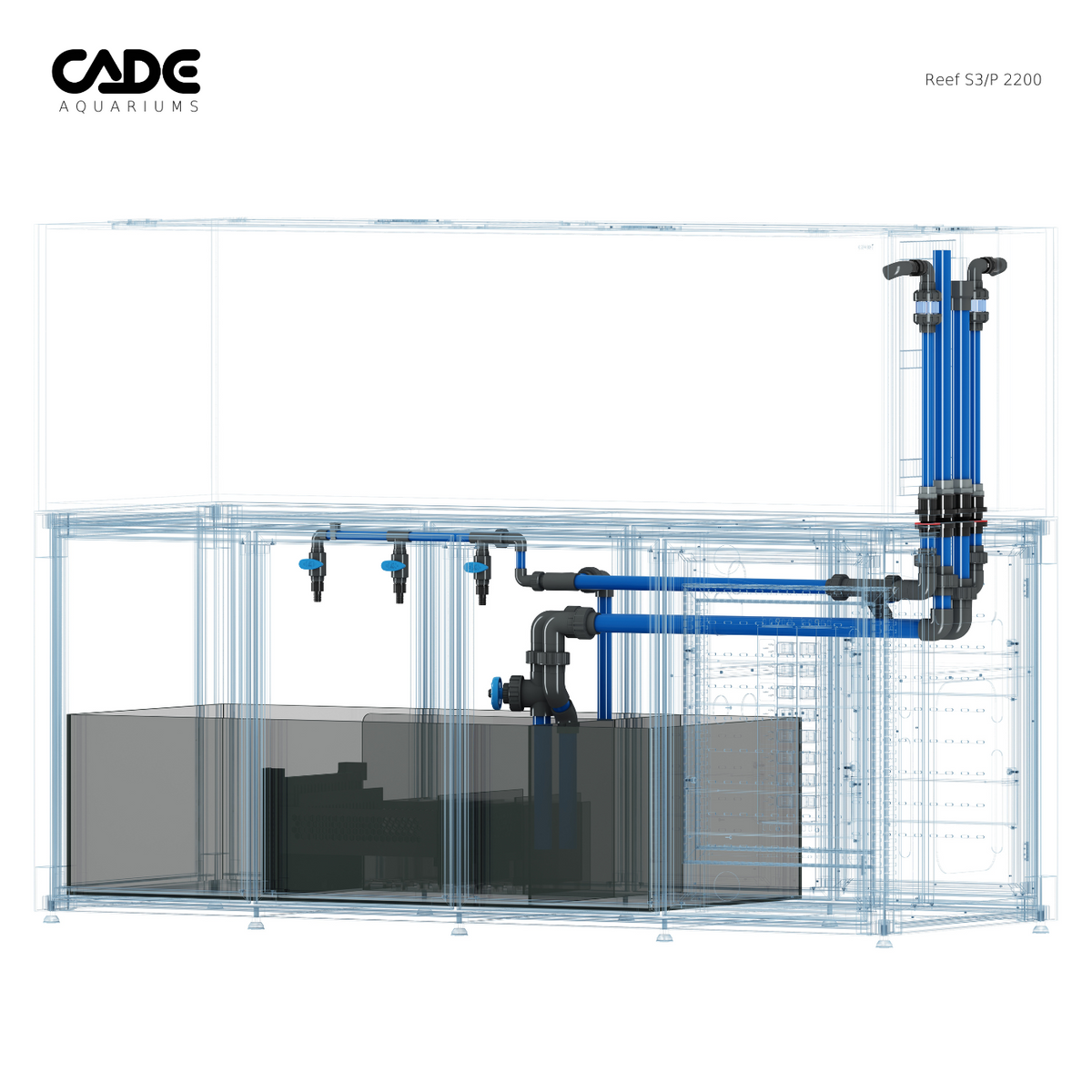

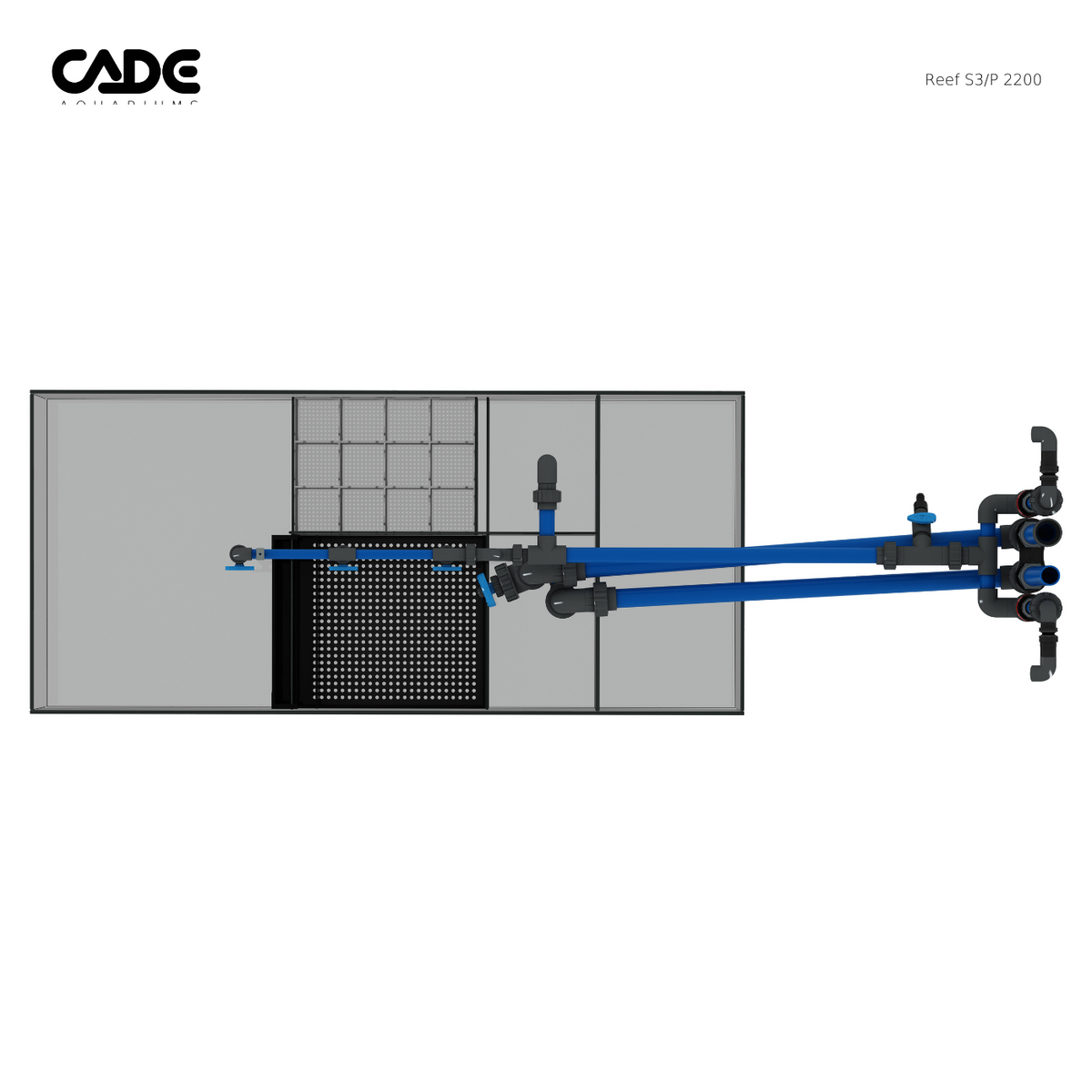

Plumbing

• Pre-installed quick-fit Flowcolour plumbing
• Dual down-flow pipes (main and emergency) with fine-tune gate valve
• Return lines with non-return valves and directional nozzles
• Three 17 mm reactor and chiller feed outlets

Specifications

Colours and what is not included

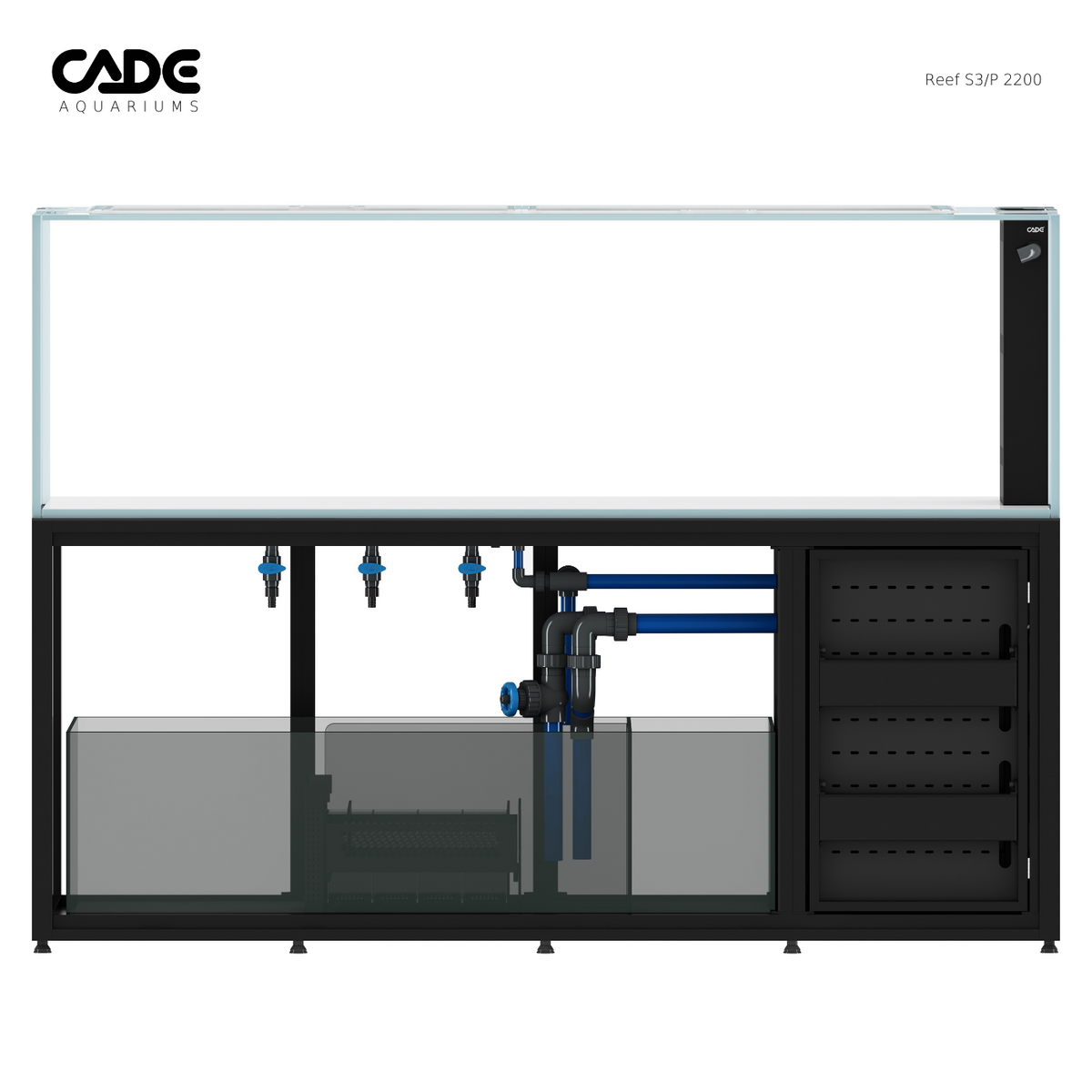

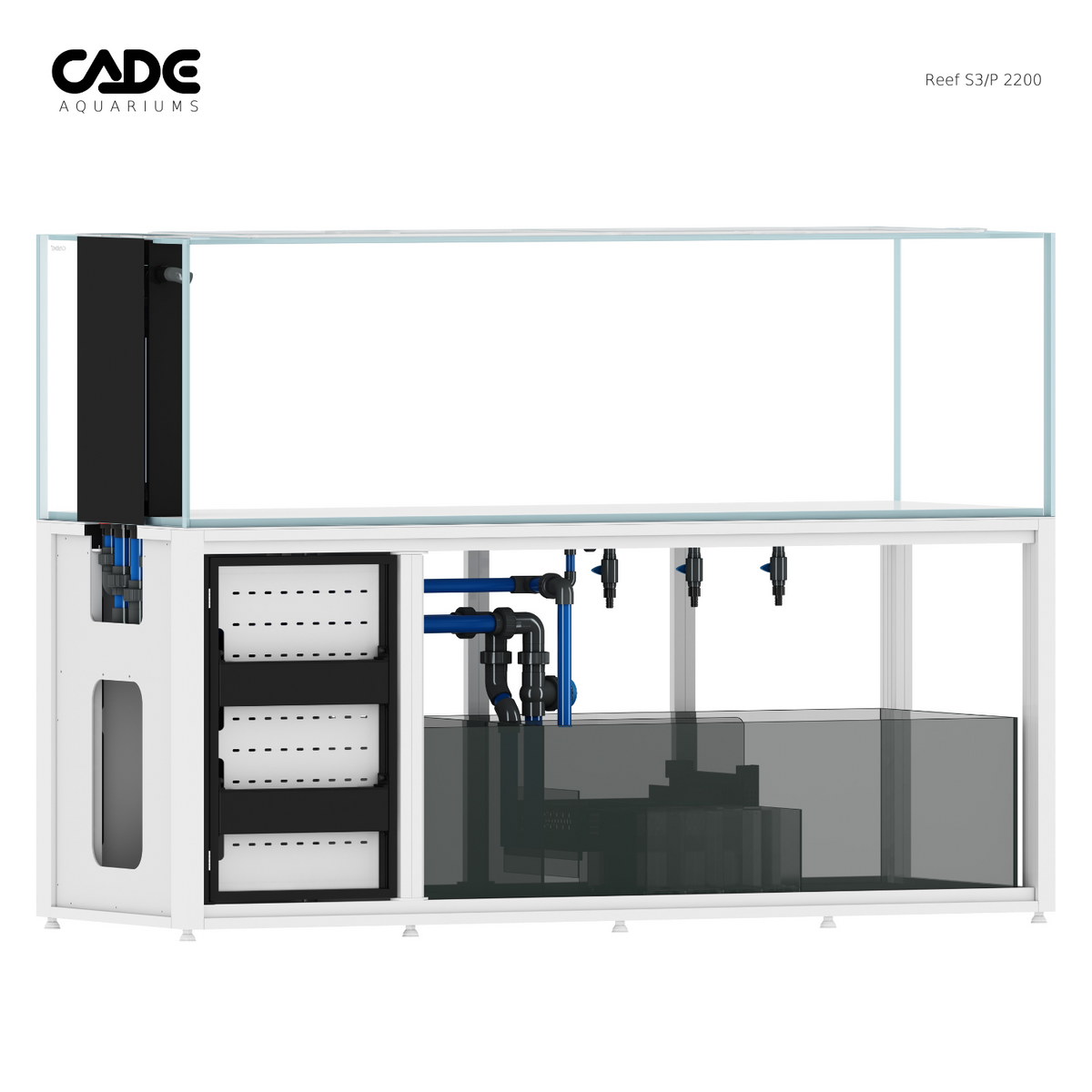

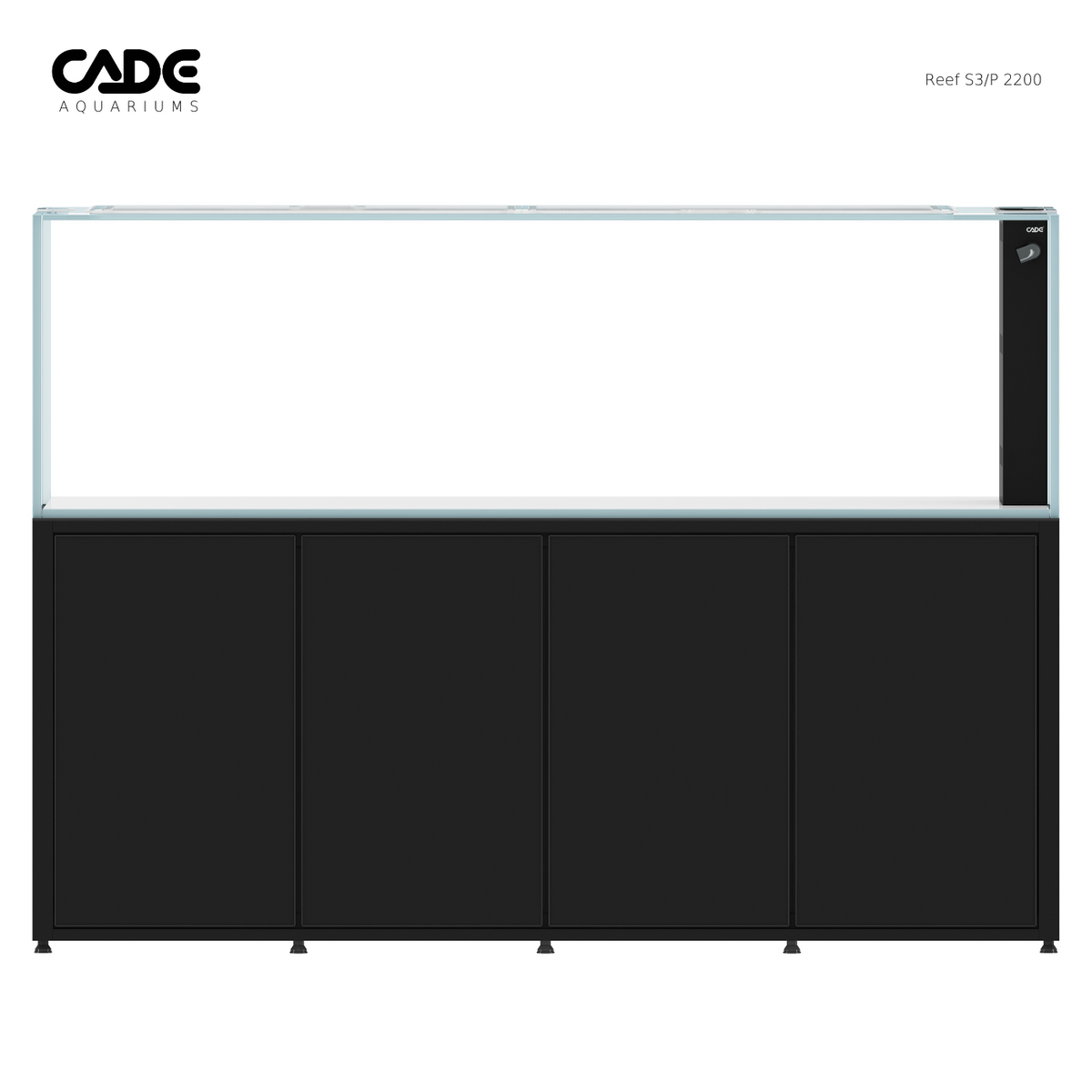

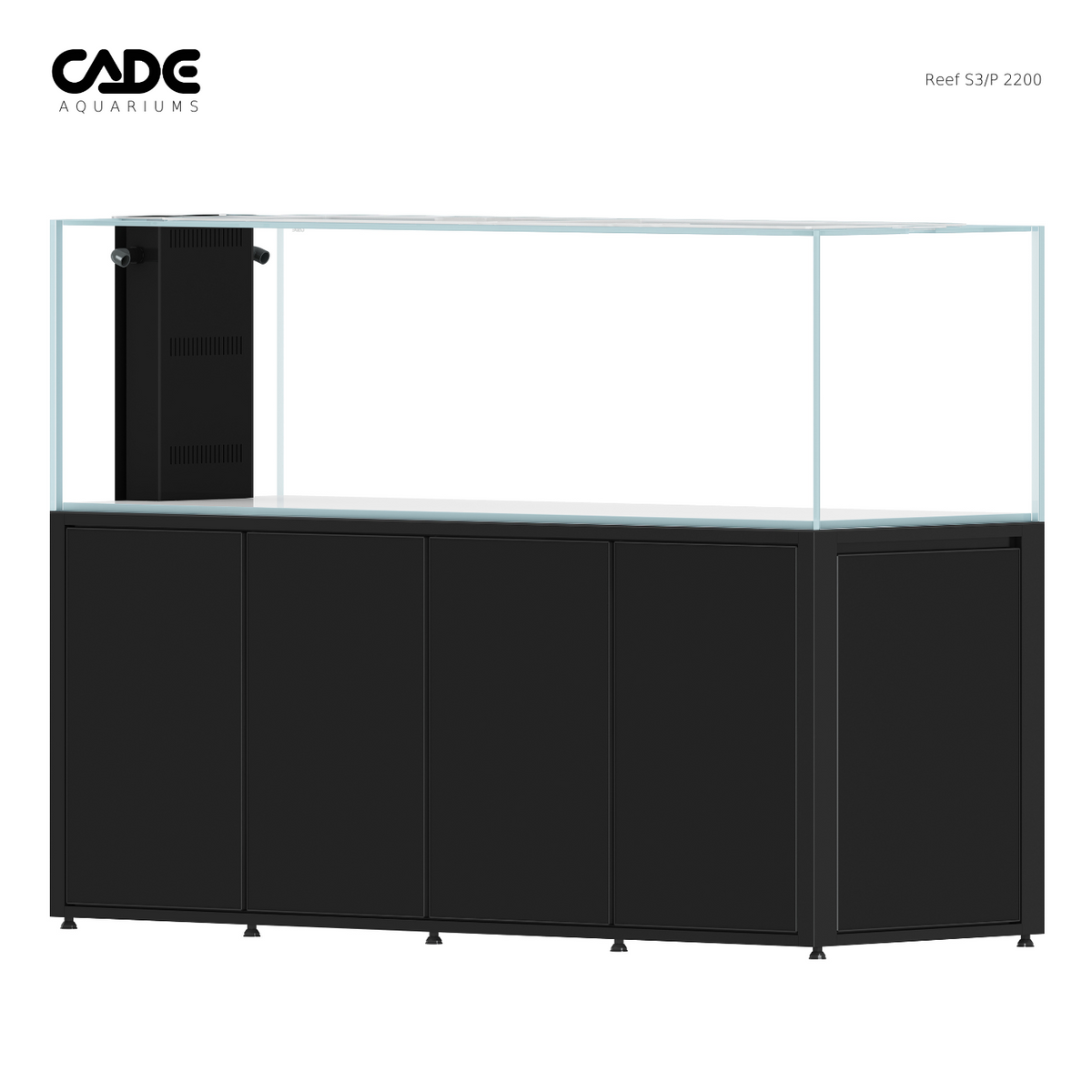

Available in black or white — choose the colour above. Return pump, protein skimmer, lighting and ATO device are not supplied.
