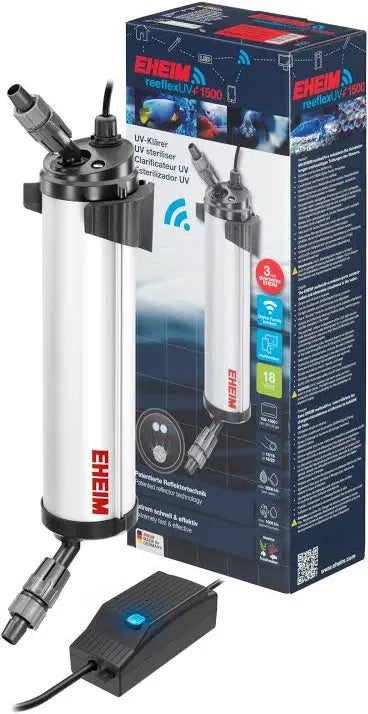

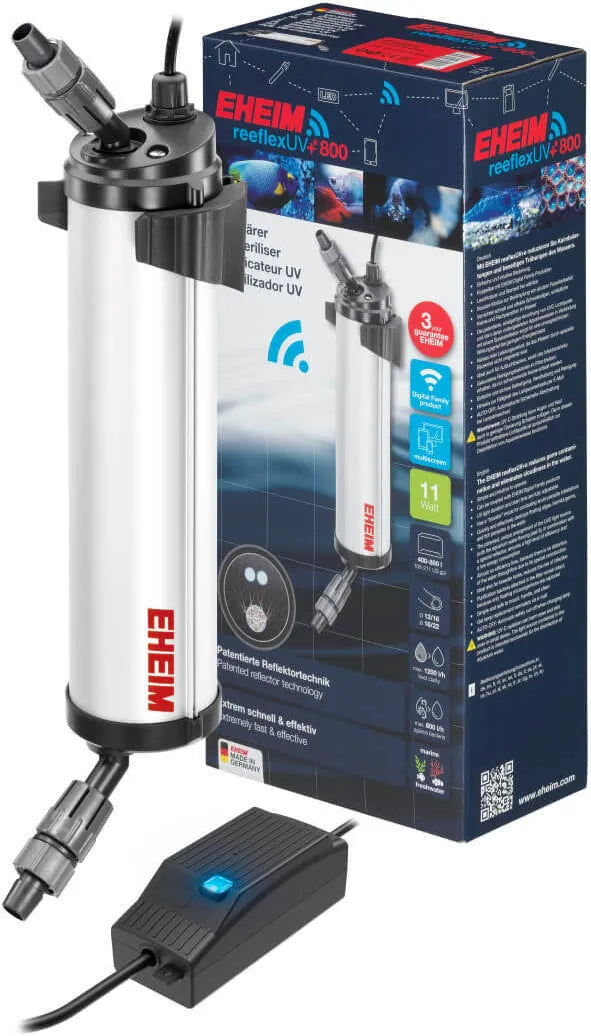

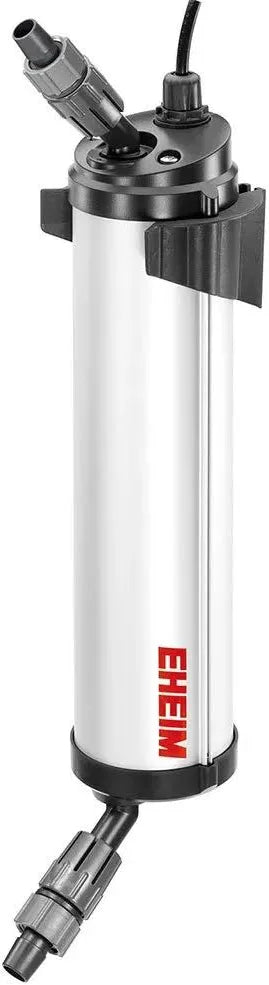

Eheim Reeflex UV+e

Description

With EHEIM reeflexUV+e you reduce or eliminate germ contamination and eliminate turbidity in the water. Now with WiFi controls.

reeflexUV+e is the WiFi-controlled next step of the proven EHEIM UV clarifier reeflexUV. The principle of the patented reflector technology (with significantly increased germicidal UV-C radiation) has remained the same. While in conventional UV clarifiers the water flows past the UV-C burner via detours, in the EHEIM reeflexUV+e it takes a more direct route. This results in no loss of power and saves energy, being twice as efficient. The reeflexUV+e can be coupled with other products in the EHEIM Digital family and can be controlled via WLAN-enabled devices (smartphones, tablets, notebooks etc.). For example, you can select different modes, determine times and pauses and even switch to booster mode in case of a heavy parasite infestation. The reeflexUV+e should be used to support the filter in order to reduce small organisms (germs, algae spores, etc.) in the aquarium.There are 4 models for aquariums from 300 to 2000 litres. As always, this comes with EHEIM’s “Made in Germany” guarantee, ensuring the best standards in manufacturing and materials.
Advantages of the EHEIM reeflexUV+e

Quickly and effectively reduces or eliminates harmful germs (bacteria, fungi, viruses, other pathogens) and infectious swarmers of fish parasites as well as suspended algae in the water
Patented reflector technology: The unique arrangement of the UV-C light source and the aquarium water flowing past it, in conjunction with a special reflector, ensures unparalleled efficiency with a low energy input
Almost no power loss, as the water is not deflected due to the clarifiers innovative design
Excellent results: twice as effective compared to conventional UV clarifiers
Also ideal for rearing tanks, as it reduces the risk of infection
Bound cleaning bacteria in the filter are preserved, as only floating germs are captured
Easy and safe handling and cleaning
AUTO-OFF: Automatic safety shut-off when changing lamps
Easy mounting due to supplied bracket
Variable installation, no defined installation position or flow direction
Can be coupled with other products in the EHEIM Digital family (e.g. synchronisation with the aquarium lighting)
Controlled via WLAN-enabled devices (smartphone, tablet, notebook, etc.)
Easy and intuitive operation
Three different modes: “constant”, “daily cycle”, “smart coupling”
Configurable burning duration, time, pauses, etc.
Booster mode for combating acute parasite infestations
Notification by e-mail when the lamp replacement is due
Made in Germany
3 years warranty
Suitable for both fresh and marine water

Warning: UV-C radiation can cause damage to eyes and skin even in small doses. The light source contained in this product is intended exclusively for disinfecting aquarium water.
Special technology for clear water and healthy fish
In a UV clarifier (also called UV steriliser), the aquarium water is passed in a thin film past a UV-C lamp (burner). The UV-C rays penetrate the water and kill germs, algae spores and other small organisms.

With conventional technology, the water is only irradiated from one side. EHEIM, on the other hand, has installed a reflector so that the radiation is mirrored and penetrates the water from several sides. This results in a considerably higher efficiency with reeflexUV+e. Which uses the patented EHEIM reflector technology.

In addition, the EHEIM reeflexUV+e has no complicated water conduction system. The water is not diverted and flows around the burner without detours. This means that there is no loss of performance.

AUTO-OFF also ensures optimum safety. Since UV-C radiation is harmful to skin and eyes, reeflexUV+e immediately and automatically switches off when the unit is opened.

The EHEIM reeflexUV+e can be coupled with other products in the EHEIM Digital family (e.g. lighting). It is controlled via WLAN-enabled end devices (smartphone, tablet, notebook etc.) Operation is simple and intuitive.

There are three different modes: “constant”, ” daily cycle” and “smart coupling”. Burning duration, time, pauses, etc. can be set individually. There is a booster mode to combat acute parasite infestations. And when a lamp change is due, a message is sent by e-mail.
You should also know that:
Compared to natural waters, the bacterial concentration in the aquarium is relatively high due to the smaller amount of water. It is important to reduce this and bring it to a natural level. However, the aquarium water cannot and should not be completely germ-free.

Only the germs floating freely in the water are captured by the UV clarifier. The bound purification bacteria in the filter (biological filtration), bacteria in the substrate etc. are spared.

Turbidity of the water caused by bacteria or floating algae can be removed effectively by UV clarification. Basically, algae growth is curbed because the spores are killed.

UV clarifiers generally ensure healthier fish, as the risk of infection is reduced. A UV clarifier is particularly recommended for rearing tanks. Dangerous pathogens often settle on eggs or infect young fish that do not yet have sufficient defences.

UV clarification generally does not cause any change in water values.

Eheim Reeflex UV UV Steriliser kills off micro organisms and algae spores

• Fast and effective reduction of micro organisms in the water
• Eliminates turbidity caused by algae or bacteria
• Internally fitted high gloss aluminium reflects the UV-C light and ensures more efficient sterilisation
• Excellent results with low energy consumption (1.8 times more effective than conventional UV-sterilisers)
• No performance loss as, using a special design, the water is not redirected
• Also ideal for breeding tanks as it reduces the risk of infection
• Cleansing bacteria are safely retained in the filter as only floating organisms are captured
• Simple, safe maintenance and cleaning
• AUTO-OFF: automatic safety cut-off when changing lamp
• Easy to attach using the included fixing bracket

reeflexUV is yet another typical innovation from EHEIM: due to a built-in reflector the micro organism killing UV-C radiation is significantly increased and whereas in conventional UV-sterilisers the water is directed via detours past the UV-C burner, in the EHEIM reeflexUV water it takes the direct route. There is no loss of performance, you need less energy and the level of effectiveness is 1.8 times greater.

reeflexUV should only be used in conjunction with the filter, in order to reduce small organisms (microorganisms, algae spores etc.) in the aquarium.

In a UV-steriliser, the aquarium water is directed as a thin film past a UV-C lamp (burner). The UV-C radiation penetrates the water and kills off micro organisms, algae spores and other small organisms.

Using conventional technology the water is only irradiated on one side. EHEIM on the other hand has built in a reflector, via which the reflected radiation penetrates the water from more sides. Thus reeflexUV achieves a significantly higher performance level.

Furthermore, the EHEIM reeflexUV doesn't have a complicated water flow system. The water is not redirected and flows around the burner without detours. So there is no loss of performance.

The AUTO OFF ensures an optimum level of safety. Since UV-C radiation can cause damage to skin and eyes, reeflexUV switches off immediately when the device is opened.

Compared to normal waters the bacterial count in an aquarium is relatively high due to the small amount of water. It is worth reducing this and bringing it back to a normal level. However, the aquarium water should never be completely bacteria free.

Only floating bacteria in the water are captured by the UV-steriliser. Colonised cleaning bacteria in the filter (compare biological filtration) and bacteria in the gravel substrate are spared.

Turbidity in the water, caused by bacteria or floating algae, is removed very efficiently by the UV-sterilisation. Basically-algae growth is curbed, because the spores are killed off.

UV-sterilisers generally ensure healthier fish, because the risk of infection is reduced. A UV-steriliser is especially recommended for breeding tanks, because dangerous pathogens colonise on eggs or infect young livestock, which don’t yet possess enough power of resistance.

UV-sterilisation in general doesn't cause any kind of changes to the water values.

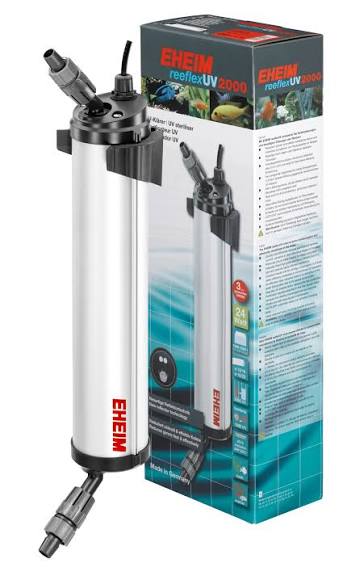

Maximum Water Clarity and Pathogen Control for Extra-Large Aquariums

The EHEIM reeflexUV 2000 is designed for serious aquarists with very large aquarium systems up to 2000 litres. By incorporating a unique internal aluminium reflector, this advanced UV steriliser increases UV-C radiation output by 1.8x for unmatched efficiency. Unlike traditional designs, the water flows directly past the UV-C lamp, minimising energy loss and ensuring maximum contact for effective sterilisation.

Perfect for freshwater or marine setups, especially breeding or heavily stocked tanks where disease prevention and water clarity are vital.

Key Features:

• Targets and neutralises bacteria, algae spores, and parasites

• Suitable for aquariums up to 2000L

• Max flow rate (microorganisms): 1500 L/h

• Max flow rate (water clarity): 3000 L/h

• Built-in aluminium reflector boosts UV-C effectiveness

• AUTO-OFF function ensures safety during maintenance

• 24W power consumption

• Compact, straight-through water flow design

• No fixed installation position required

• 3-year EHEIM manufacturer warranty

What’s Included:

• EHEIM reeflexUV 2000 steriliser

• Pre-installed UV-C lamp

• External ballast with power lead

• Fixing bracket

• 2x hose adapters for 12/16mm and 16/22mm tubing

Technical Specifications:
