[message]Octo Elite Internal Skimmer
Octo Elite Internal Skimmer

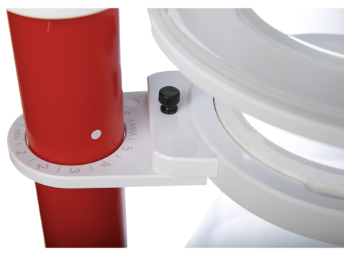

Featuring a small footprint, the OCTO series Elite skimmer (Elite-INT) is an in-sump protein skimmer. Elite-INT further features high-quality cast acrylic and PVC construction, an underwater outflow for even quieter/near to silent operation, easy disassembly for maintenance with its unique “twist and lift” collection cup, a vented valve output with adjustment dial for precision control, a wine bottle shaped body which aids natural stabilisation and concentration of the organic rich foam as it rises and a professional open volute for enhanced performance.
Elite-INT is run by our very own controllable VarioS skimmer pump, which features a pinwheel impeller, a detachable controller, high quality ceramic shaft and bearing to reduce wear and tear, and the latest variable speed flow technology for refined control, enhanced performance, energy-efficiency and safer operations.
Unlike the vast majority of circulation pumps which uses alternating current (AC), our VarioS pump boasts several key advantages over traditional AC pumps, namely, higher energy efficiency, safer operations at a working voltage of 24V and most notably, the variable speed control to adjust the ideal mix of air and water flow into the skimmer.
Enhanced Control
With the VarioS controller, users have control over the flow rates by selecting amongst five preset speed settings; indicated by five lit LEDs. A 15 or 60 minute feed mode can also be engaged or disengaged with the push of a button.
In addition, a rotatable volute allows users to adjust the output orientation horizontally or vertically (up or down), depending on their needs.
Under normal usage, VarioS pump has an expected lifespan/product life expectancy of 10 years.

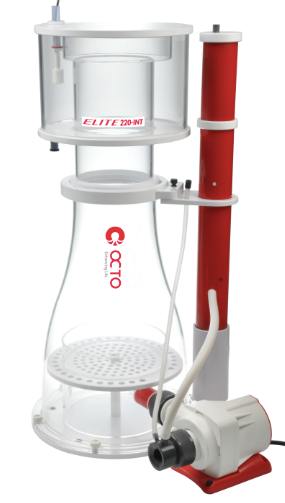

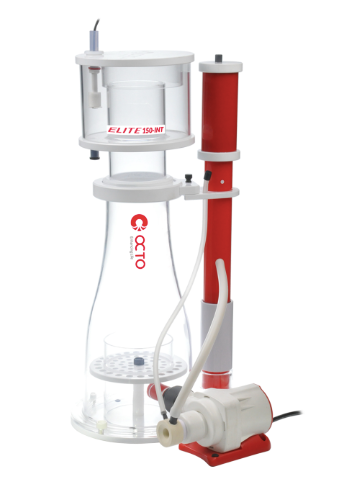

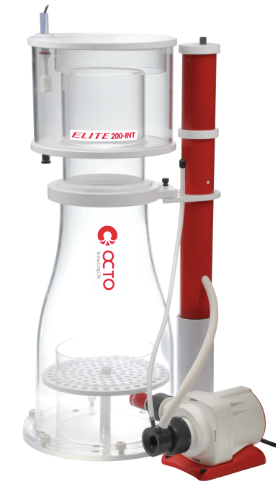

Available in 3 models – Elite 150-INT, Elite 200-INT and Elite 220-INT.
Technical Data
1. Skimmer
Product | Wet/Dry | Pump Power | Cup Diameter | Neck Diameter | Footprint | Height | Output Size | Tank Volume | |||||||
W | mm | inch | mm | inch | mm | inch | mm | inch | L | US Gal | |||||
Elite 150-INT | Wet | 25 | 150 | 5.9 | 80 | 3.2 | 290 | 265 | 11.4 | 10.4 | 525 | 20.70 | ø40mm(1-1/4″) | 800 | 211 |
Elite 200-INT | Wet | 40 | 200 | 7.9 | 120 | 4.7 | 380 | 285 | 15.0 | 11.2 | 590 | 23.20 | ø50mm(1-1/2″) | 1500 | 396 |
Elite 220-INT | Wet | 70 | 220 | 8.7 | 120 | 4.7 | 420 | 310 | 16.5 | 12.2 | 630 | 24.80 | ø50mm(1-1/2″) | 2000 | 528 |
2. Skimmer Pump
Product | Model No. | Wet/Dry | Power | Max Air Intake | Maximum Flow Rate | Connection Size ( outlet) | ||
W | LPH | Gph | LPH | GPH | ||||
Elite 150-INT | VarioS 2-S | Both | 25 | 900 | 238 | 900 | 238 | ø32(1″) |
Elite 200-INT | VarioS 4-S | Both | 40 | 1500 | 396 | 1600 | 422 | ø32(1″) |
Elite 220-INT | VarioS 6-S | Both | 70 | 2400 | 634 | 2000 | 528 | ø40(1-1/4″) |
