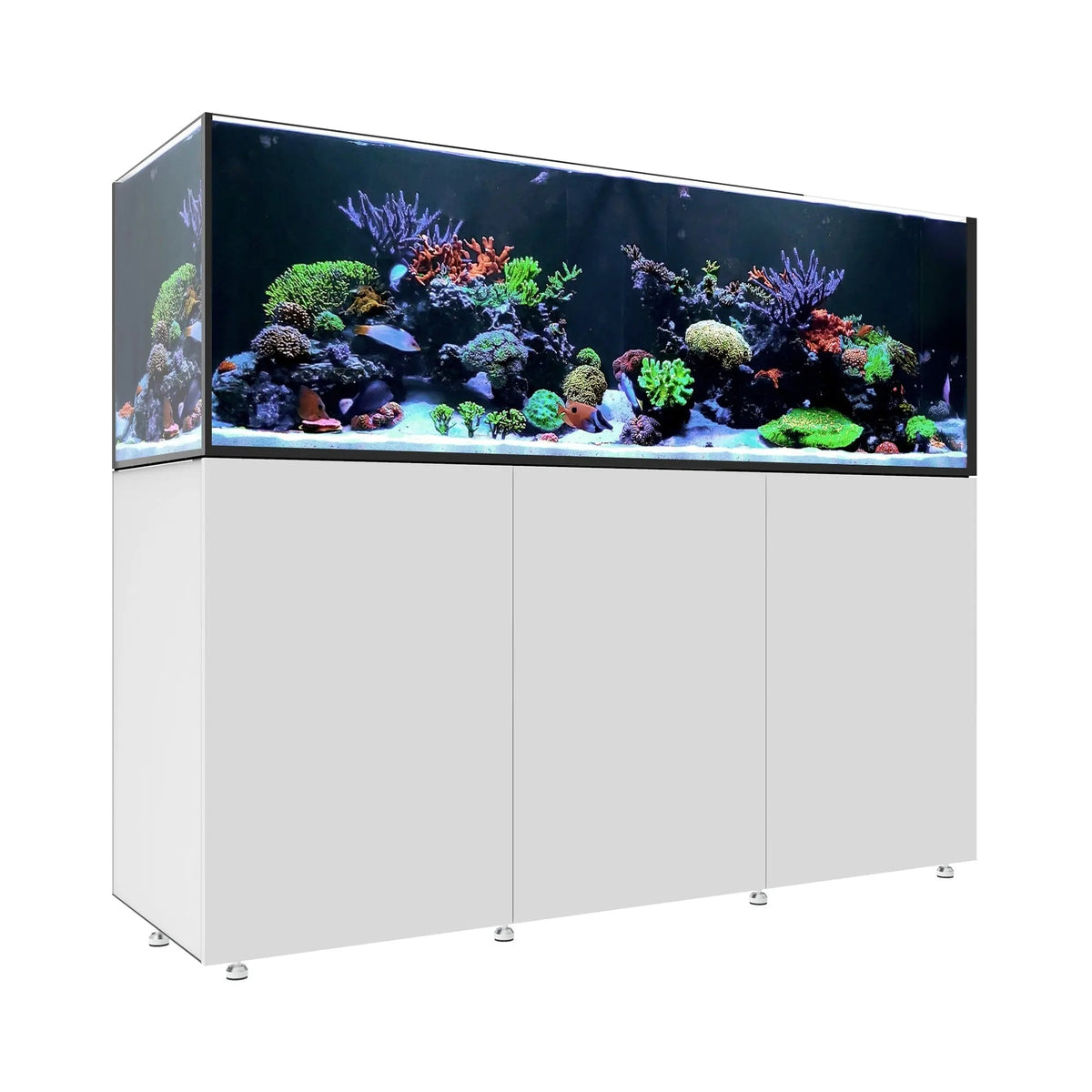

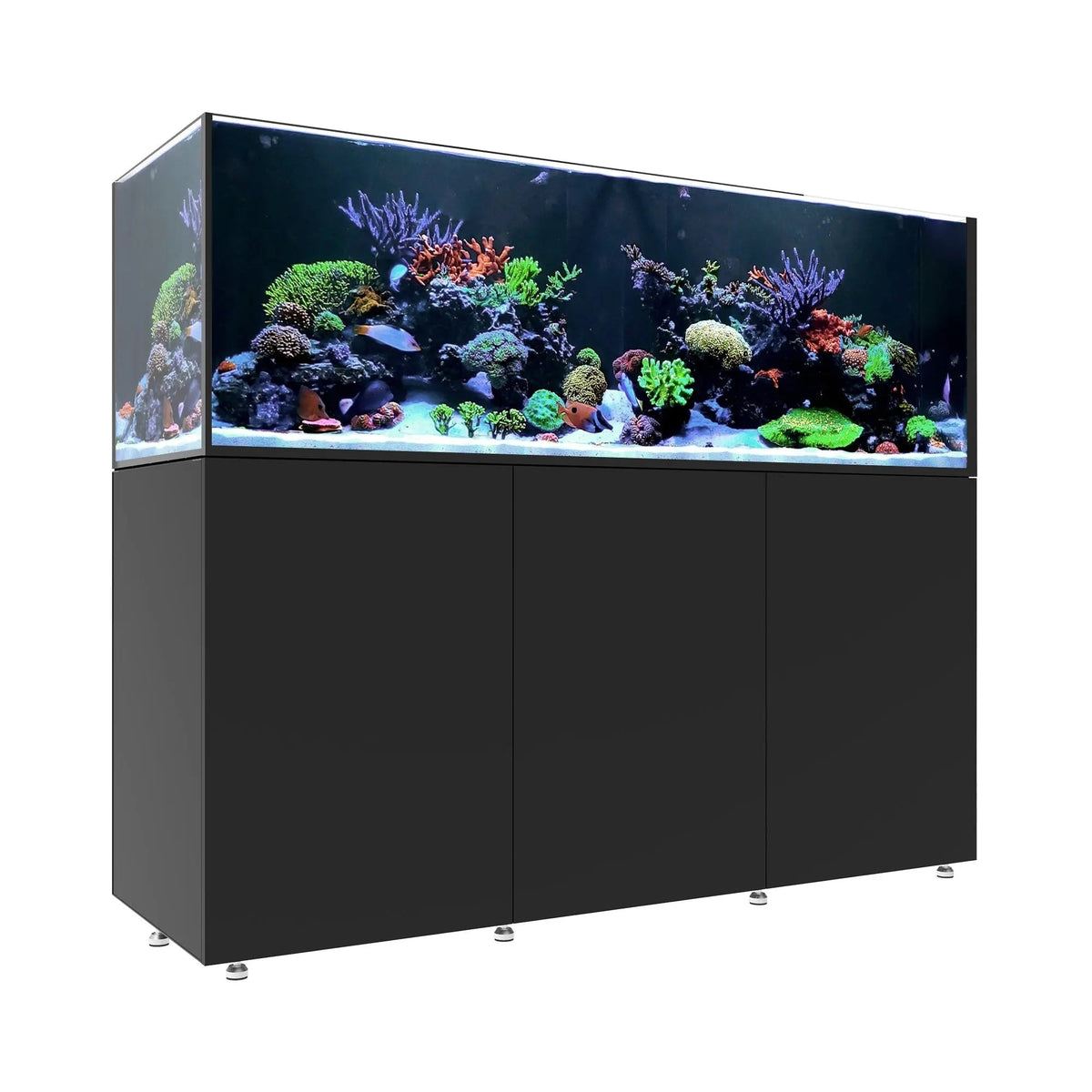

Waterbox Infinia Reef 230.6

The Waterbox Infinia Reef 230.6 is a complete rimless reef system: a 632 L ultra-clear display on Waterbox's Marine-Shield MSII cabinet, with the sump, ATO reservoir, plumbing kit and filter socks in the box. The Reef has a full-height display for mixed reef and SPS set-ups. 875 L of water in the whole system.

Tank

• Ultra-clear low-iron glass on the front and sides (91% light transmittance), rimless
• Tank 1,836 × 643 × 600 mm external, 19 mm glass, 632 L display volume
• Rear overflow with main drain, emergency drain and return built in; roller-filter ready sump

Cabinet

• Marine-Shield MSII 7225 cabinet, 1,836 × 643 × 927 mm: anti-corrosion aluminium framework, aluminium-composite side panels, double-sided PET-laminated 18 mm doors, PVC bottom and back panels
• Delivered assembled; height with the cabinet 1,527 mm
• Black or white

Sump and filtration

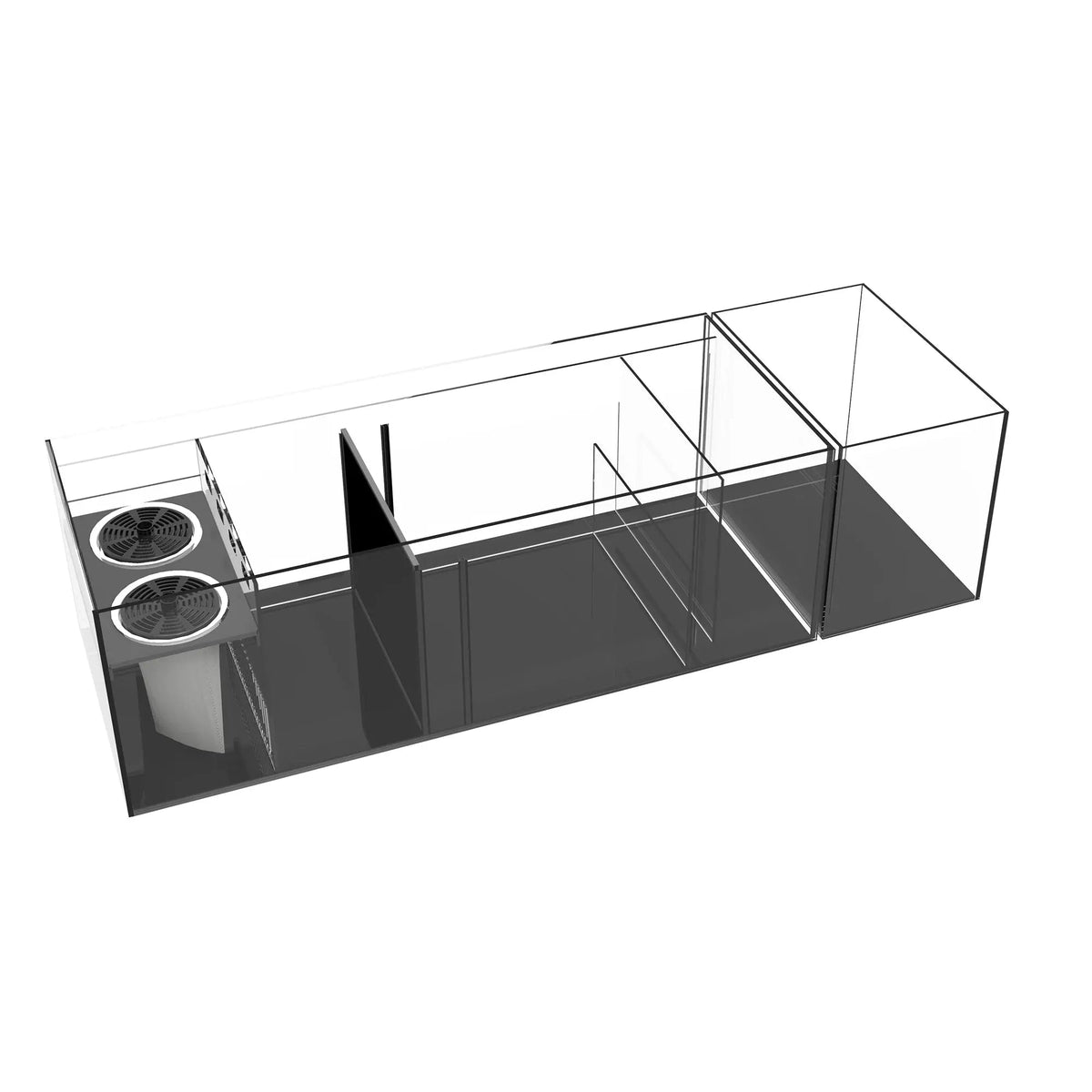

• In-cabinet glass sump 1,143 × 475 × 380 mm, 192 L, with adjustable refugium chamber, skimmer chamber and pump chamber
• Built-in ATO reservoir of 51 L
• Two 180 mm felt filter socks with sock silencers; interchangeable with a roller filter

Plumbing

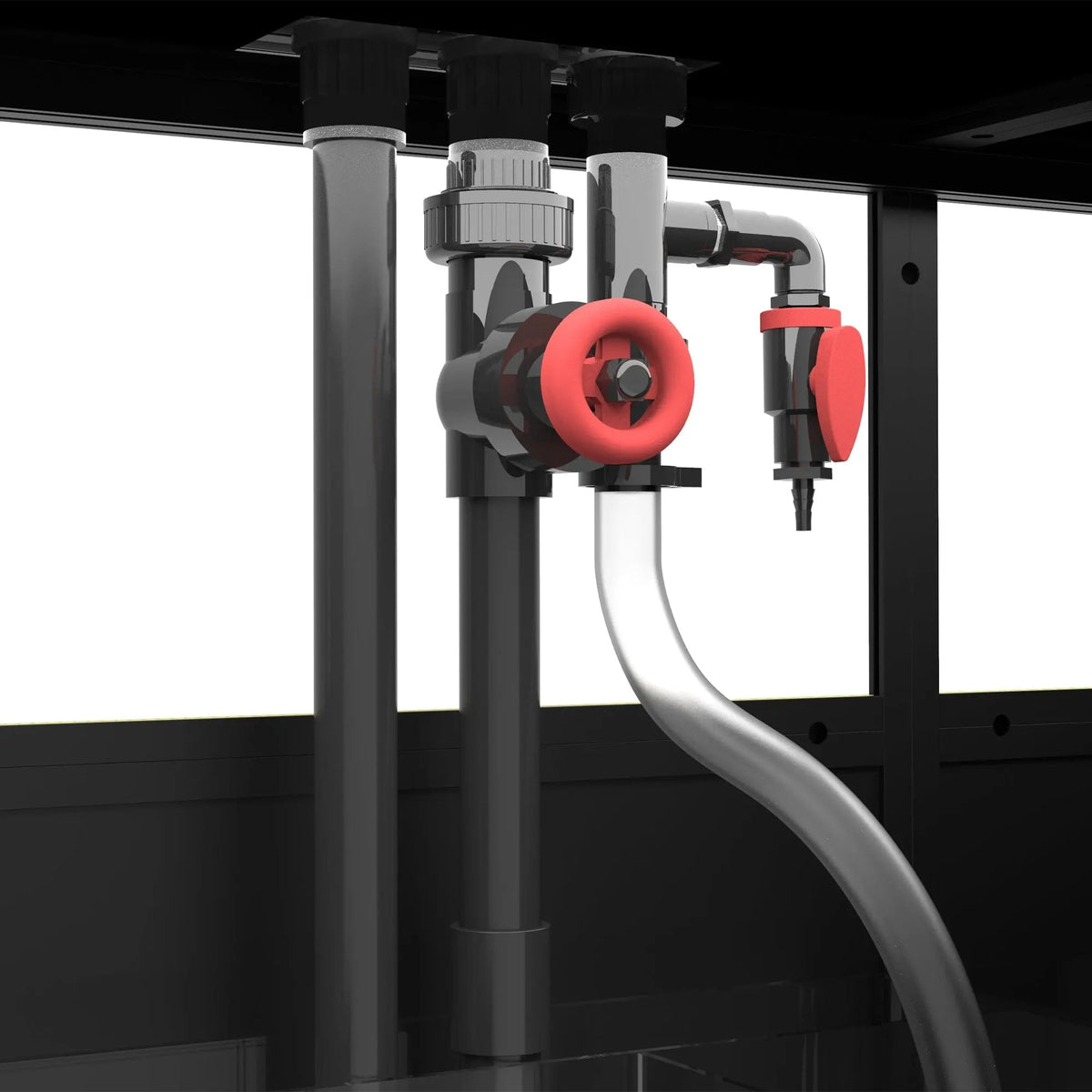

• DN32 main drain and DN32 emergency drain, DN25 return, two M25 directional nozzles
• Manifold 15 kit for reactor feeds

Specifications

Colours and what is not included

Available in black or white — choose the colour above. Not supplied: return pump, protein skimmer, lighting and heater. Rear-mounted overflow with main and emergency drains; the plumbing kit and filter socks are in the box.
