Waterbox Marine X 110.4

The Waterbox Marine X 110.4 is a compact rimless sump system: a 301 L ultra-clear display on a laminated cabinet with the sump, RO reservoir, plumbing kit and filter socks in the box. 418 L in the whole system. A step up from an all-in-one without the footprint of the big reef systems.

Tank

• Ultra-clear low-iron glass on the front and sides (91% light transmittance), rimless
• Tank 1,200 × 500 × 550 mm external, 12 mm glass, 301 L display volume

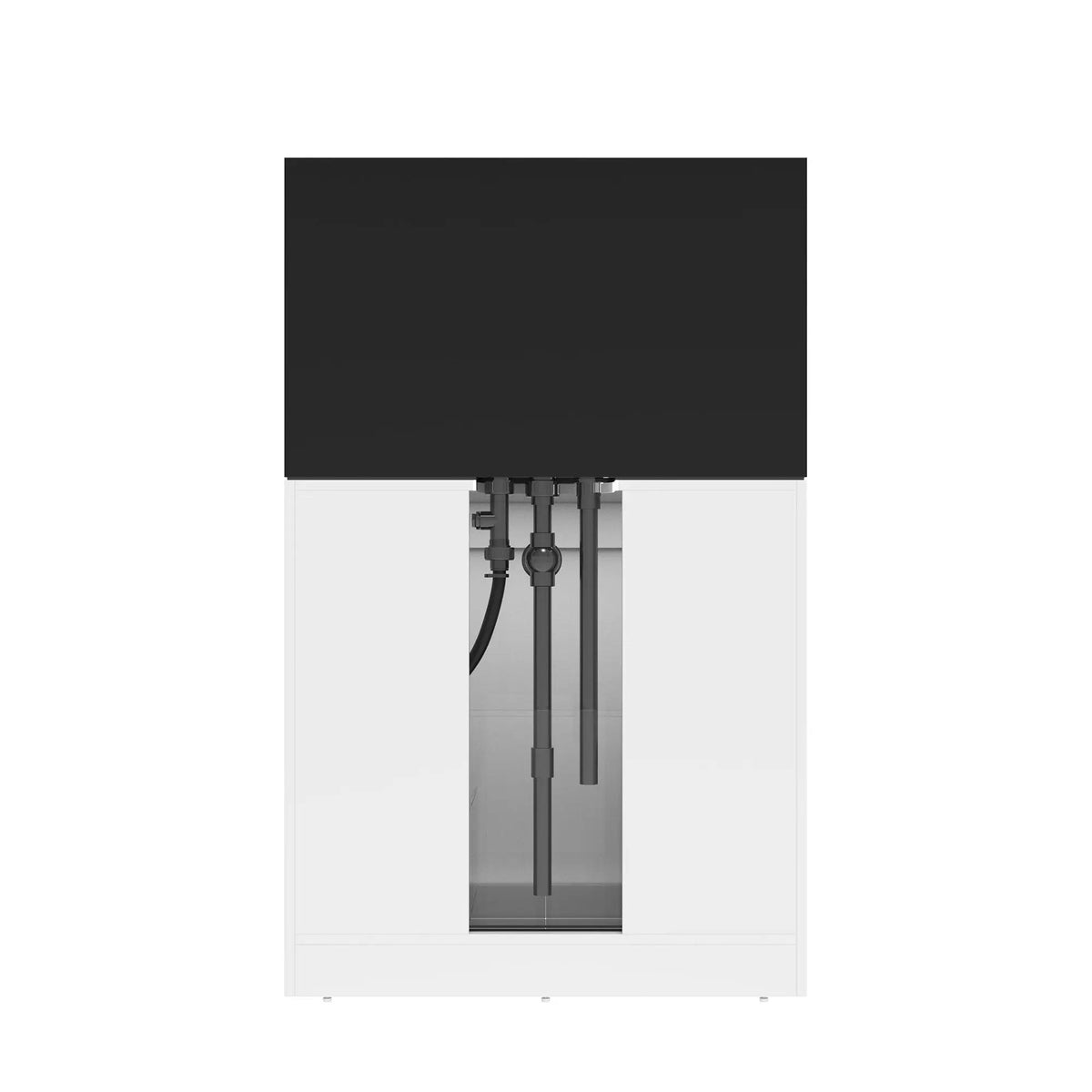

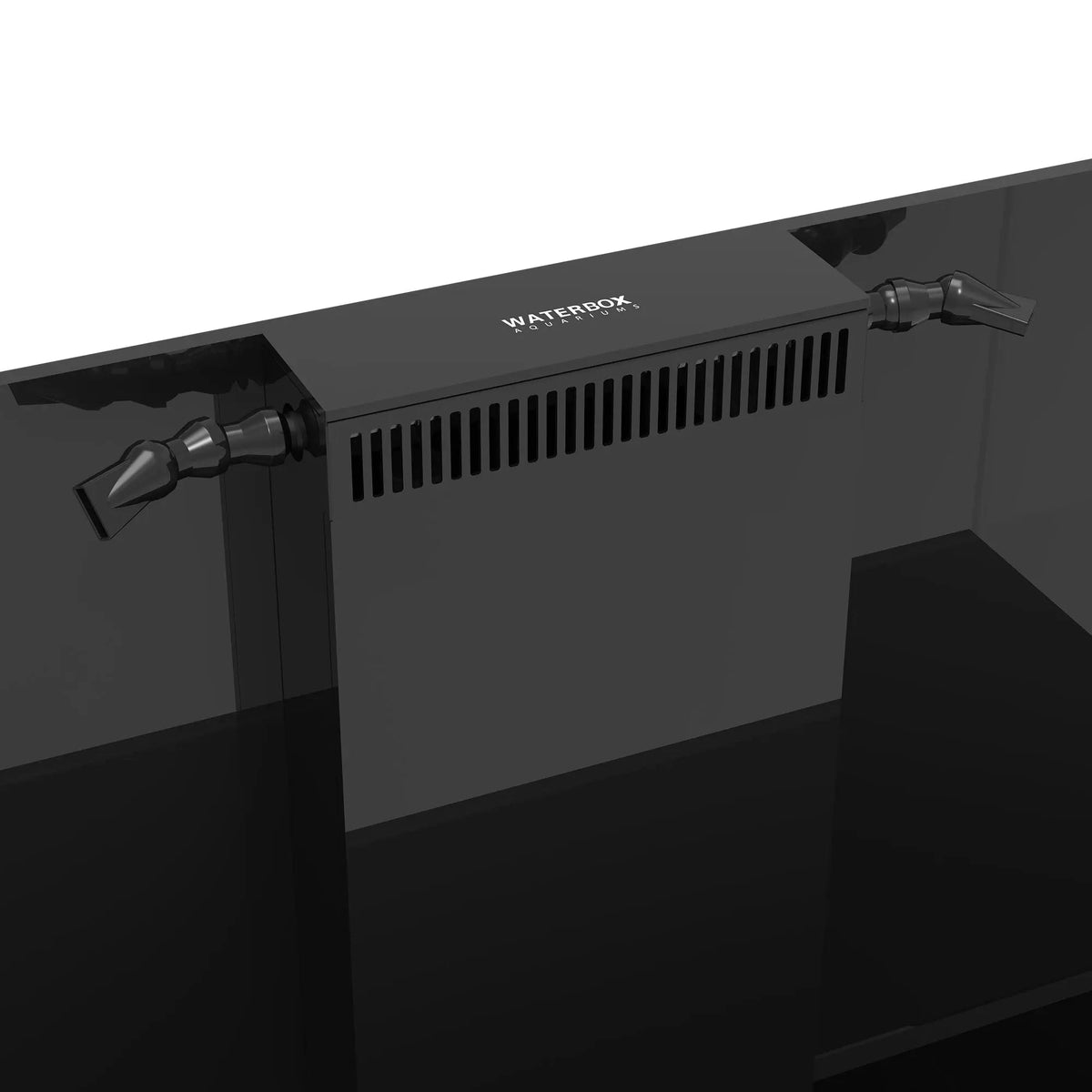

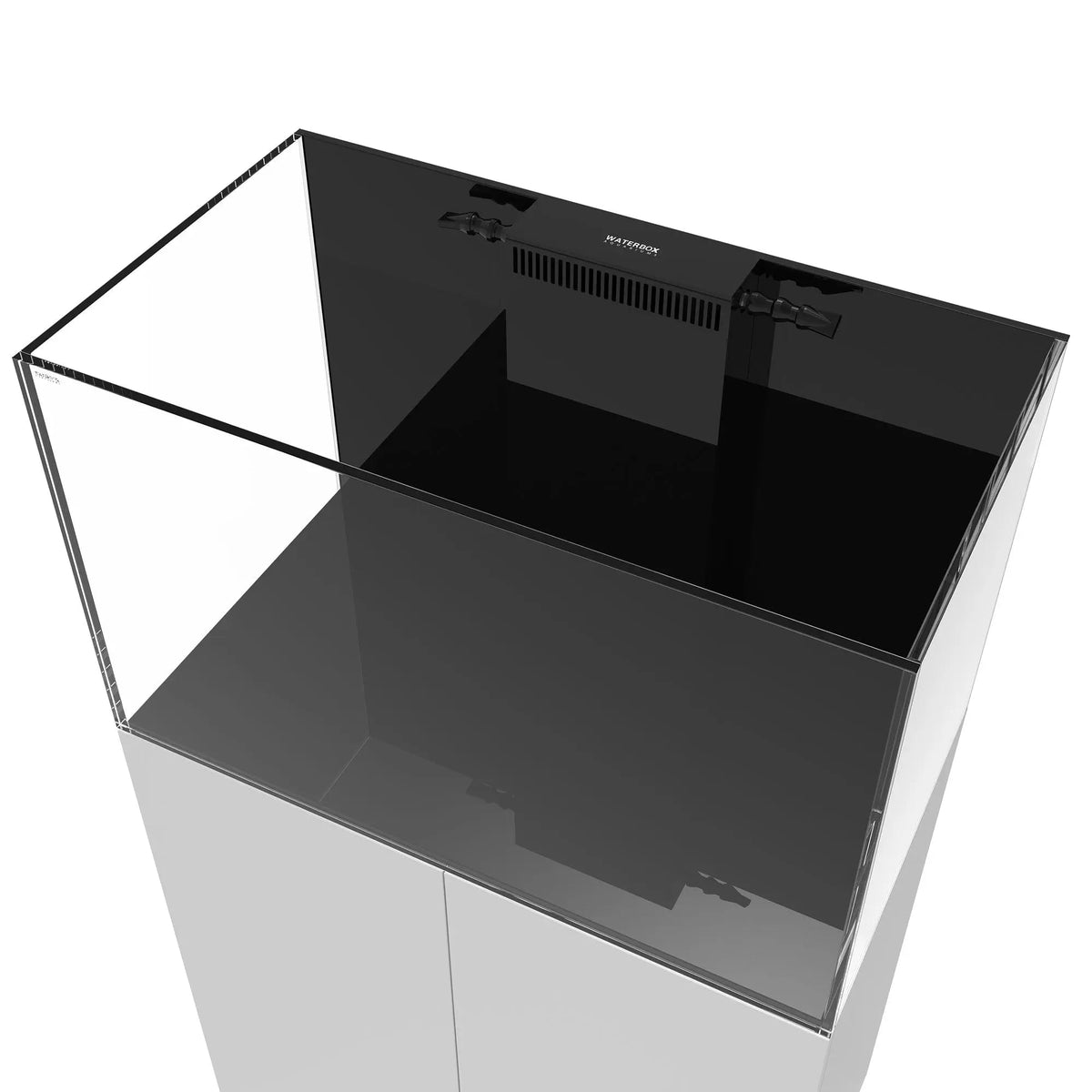

• Rear overflow with main drain, emergency drain and return

Cabinet

• OSB 4820 cabinet, 18 mm PVC-laminated board, delivered assembled
• Height with the cabinet 1,450 mm

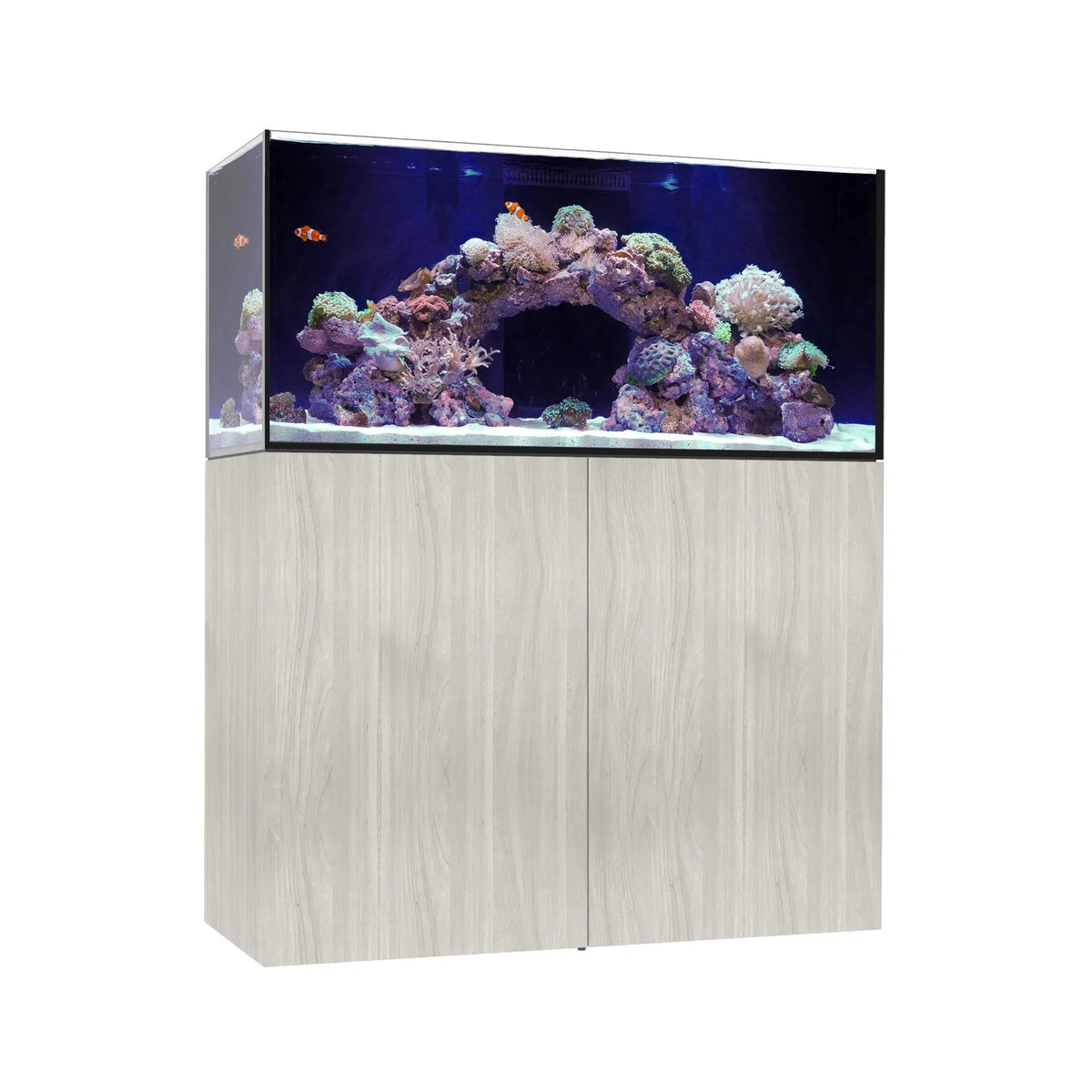

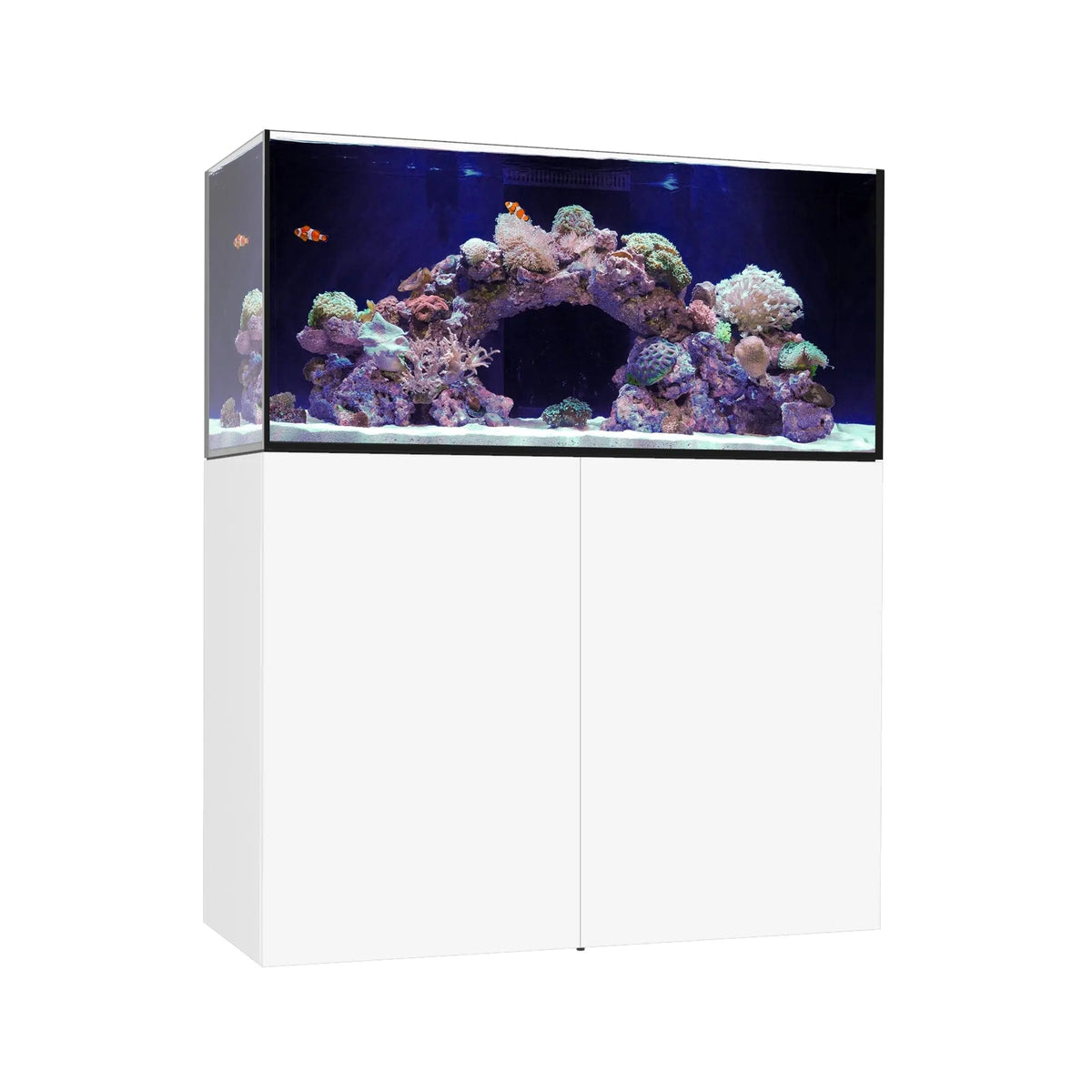

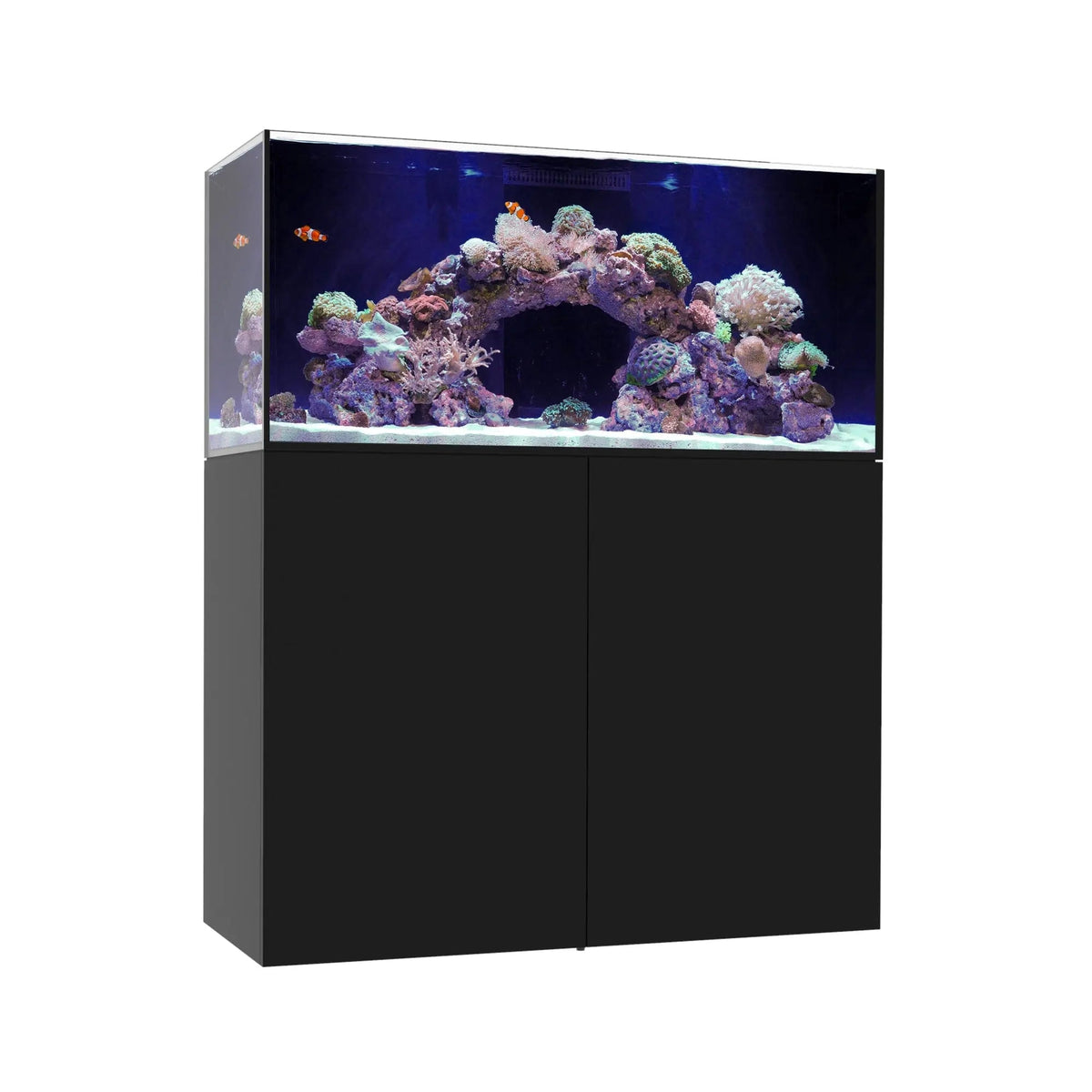

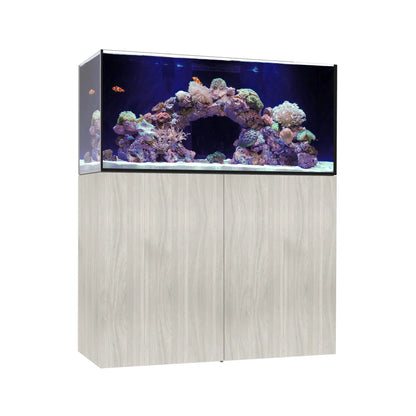

• Black, white or aspen

Sump and filtration

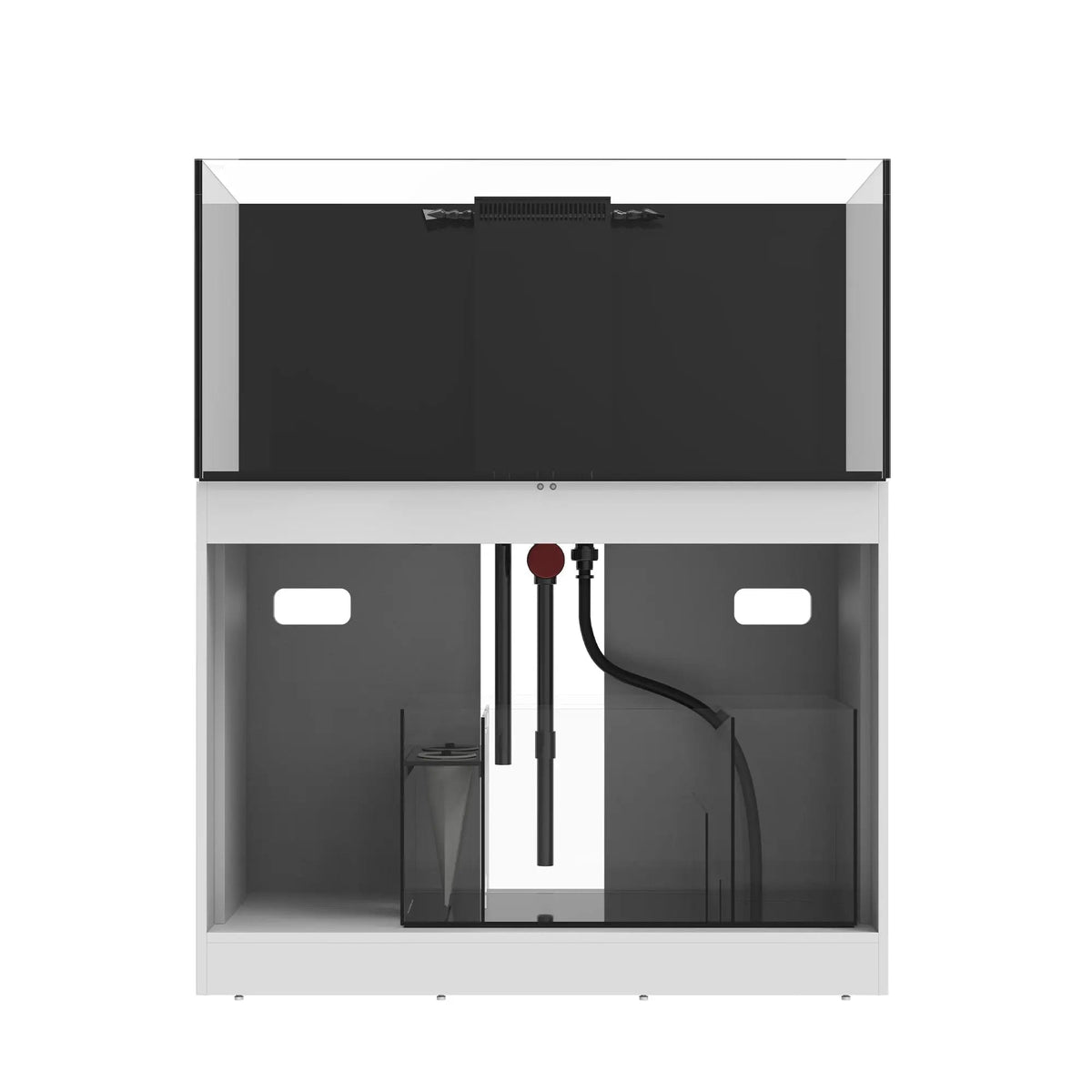

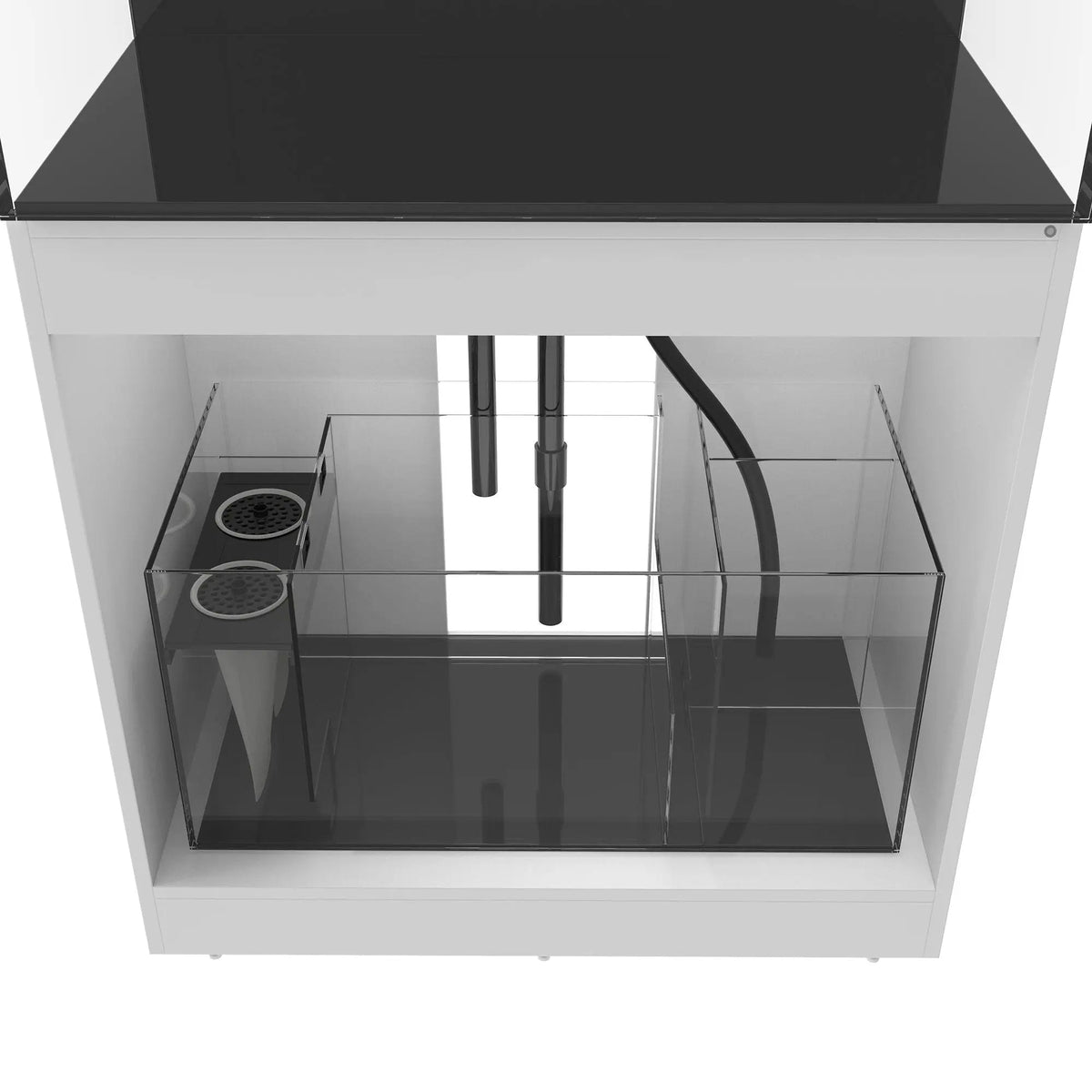

• In-cabinet glass sump 800 × 410 × 380 mm, 117 L, with skimmer and pump chambers
• Built-in RO/ATO reservoir of 22.3 L
• Two 105 mm felt filter socks with silencers; interchangeable with a roller filter

Plumbing

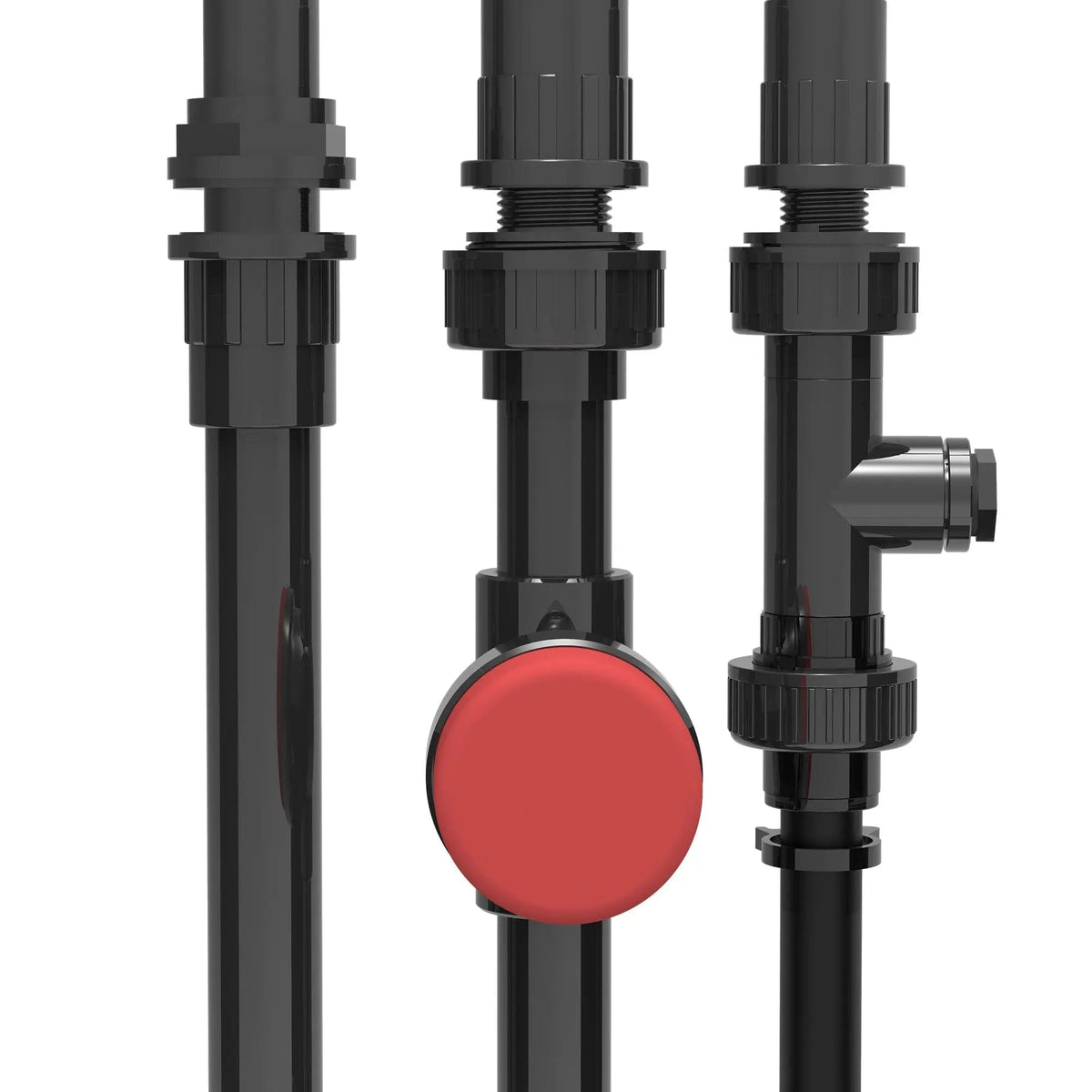

• DN25 main drain, DN25 emergency drain, DN20 return, two M20 directional nozzles

Specifications

Colours and what is not included

Available in black, white or aspen — choose the colour above. Not supplied: return pump, protein skimmer, lighting and heater. Rear-mounted overflow with main and emergency drains; the plumbing kit and filter socks are in the box.
